Custom RMG Crane Manufacturer | 40-50t Rail-Mounted Gantry Crane for Port

China RMG Container Crane Suppliers

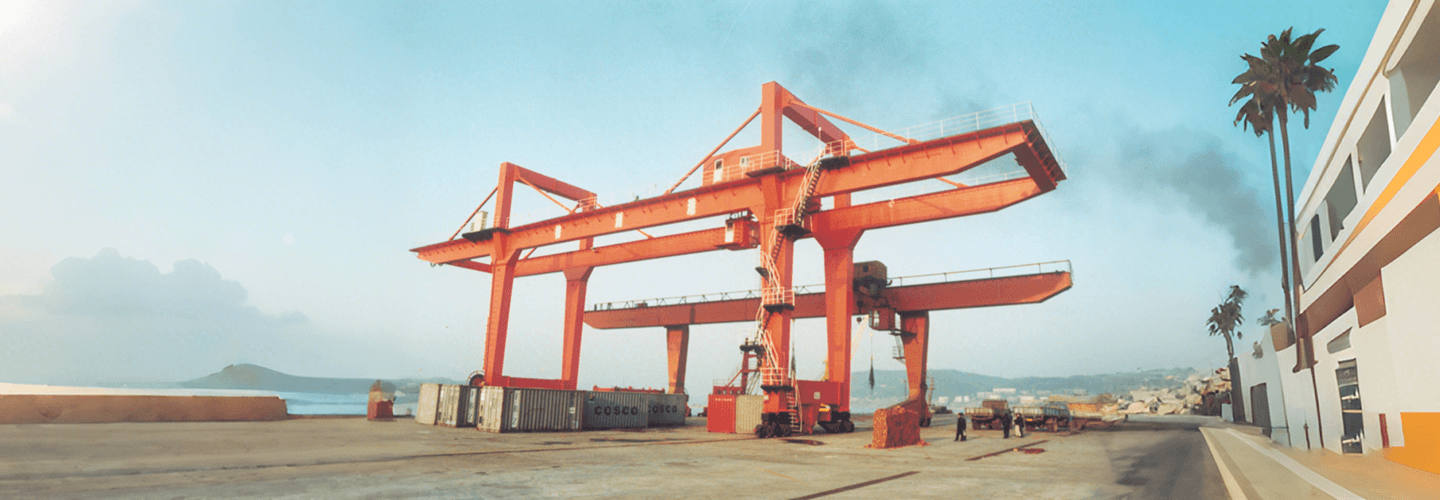

What is an RMG Crane?

The RMG Crane (rail-mounted container gantry crane) is a highly efficient lifting device specially designed for container yards and is suitable for use in ports, logistics centers and other places. Its orbital design ensures stable operation and is particularly suitable for efficient container stacking and handling within a fixed area.

The lifting capacity of RMG cranes can be customized according to requirements, typically ranging from 30 tons to 50 tons, meeting the handling needs of various containers. It features a high lifting height and span, supports the stacking of multiple layers of containers, and is widely applicable for efficient operations in container yards. Electric or diesel drive can be selected according to the site conditions. The electric version offers lower operating costs and environmental advantages.

Reliable RMG Crane Manufacturer

Customized Drawing

Specifications

Security

Performance

Customized Drawing

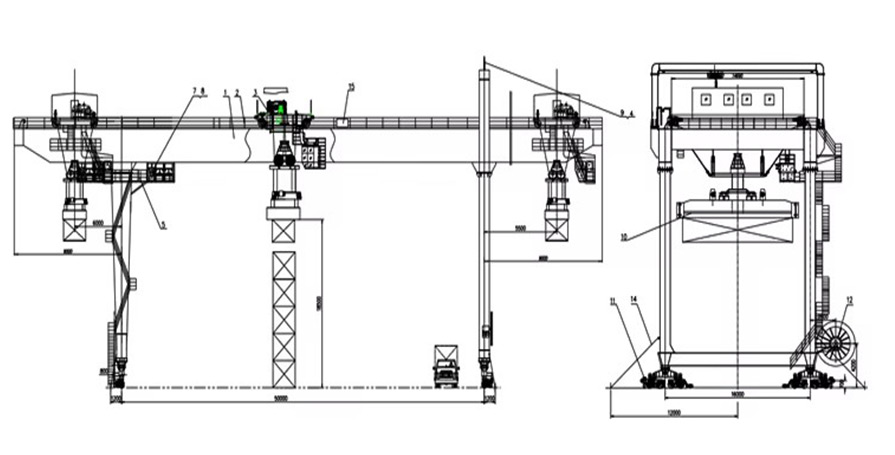

Free Customized RMG Crane Drawing:

Specifications

The main technical specifications of the RMG Crane are as following:

Lifting Capacity (t)		10	16	20/10	32/10	36/16	50/10
Span (m)		18~35	18~30	18~35	22	22~35	35
Lifting Height (m)	Main Hook	11.5	10.5, 12	10.5	11.5	11.5	12
Lifting Height (m)	Auxiliary Hook	/	/	11	12	12	13
Speed (m/min)	Main Hook	8.5	7.9	7.2	7.5	7.8	6
	Auxiliary Hook	/	/	10.4	10.4	10.5	10.4
	Trolley Travelling	43.8	44.5	44.5	41.9	41.9	38.13
Work Duty		A5
Power Source		Three-phase AC. 127~480V 50/60Hz

Note: The above data is only for reference. The RMG Crane can be customized based on customer requirements, such as lifting capacity, span and lifting height, etc.

Multiple Protection Safety Devices

Overload Protection Device

Limit Switch

Emergency Stop Button

Anti-collision System

Braking System

Lighting System

Electric Protection System

Anti-tilt Alarm Device

Product Performance Advantage

Efficient Container Handling: Support rapid loading and unloading operations to enhance the working efficiency of ports and storage yards.

Strong Lifting Capacity: Handle container loads of various weights and meet different operational requirements.

Stable Operation: Track drive system provides stable horizontal and vertical movement, ensuring smooth operation and reducing vibration and shock.

High Durability: Made of high-strength steel and durable components, withstand long-term high-intensity operations.

Power System: Three drive options are available: electric, diesel and hybrid.

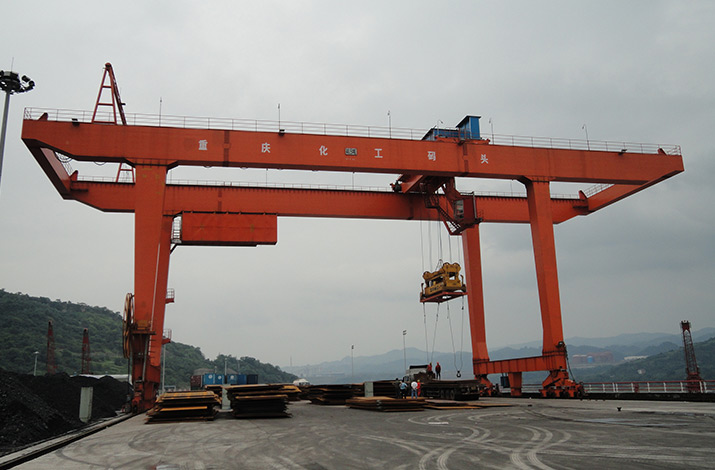

Feature

Portal Structure Design:

Adopt a gantry crane structure, featuring a large span and height, and can cover a wide area.

Track Drive System:

The track system can provide more stable and smooth operation for precise movement.

All-round Operability:

Support various actions such as lifting, lowering, and horizontal movement.

High Security:

Sturdy structure, equipped with multiple safety protection devices, such as overload protection, limit switch, etc.

Flexible Adaptability:

Customized based on different working environments, including factors such as climate, site, and type of container.

Main Components of RMG Gantry Crane

The components of RMG Crane work in coordination to ensure the efficient and safe operation of the equipment. The Rail-Mounted Container Gantry Crane (RMG Crane) mainly consists of the following key components:

Main Beam

Composed of steel structures, it supports the entire weight of the crane, ensuring its stability and load-bearing capacity.

Crane Boom

It is used for hoisting containers and lifting them from the ground to the required height through the lifting device.

Hoisting Mechanism

Including electric motors, reducers, steel wire ropes and pulleys, etc., it is responsible for the lifting and lowering operations of containers.

Travelling System

It includes tracks, wheels and drive units, enabling the crane to run along fixed tracks.

Electrical Control System

Be responsible for the control of the entire equipment, including lifting, traveling, rotating and other functions, to ensure safe and smooth operation.

Operating Platform and Cab

Provide operators with a comfortable working environment, integrate all control devices and monitoring systems to ensure efficient and safe operation.

Anti-collision System

It is used to avoid collisions with other equipment or obstacles and ensure safety during the operation process.

Spreader and Steel Wire Rope

The wear and strength of the steel wire rope used for grasping and hoisting containers need to be inspected regularly to ensure its safety.

Battery System (Optional)

For some rail-mounted container gantry cranes, battery systems are equipped to provide energy support, especially for electric drive modes.

Shock Absorption System

It is used to reduce the vibration generated by the equipment during operation and hoisting, and improve the stability of the equipment.

Application

Port Container Terminal

Container Yard

Logistics Park and Freight Station

Inland Container Transfer Station

International and Domestic Logistics Transportation

Storage and Transportation of Bulk Commodities

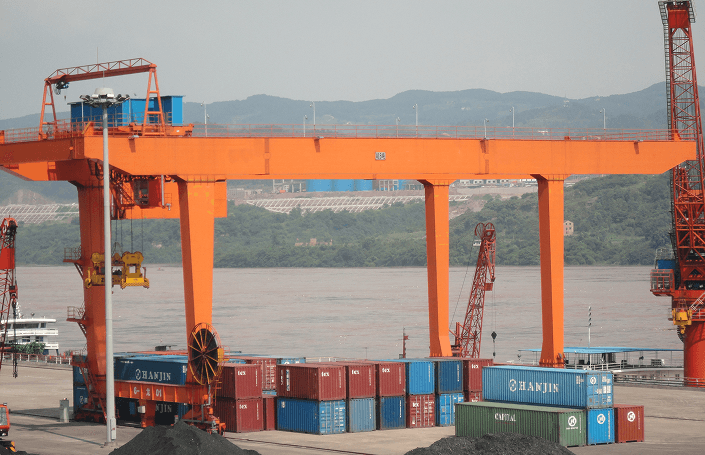

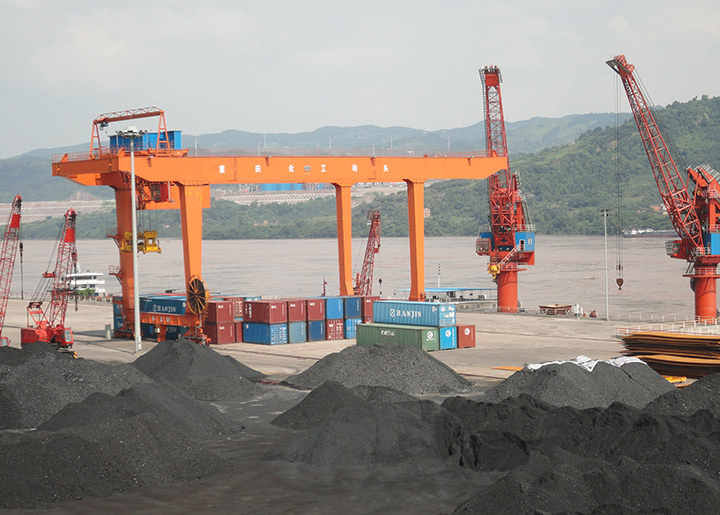

Port Container Terminal

The most common application field of RMG cranes is container terminals in ports. It is used to load and unload containers between the wharf and ships, especially when handling large cargo ships. The RMG Crane can efficiently complete the container handling tasks, greatly improving the operational efficiency of the port.

Chat Now

Container Yard

RMG Cranes are also widely used in container yards, responsible for the stacking, handling and dismantling of containers. In container yards, it can effectively manage the stacking of containers, optimize space utilization, and conduct rapid and precise container scheduling.

Chat Now

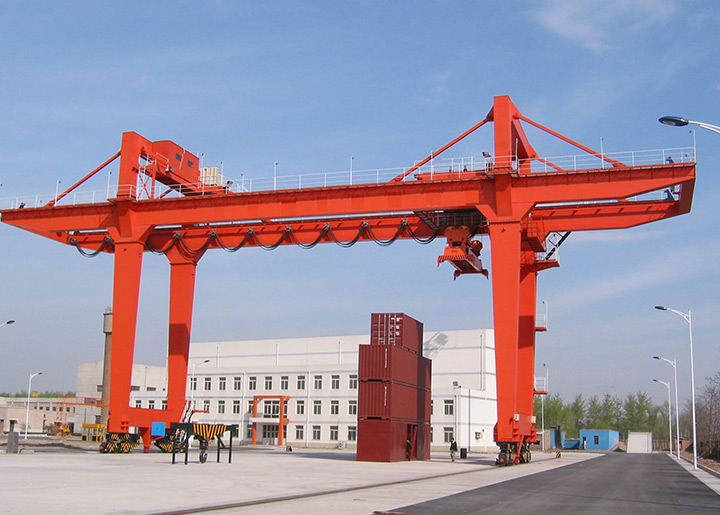

Logistics Park and Freight Station

In large logistics parks and freight stations, RMG cranes are used for the handling of containers and goods, especially in multimodal transport systems, playing a role in connecting different modes of transportation. For instance, it can quickly transfer containers that have arrived by rail or road to the storage yard or terminal for the next stage of transportation.

Chat Now

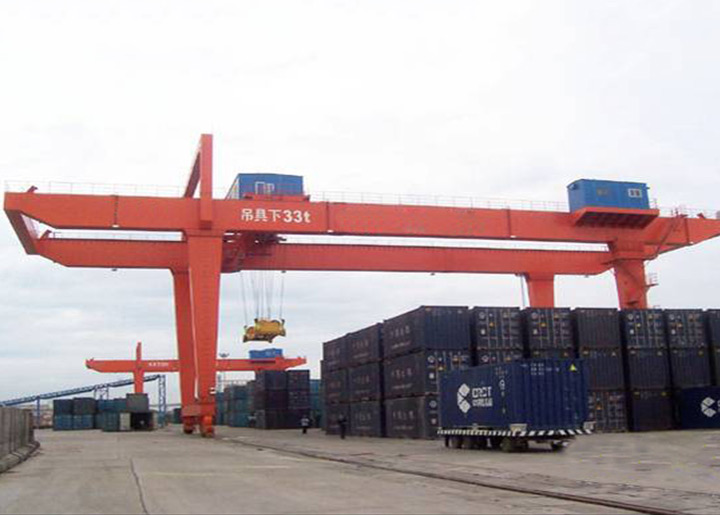

Inland Container Transfer Station

In addition to seaports, RMG cranes can also be used in inland container transfer stations, especially in coastal cities or important inland transportation hubs. The main task here is to transfer containers from railway or road transportation to the yard for distribution and rescheduling.

Chat Now

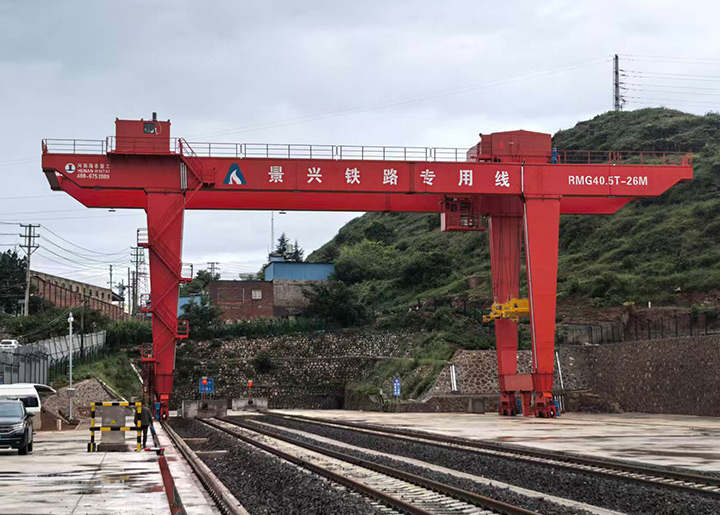

International and Domestic Logistics Transportation

In cross-border and domestic logistics transportation, RMG cranes, as loading and unloading equipment, not only play a key role in ports but also play an important role in logistics distribution centers, railway container stations and other places. It can efficiently handle and transfer containers according to their types, sizes and weight requirements.

Chat Now

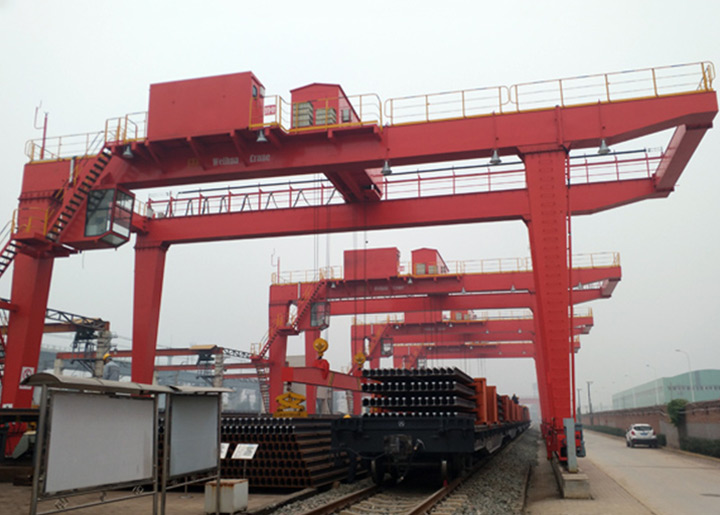

Storage and Transportation of Bulk Commodities

In some ports involving bulk commodities (such as coal, ore, fertilizer, etc.), RMG cranes can be used for the handling of bulk commodities. Although these items are not transported by containers, RMG cranes can also be used for loading and unloading goods in these environments.

Chat Now

Advantage

Key Advantages of Haitai Crane

Haitai Crane is committed to one-stop product supply of travel lift, marine crane, straddle carrier and gantry crane, providing the most suitable and cost-effective lifting solutions for global customer.

Personalized Customized Design

RMG Cranes can be tailored to accommodate vessels of various tonnages, shapes, and sizes, fulfilling specific needs and requirements.

Factory Price

Factory direct economical price, no middleman difference to help you minimize costs.

Quality Control and Supervision System

Establish a quality inspection department and supervision mechanism, including raw material testing, supplier certification testing, production personnel skills assessment, production process control systems, and an after-sales service feedback system to create a complete quality control loop. We integrate internal and third-party supervision to enhance the effectiveness of our oversight mechanism. Additionally, we invite customers to visit and monitor the site.

One-Stop Service System

Pre-sale: After receiving your inquiry, we will promptly respond to your inquiries and provide a timely quotation.
On-sale: We'll keep track of the details such as design and production and other aspects.
After-sale: We will arrange professional engineers to guide the installation through online and offline ways. And regular visits to solve relevant problems timely.

Certifications

At present, we have more than 30 patents, and we obtain quality, environment, safety certification and other certifications.
GB/T19001-2016/ISO9001:2015, GB/T24001-2016/ISO14001:2015, GB/T45001-2020/ISO45001:2018, ESC, CE, CCS, ABS, BV, RINA and so on.

Rich Experience and Multiple Project Casess

Haitai Crane is a professional RMG Crane manufacturer, and has a strong research team, more than 20 senior engineering and technical personnel, more than 400 employees. We have 13 years of production experience, export to more than 40 countries and a large number of project cases for reference.

Maintenance Tips for RMG Container Gantry Crane

Through maintenance and upkeep measures, the service life of rail-mounted container gantry cranes can be prolonged, and their safety and reliability can be enhanced. The maintenance and upkeep of rail-mounted container gantry cranes (RMGC) mainly include the following aspects:

Regular Inspection

Regularly inspect the structure, welding parts and tracks of the crane to ensure there are no cracks, deformations or damages.

Lubrication System

Regularly lubricate the moving parts of the crane (such as the hoist and traveling mechanism) to ensure smooth movement and reduce wear.

Electrical System

Inspect the connections, circuits and control systems of electrical equipment to ensure there are no short circuits, poor contacts or faults.

Braking System

Regularly check the sensitivity and braking force of the braking device to ensure its normal operation.

Track Maintenance

Regularly clear debris from the tracks, check if the tracks are flat and free of cracks to prevent smooth movement.

Anti-corrosion Protection

Anti-corrosion treatment is carried out on the exposed metal parts of the crane, especially when it is used at sea or in a humid environment, to prevent rusting.

Load Testing

Regularly conduct load tests to confirm the stability and safety of the crane under the maximum load.

Customer Guidance

Buyer's Guide for RMG Crane

When choosing the right RMG Crane (rail-mounted container gantry crane), several key factors need to be considered:

Operational Requirements

Understand the specific working environment, such as the scale of the container terminal, transportation volume and operational requirements.

Lifting Capacity

Select the appropriate lifting capacity based on the weight and size of the container to be moved.

Span and Lifting Height

Ensure that the span and lifting height of the crane can meet the requirements of transporting containers, especially for stacking high-rise containers and handling large containers.

Track Length and Position

According to the length of the wharf, select the appropriate track layout and crane length to ensure that the crane can cover the entire operation area.

Drive System and Stability

Consider the drive mode (electric or diesel), as well as the stability and wind resistance of the crane to cope with different working environments and climatic conditions.

Maintenance and Service Support

Choose a brand with good after-sales service and technical support to ensure the long-term stable operation of the equipment.

FAQ

What information is required to get a quote from RMG Crane?

Our RMG cranes are customized, so you should provide the following information:
a.Lifting Height
b.Span
c.Lifting Height
d.Track Length and Layout
e.Power Supply

What is the maintenance cost of RMG Crane?

The maintenance cost of RMG cranes depends on their usage frequency, operating environment and the quality of maintenance. Regular inspection, lubrication, and component replacement are common maintenance tasks. The design and brand of the equipment can also affect the complexity and cost of maintenance.

Which working environments is the RMG Crane suitable for?

The RMG Crane can adapt to various working environments, including high temperatures, cold conditions, marine environments and areas with strong wind speeds. Most RMG cranes have functions such as wind resistance and salt spray corrosion resistance, but in harsh environments, customized designs may be required based on actual conditions.

How to guarantee the operation safety of RMG Crane?

The RMG Crane was designed with multiple safety features in mind, such as an emergency stop button, overload protection. The combination of operator training and the safety functions of the equipment can ensure the high safety of the crane.

Do you provide CE and other certificates?

Yes, we can provide CE and other certifications.

How long is your warranty?

12 months from the B/L date.
Within 12 months warranty period: free parts provided (excludes man-made damage)

How long is the delivery time?

Around 80 working days for the general solution.

Do you provide the site installation and commissioning service?

If you need, our engineer can go to your site to guide your installation & commissioning. This part cost is excluded in our equipment offer.
