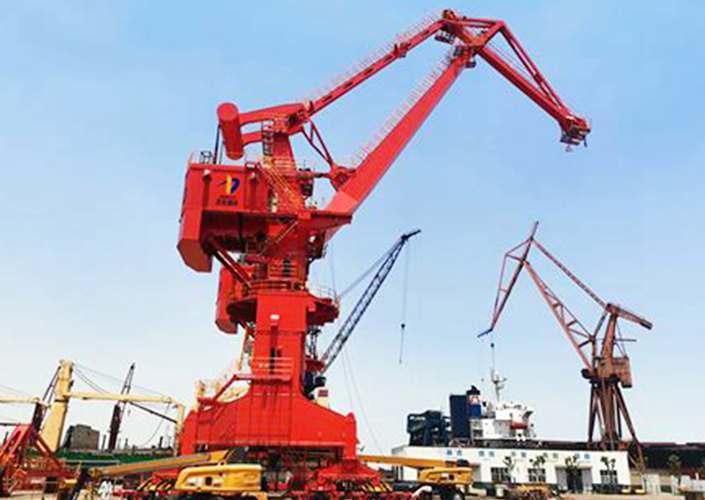

Four-Link Portal Crane is a more sophisticated design that incorporates four linkages to support horizontal girder or jib of the portal boom crane. The portal slewing crane has a portal frame structure and its primary advantage lies in the four-link mechanism, which provides greater stability, load distribution and lifting precision. This portal boom crane is often used for very heavy-duty lifting applications in ports, construction, and industrial facilities.
At our portal crane factory, we are committed to provide high-quality lifting equipment around the world. With a four-link design, our portal slewing crane can offer excellent stability, strong load capacity and flexible handling, ensuring precision, efficiency and safety in every lift. From container handling to heavy cargo transportation, we offer customized solutions to help you increase efficiency and reduce costs.

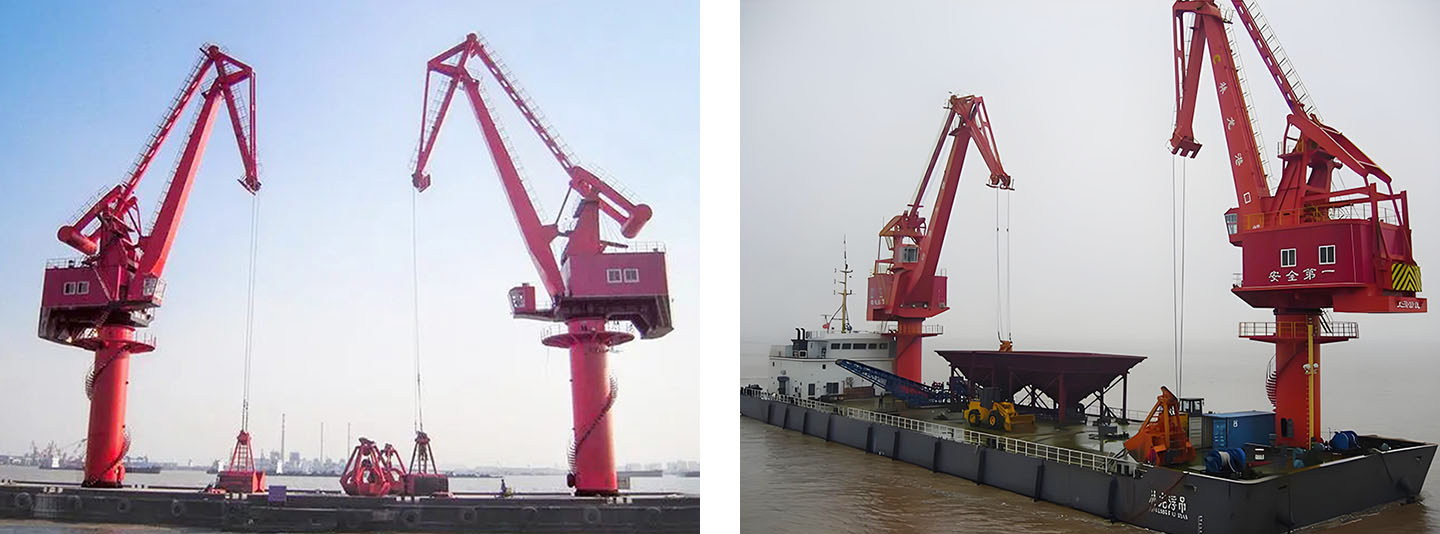

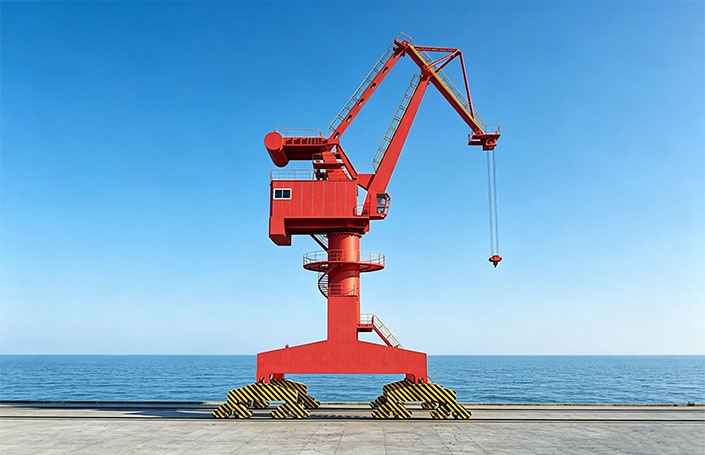

Fixed Type Four Link Portal Crane

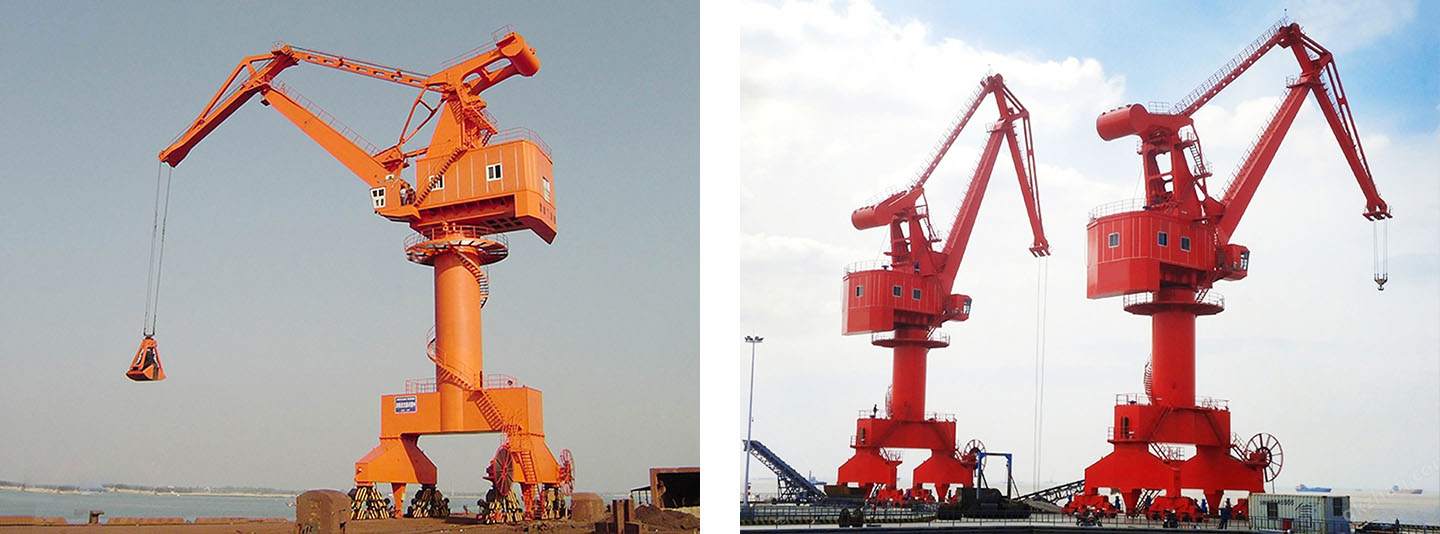

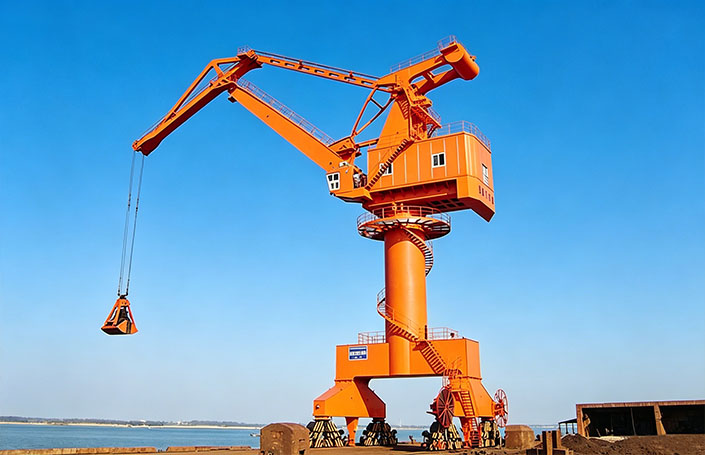

Rail Mounted Four Link Portal Crane
| Model | MQ524 | MQ1030 | MQ1630 | MQ2530 | MQ3030 | MQ4030 | MQ4530 | |
| Capacity | 5T | 10T | 16T | 25T | 30T | 40T | 45T | |
| Working Radius | Max | 24m | 30m | 30m | 30m | 30m | 30m | 30m |
| Min | 7.5m | 9m | 9.5m | 9.5m | 10m | 10m | 10m | |
| Lifting Height | Above Rail | 19m | 18m | 19m | 19m | 19m | 18m | 18m |
| Below Rail | 10m | 16m | 15m | 15m | 15m | 15m | 15m | |
|
Working Speed |
Lifting Speed | 60m/min | 60m/min | 60m/min | 50m/min | 40m/min | 40m/min | 40m/min |
| Luffing Speed | 48m/min | 52m/min | 52m/min | 45m/min | 40m/min | 40m/min | 40m/min | |
| Slewing Speed | 1.82r/min | 1.5r/min | 1.4r/min | 1.82r/min | 1.25r/min | 1. 25r/min | 1.25r/min | |
| Travelling Speed | 28m/min | 25m/min | 25m/min | 25m/min | 25m/min | 25m/min | 25m/min | |
| Max Wheel Pressure | 116KN | 250KN | 250KN | 250KN | 300KN | 300KN | 300KN | |
| Gauge | 6m | 10.5m | 10.5m | 10.5m | 10.5m | 10.5m | 10.5m | |
| Basal Spur | 6m | 12m | 12m | 12m | 12m | 12m | 13m | |
| Recommended Track | 43kg | QU70 | QU70 | QU70 | QU80 | QU80 | QU80 | |
| Installed Capacity | 235KW | 298KW | 429KW | 557KW | 637KW | 733KW | 789KW | |
| Power Supply | 3-Phase AC 50HZ 380V | |||||||
Note: The above data is only for refence. The portal crane can be customized based on client request, such as lifting capacity, working radius and lifting height, etc.
