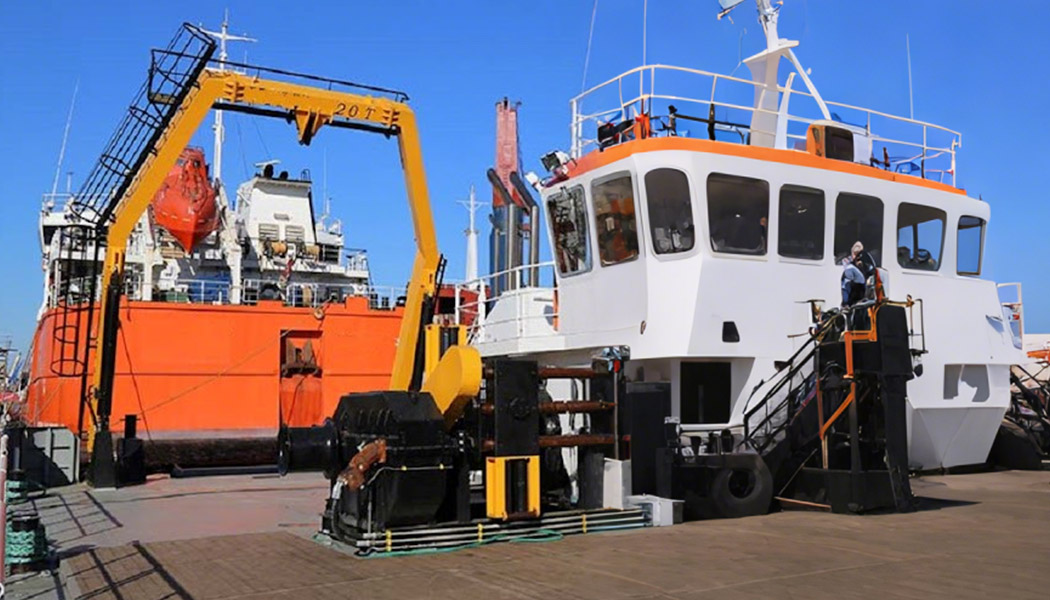

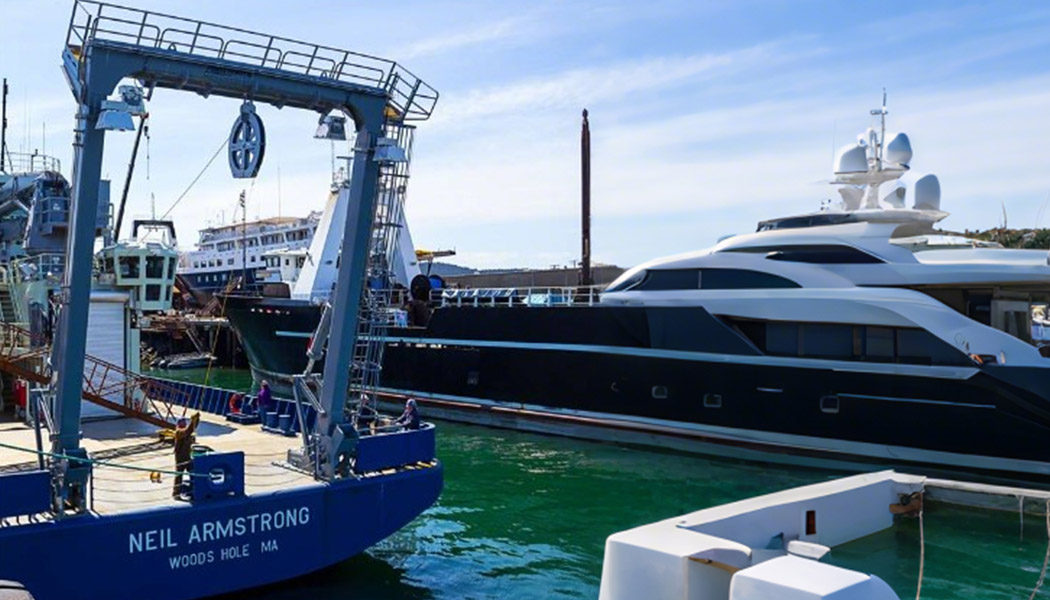

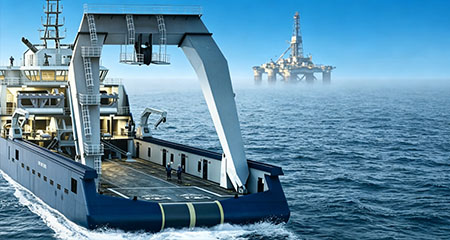

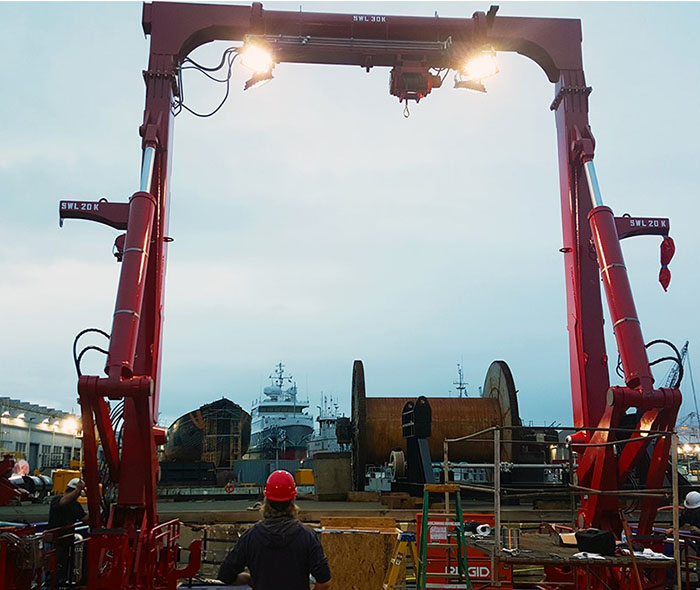

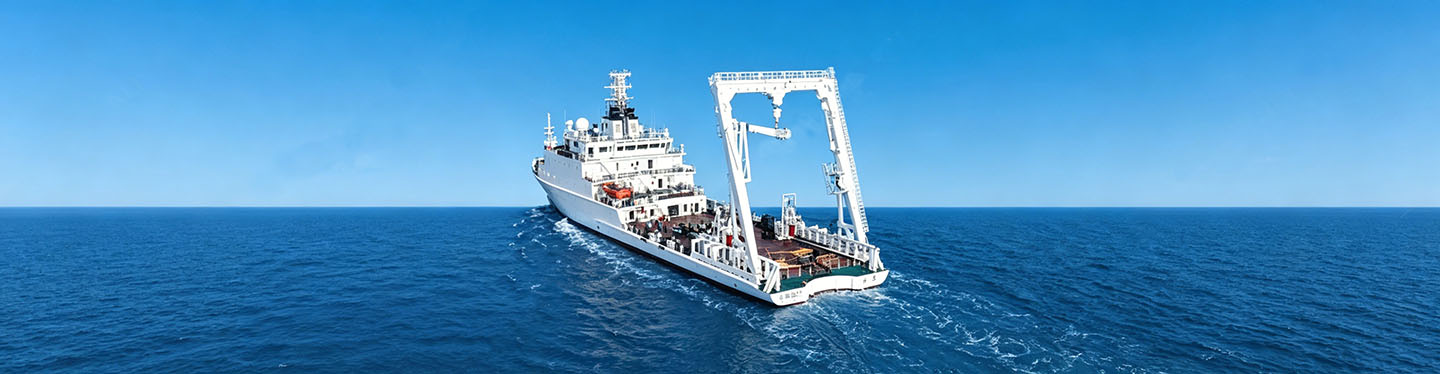

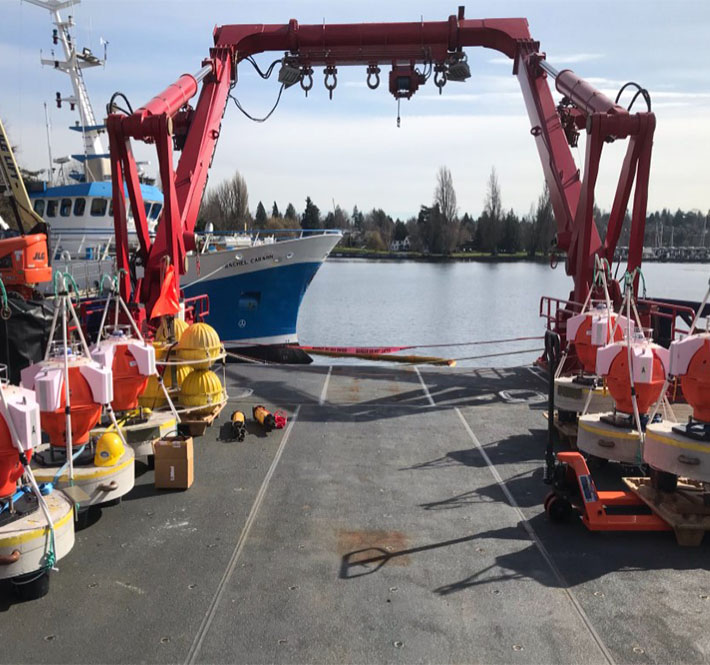

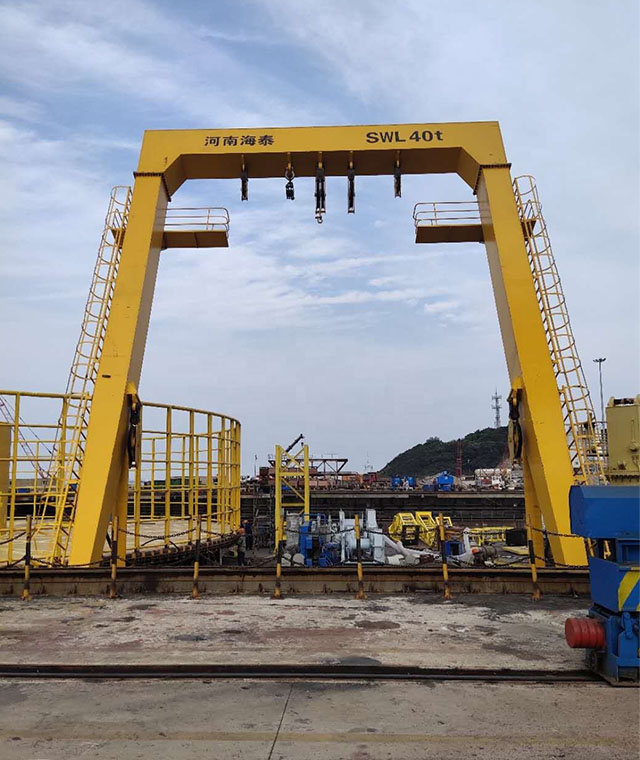

The stern crane is a type of offshore marine cranes, which is installed at the rear of a ship, and typically is designed as an A-frame or portal frame. Its main lifting power is provided by hydraulic systems. A-Frame Stern Crane is used for various applications, including cargo handling, rescue operations, and supply tasks. Although a-frame stern cranes are not as commonly used as marine hydraulic cranes in the marine industry, they remain essential lifting equipment in certain situations. Haitai Crane has been committed to the marine lifting industry, providing reliable marine cranes to suit your needs.
| Lifting Capacity (T) | Max. working Radius (m) | Min. working Radius (m) | Hoisting Speed (m/min) | Hoisting Height (m) |
| 5 | 12~20 | 1.3~4.2 | 15 | 10~30 |
| 8 | 12~20 | 1.3~4.2 | 15 | 10~30 |
| 10 | 12~20 | 1.3~4.2 | 15 | 10~30 |
| 15 | 12~20 | 1.3~4.2 | 15 | 10~30 |
| 20 | 12~20 | 1.3~4.2 | 15 | 10~30 |
| 30 | 12~20 | 1.3~4.2 | 15 | 10~30 |
| 40 | 12~20 | 1.3~4.2 | 15 | 10~30 |
You should give us the following information:
The delivery cycle is generally 30 to 60 days, there are 15 days of factory commissioning test time, we follow strict production and testing standards to produce high quality products for you.
The specific price needs to be calculated according to parameters and configuration. Then we will quote our best price to you accordingly.
Yes, we can provide CE, CCS and BV certifications.
12 months from the date of bill of lading.
We will provide the installation plan and drawings after production. If needed, our engineers can visit your project site to guide the installation. Details regarding fees will be included in our quotation document.
Standard export package. All parts are shipped in containers and the electrical parts are packed in wooden cases.
