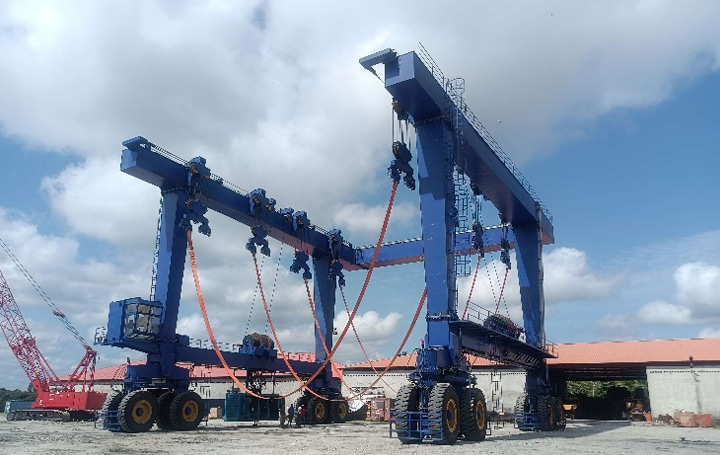

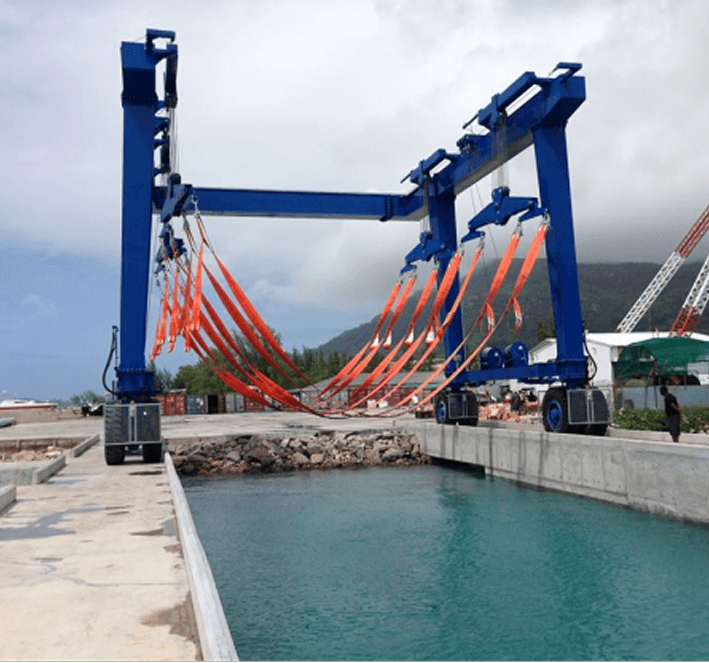

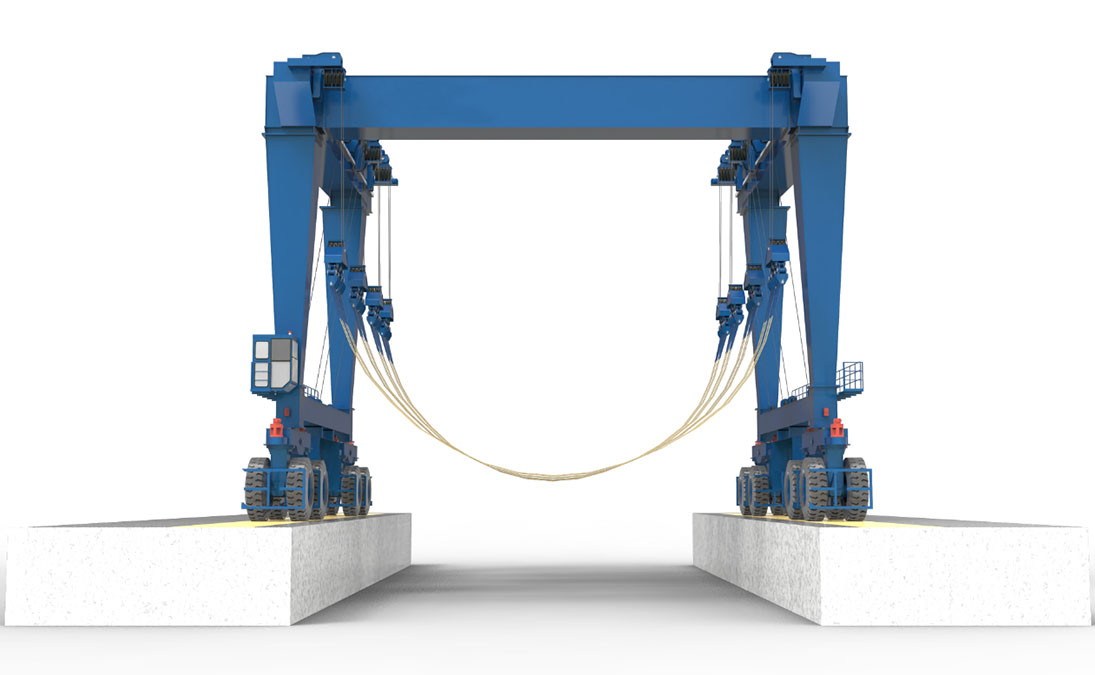

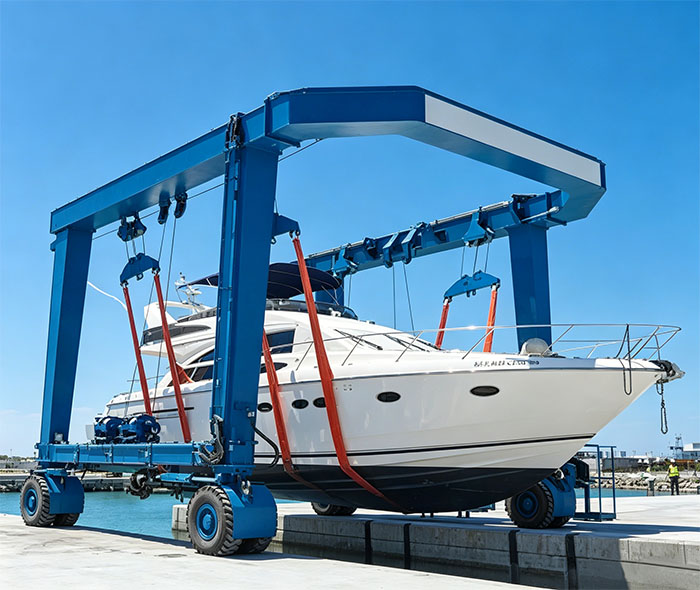

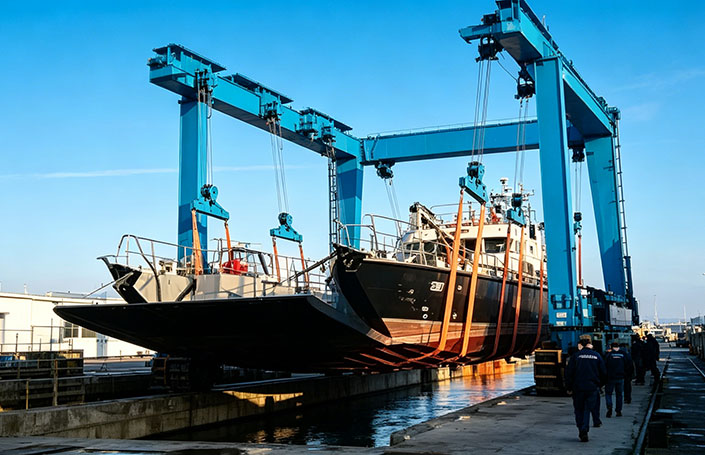

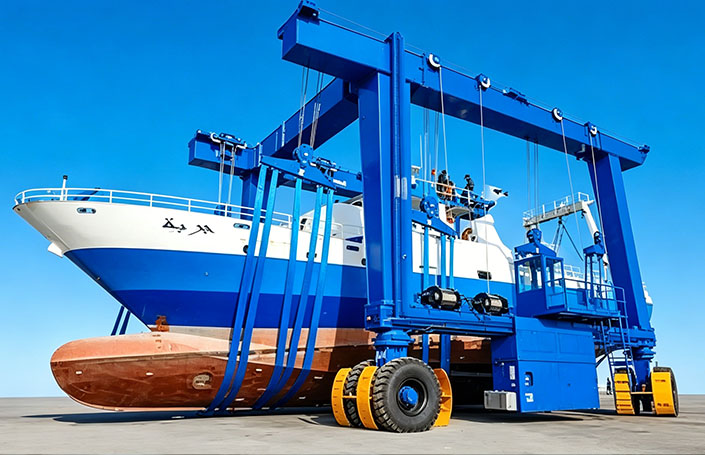

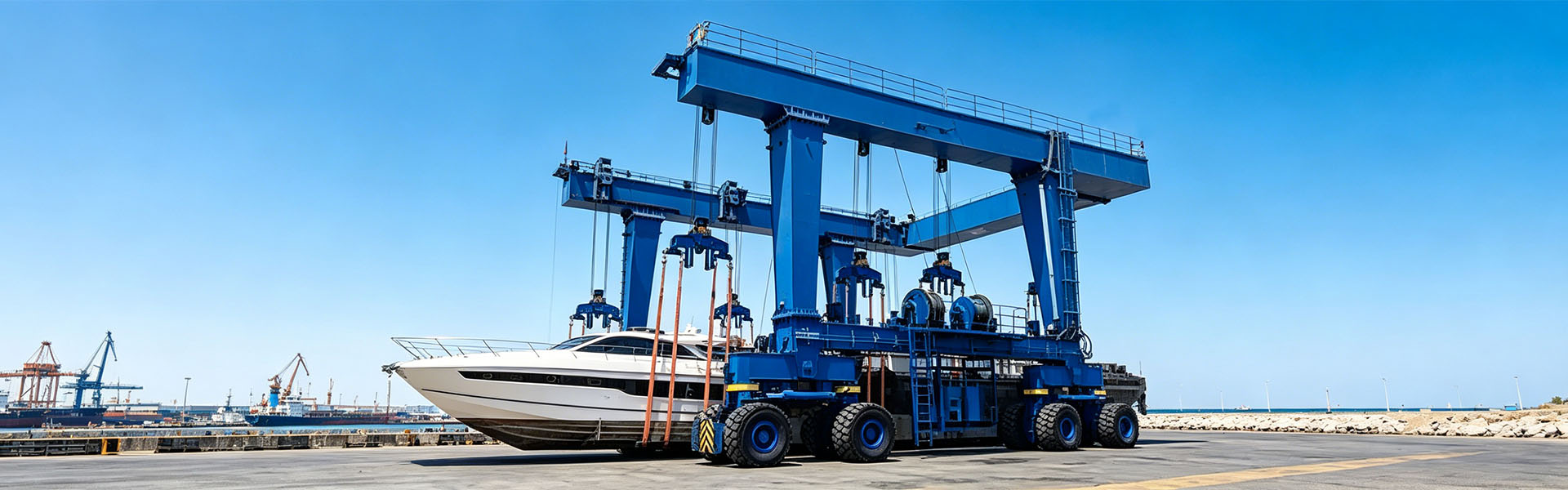

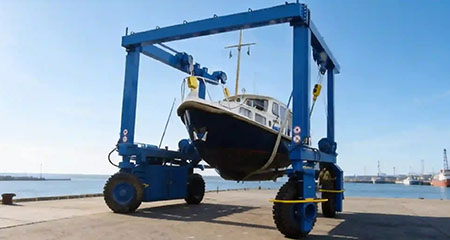

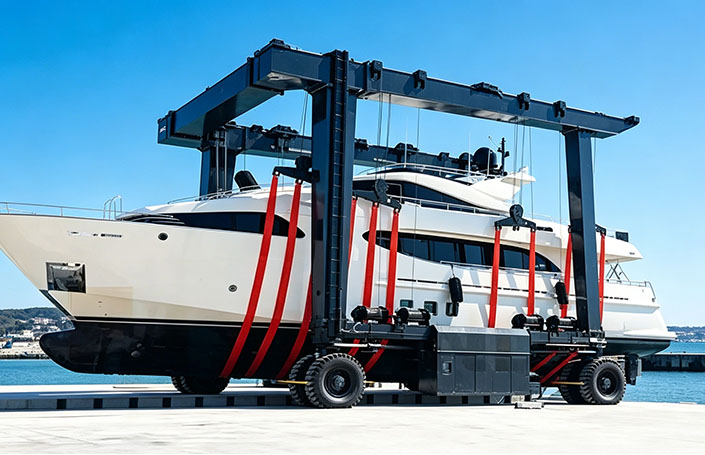

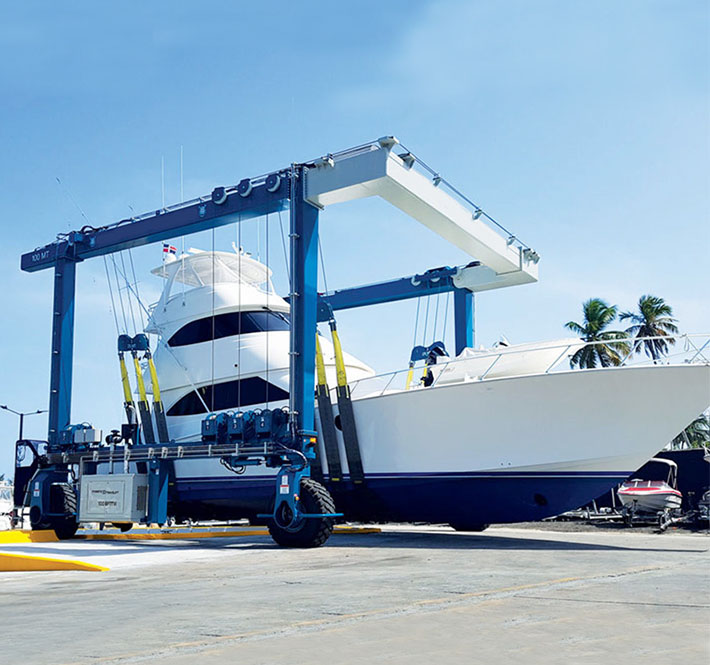

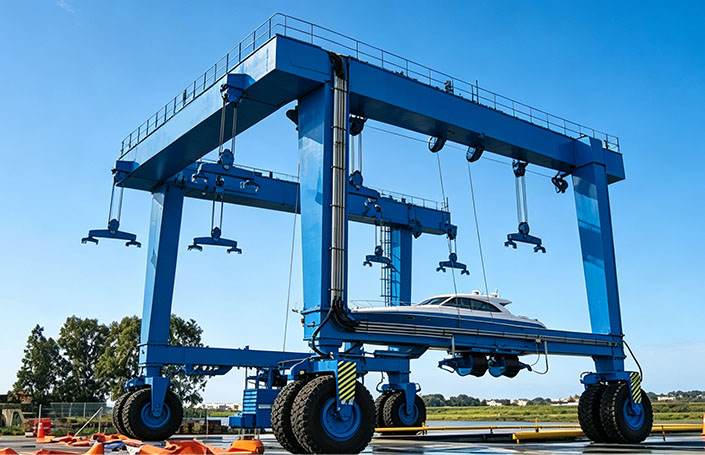

Travel Lift, also known as boat lift or boat hoist, is a kind of large lifting equipment, specifically designed for lifting, moving and placing boats. The marine boat travel lift typically features the U-shaped or the C-type structure, which is usually supported by four legs and mostly powered by either electric or hydraulic drive system. The boat travel lift has the advantages of stability, reliability and safety, offering enhanced flexibility and performance.
Haitai Crane is a leading travel lift manufacturer, specializing in customized yacht travel lifts, delivering reliable and efficient boat lifting solutions tailored to your specific needs.
| Capacity (t) | Span (m) | Height (m) | Engine (Kw) | Tyres |

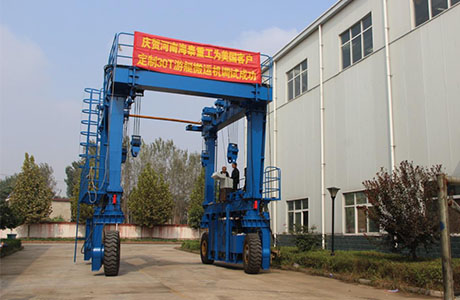

| 30t | 7 | 8.2 | 54 | 4 |
| 40t | 8 | 8.2 | 74 | 4 |

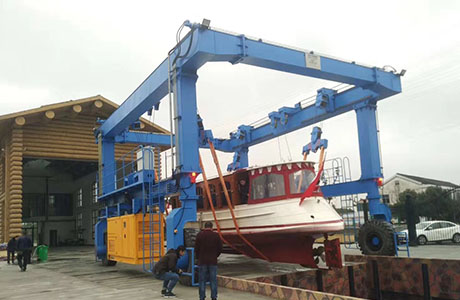

| 50t | 8.5 | 10.05 | 95 | 4 |
| 80t | 9.5 | 8 | 74 | 4 |
| 100t | 10 | 15 | 120 | 4 |
| 120t | 10.3 | 8 | 154 | 4 |
| 130t | 12 | 10 | 200 | 4 |

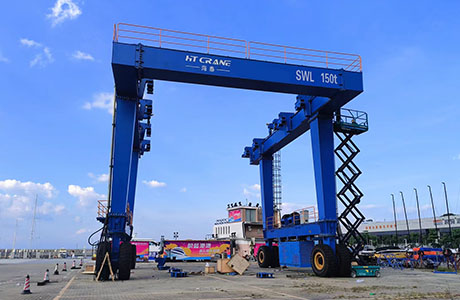

| 150t | 14.3 | 10 | 154 | 4 &8 |
| 160t | 15.5 | 10.2 | 298 | 8 |

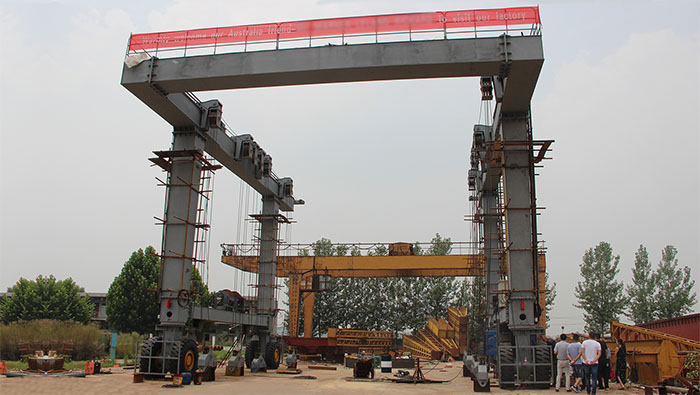

| 200t | 16 | 10 | 180 | 8 |
| 250t | 13 | 12 | 298 | 8 |

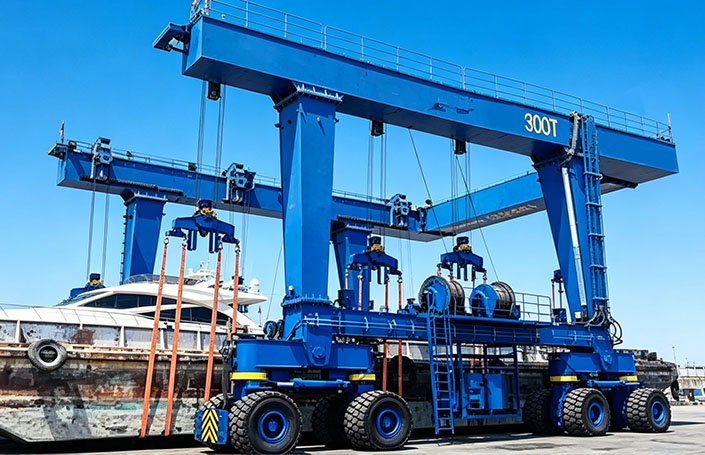

| 300t | 12.7 | 13 | 220 | 16 |
| 350t | 17 | 11.5 | 2*154 | 16 |
| 400t | 16 | 11.5 | 2*154 | 16 |
| 500t | 19 | 15.5 | 350 | 16&24 |
| 600t | 18 | 15 | 2*198 | 16&24 |
| 700t | 22.5 | 14.5 | 400 | 16&24 |
| 800t | 24.5 | 14.5 | 400 | 32 |
| 1200t | 30 | 14.5 | 2*290 | 32 |
| 1500t | 26 | 17.5 | 2*290 | 32 |
Yes, you need to give the corresponding parameter details:
Max. boat dimension
Max. boat weight
Dock width
Contact information in use so that we can contact you in time.
Generally speaking, we need about 3 months of production time and 20days for factory installation, testing and commissioning.

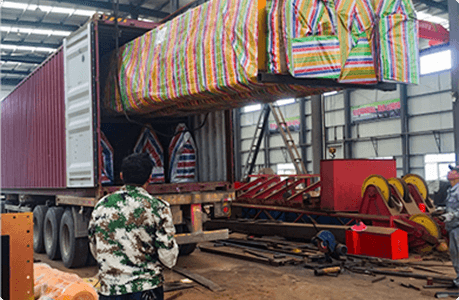

We will select appropriate and safe transportation and packaging methods, using GPS and other monitoring equipment to monitor the entire transportation process, conducting a comprehensive risk assessment of the transportation process.
The marine travel lift & its parts are guaranteed for 12 months from the B/L date.
Within 12 months warranty period, the free parts are provided (excludes man-made damage).
We have two solutions to serve you.
a. Remote online guidance for free any time.
We provide online remote guidance through video tools to guide the on-site assembly and commissioning of the boat travel lift, and we answer relevant questions for you.
b. On-site guidance for you
Haitai Crane will send engineers to customer’s site to guide the installation and commissioning. The cost details will be list in our quotation.
It is necessary that we provide full set guidance documents such as installation plan, electrical drawing, hydraulic drawing, operation manual and so on.
Our travel lift has been exported to Australia, Africa, Canada, Argentina, Thailand, Singapore, the United States, Mauritania, Malaysia, etc.
CE, ECM CCS, BV and qualification certificate.

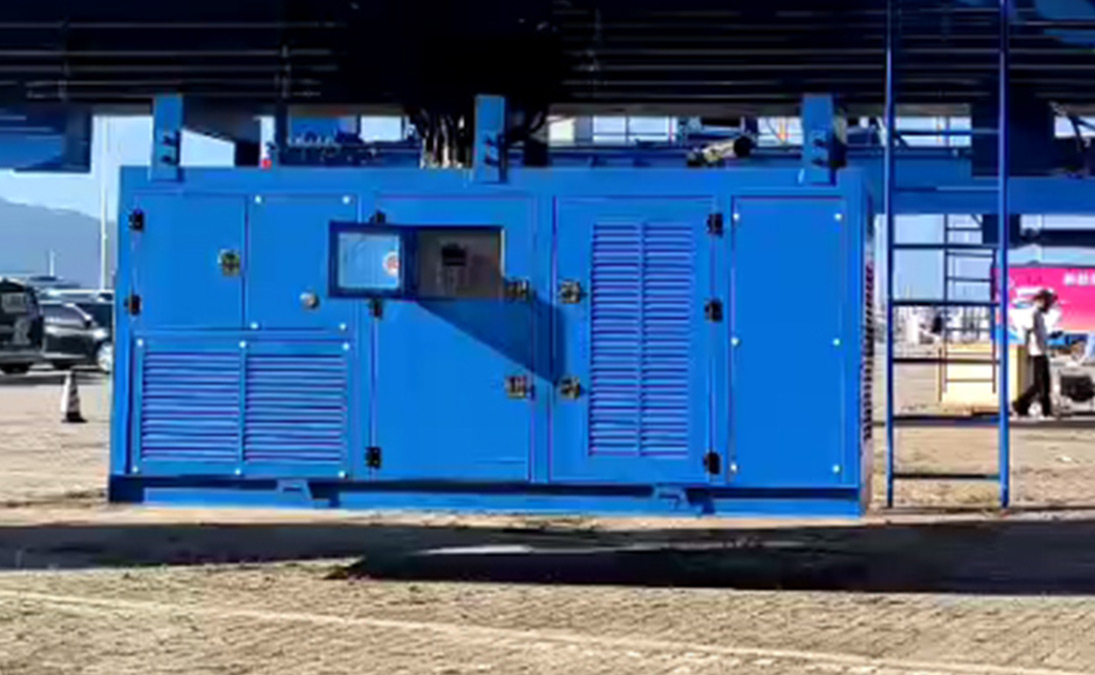

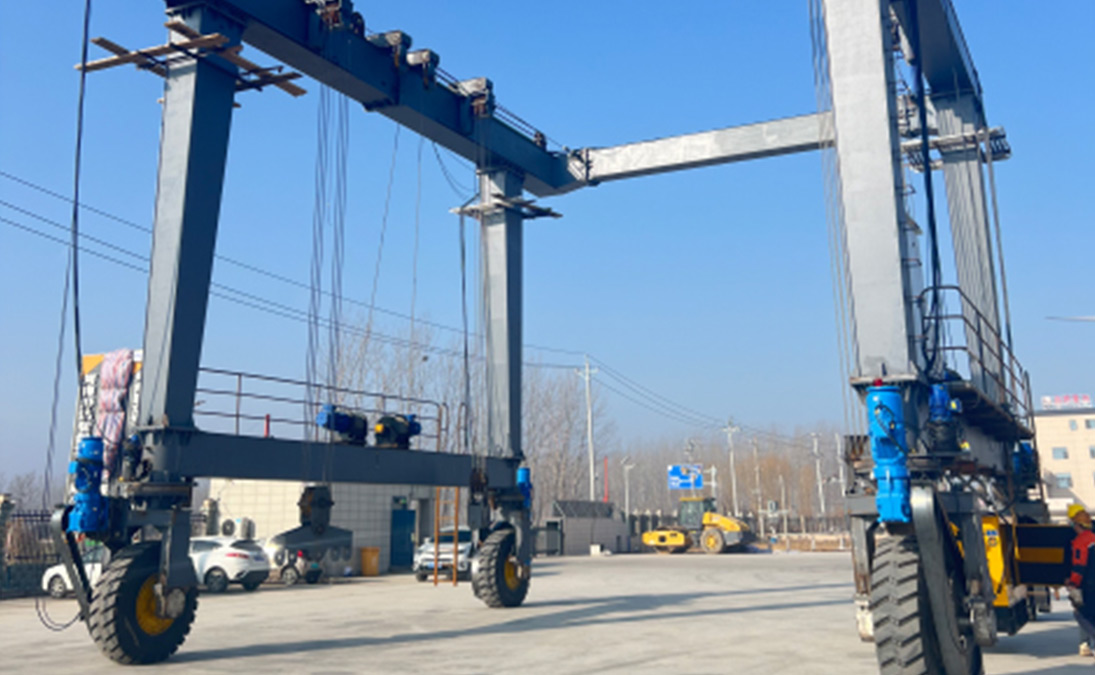

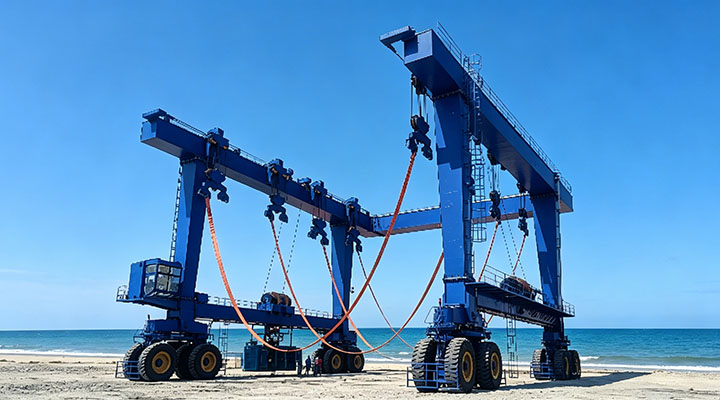

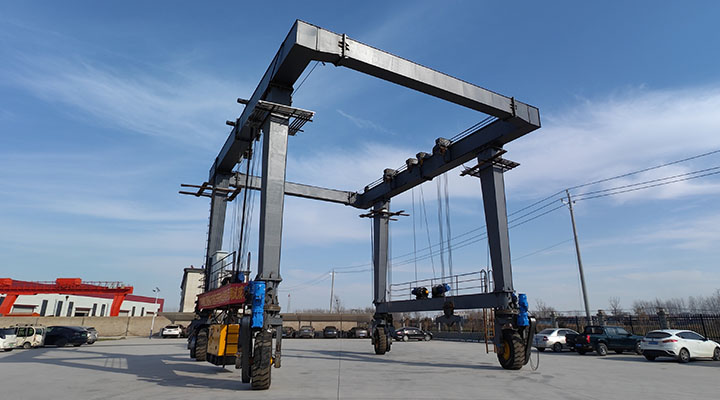

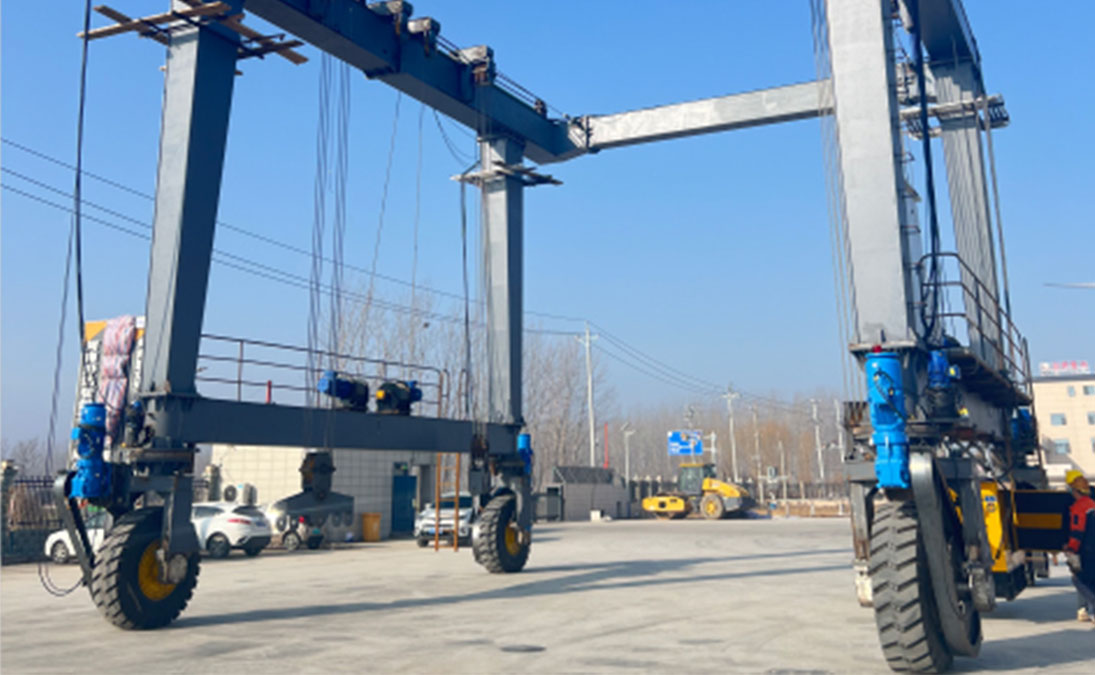

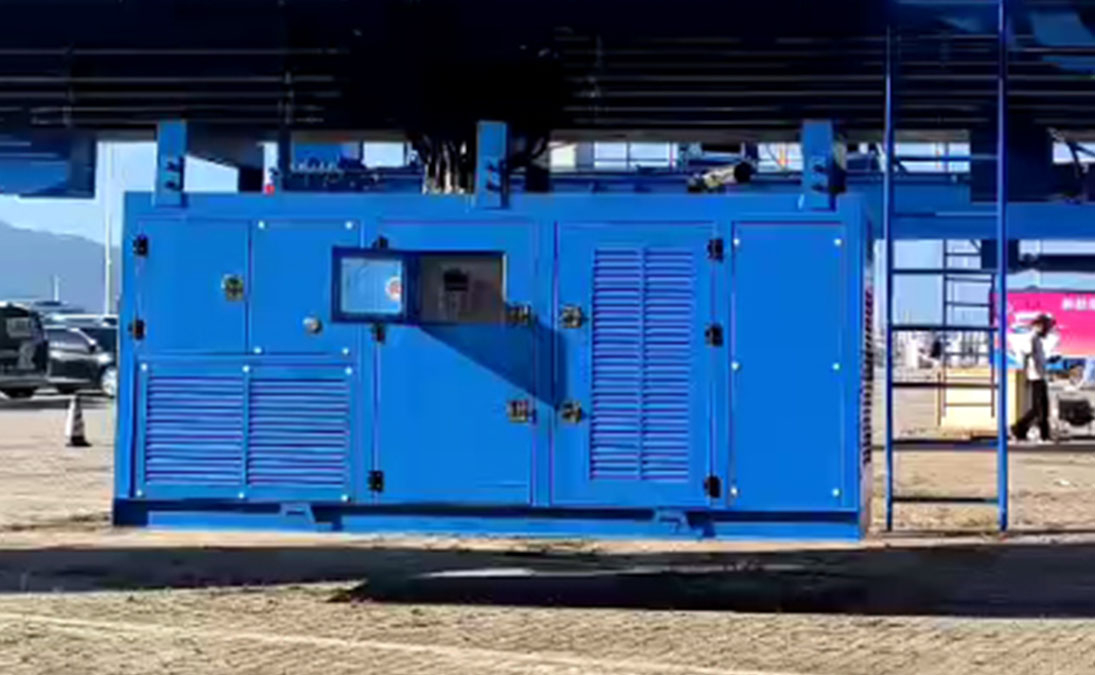

Electric drive, Full hydraulic drive, Electro-hydraulic mix-drive.
