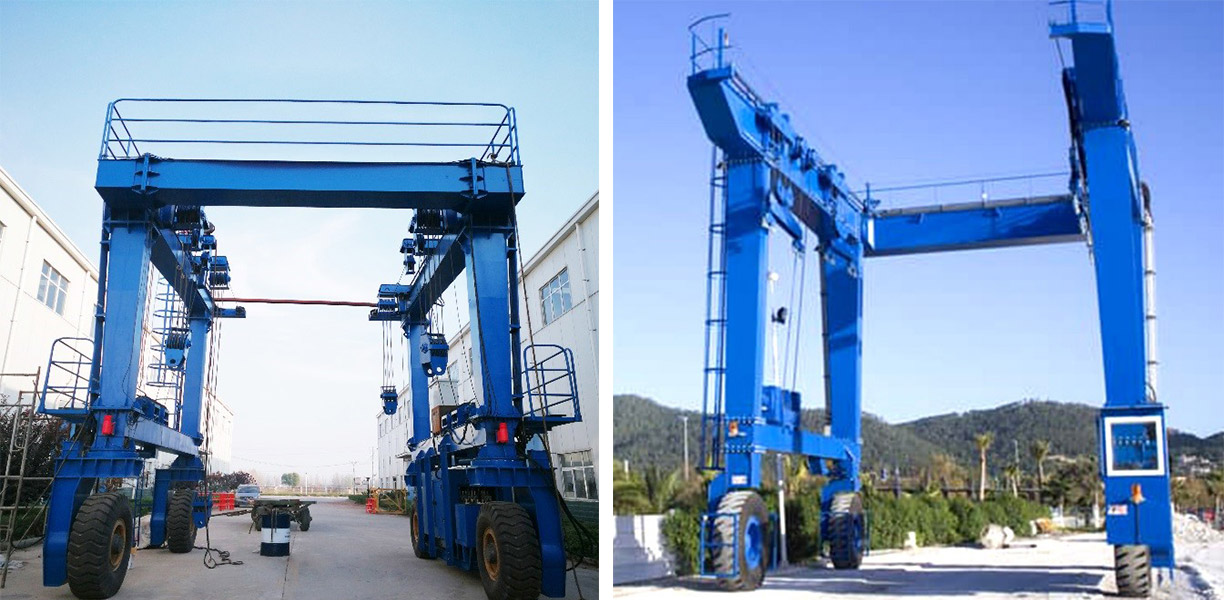

Yacht travel lifts are designed to accommodate vessels of all sizes and weights, making the hauling and transportation of boats convenient and efficient. 30ton yacht travel lift is used for handling boats and yachts weighing up to 30 tons (66000 lb). And the lifting process is relatively light and smooth because of small tonnage of the handling vessel,
At the request of an American client, we customized a 30-ton yacht travel lift crane specifically for dockside operations. After thorough discussions, we moved quickly into production to meet their unique requirements. Upon delivery, our expert engineers traveled to the site to assist with installation and commissioning, ensuring smooth and efficient setup.
Three months later, we were pleased to receive positive feedback from the client, highlighting their satisfaction with both the crane’s performance and our service. We’ve since maintained a strong and cooperative relationship.
Haitai Heavy Industry is proud to be your trusted partner in delivering reliable, custom-engineered lifting solutions.
| Capacity | 30 ton |
| Span | 7m |
| Hight | 8.2m |
| Lifting Speed With Load | 0-1m/min |
| Lifting Speed Without Load | 0-2m/min |
| Traveling Speed With Load | 0-20m/min |
| Traveling Speed Without Load | 0-40m/min |
| Operation mode | Cabin/Remote Control |
The 30ton travel lift operates on the same principle as other yacht travel lift, which is controlled by the operator using a control device and can be moved along a designated track or laid surface within a ship facility. to safely lift the vessel into the water for maintenance, repair, storage or transportation. It usually consists of a sturdy gantry frame, wheels or rails for movement, a hydraulic lifting system, and an adjustable sling or straps for securing the boat during lifting.

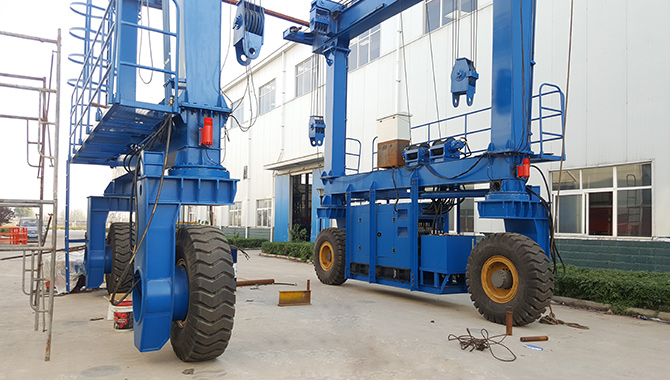

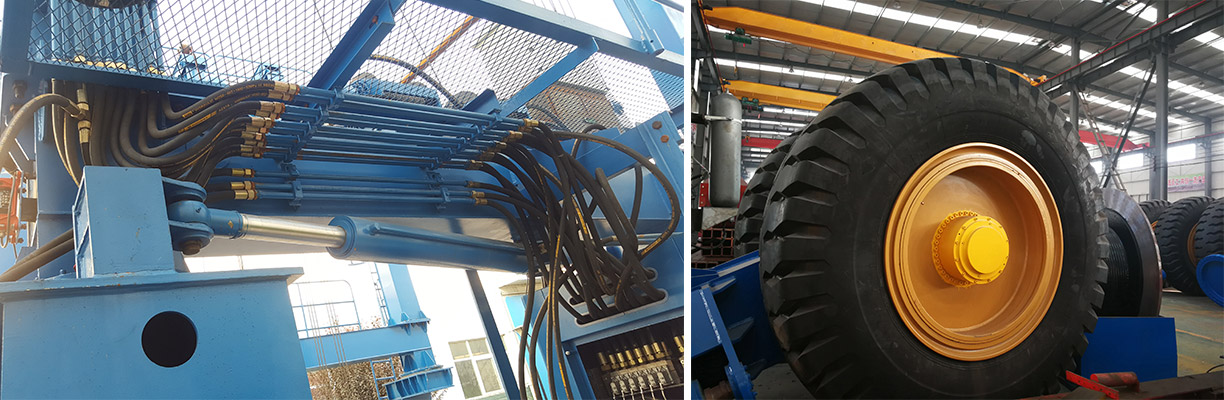

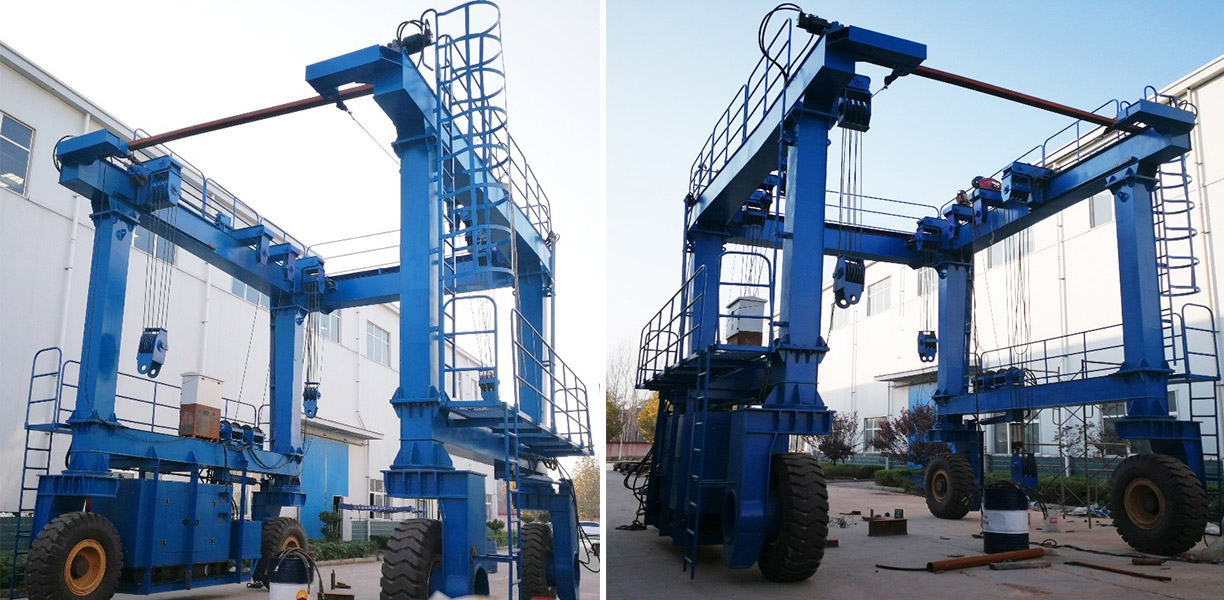

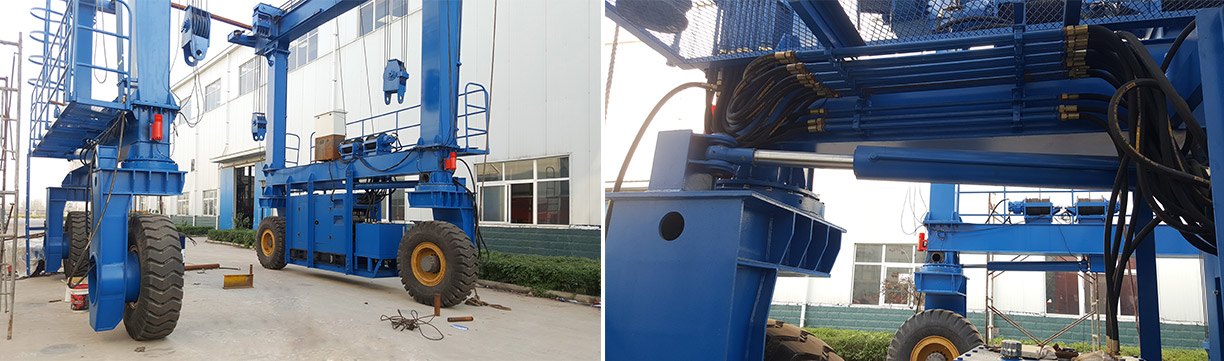

Factory installation and commissioning details
Hydraulic travel lift and Electric travel lift
There are usually two main types of travel lifts: hydraulic travel lift and electric travel lift.
Electric driven travel lifts are generally suitable for less than 80 tons,
And large tonnage travel lift usually is equipped with hydraulic system due to the hydraulic transmission performance is relatively stable,
The lifting capacity of marine travel lifts ranging from smaller capacities like 10 tons and 20 tons to larger capacities such as 50 tons, 100 tons, 200 tons, 300 tons, 500 tons, 600 tons, and beyond. This allows boatyards and marinas to choose the appropriate lifting capacity based on their specific requirements and the sizes of boats they need to handle.
