We have shipped a 20-ton boat jib crane to the Maldives. According to the requirements of the customer’s site, we made slight adjustments to the technical parameters, which not only saved the customer’s costs but also met the standards for hoisting boats at the operation site. In the past these days, this boat jib crane has been successfully installed and commissioned. We are looking forward to its excellent performance in the operation.
| Capacity | 20 ton |
| Radius: | 10m |
| Hight | 6m |
| Lifting Speed With Load | 0-2m/min |
| Lifting Speed Without Load | 0-5m/min |
| Drive power | Electric |
| Operation mode | Remote Control |

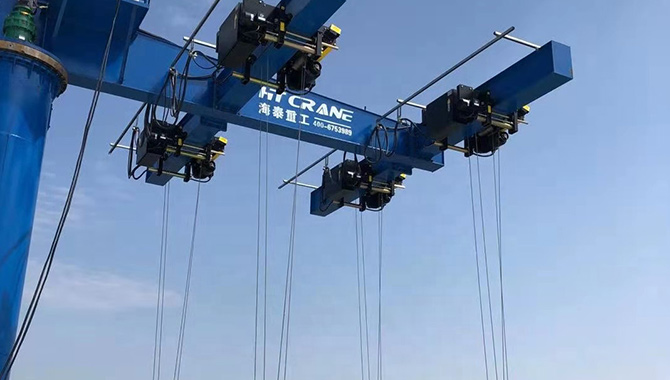

This marine boat jib crane is equipped with four hoists, each having a lifting capacity of 5 tons. The application points of the 20-ton force are evenly distributed among these four points. Given that the vessels to be lifted in this water area are relatively small, our working radius is set at 5 meters. This type of yacht crane is capable of rotating 360 degrees and operating in a circular manner, which involves hoisting the vessel ashore or placing it underwater.
When we fix the base with rivets, we need to pay attention to some matters
The cantilever boat jib crane features that it operates outdoors in a fixed position. Allowing the rivets play a crucial role in it

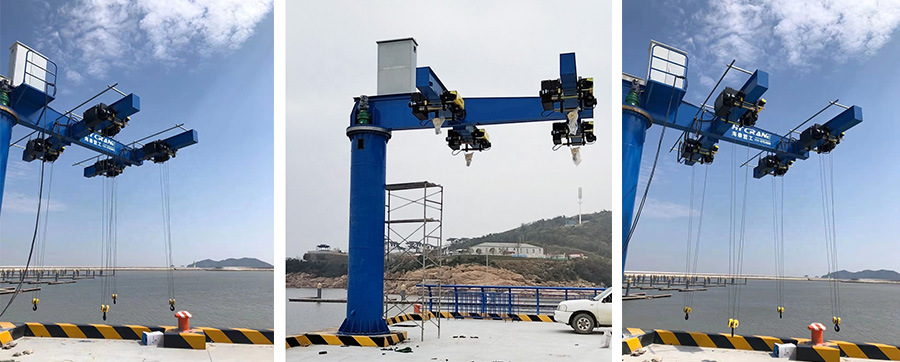

Location of the electrical box
We placed the electric box at the root of the cantilever. This can make the electric box closer to the electric drive components of the boat jib crane, such as electric hoists and slewing motors. It is convenient to distribute the electricity in the electric box to devices, reducing the troubles caused by long-distance wiring.
The cantilever boat jib crane boasts a simple structure and is both economical and durable. We provide customized design plans and solutions especially for hoisting yachts. Moreover, we offer both small-tonnage cantilever boat jib cranes and large-tonnage gantry structure travel lifts. I’m looking forward to cooperating with you if there’s a need.
