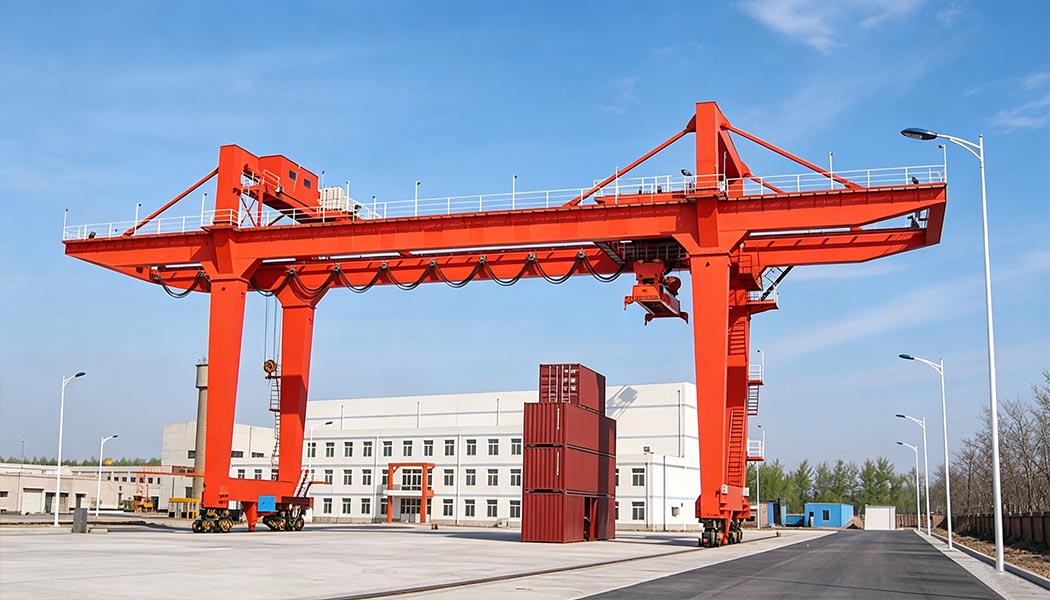

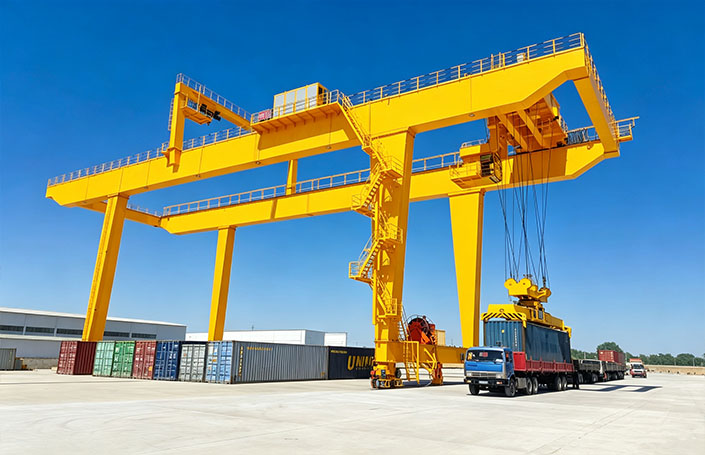

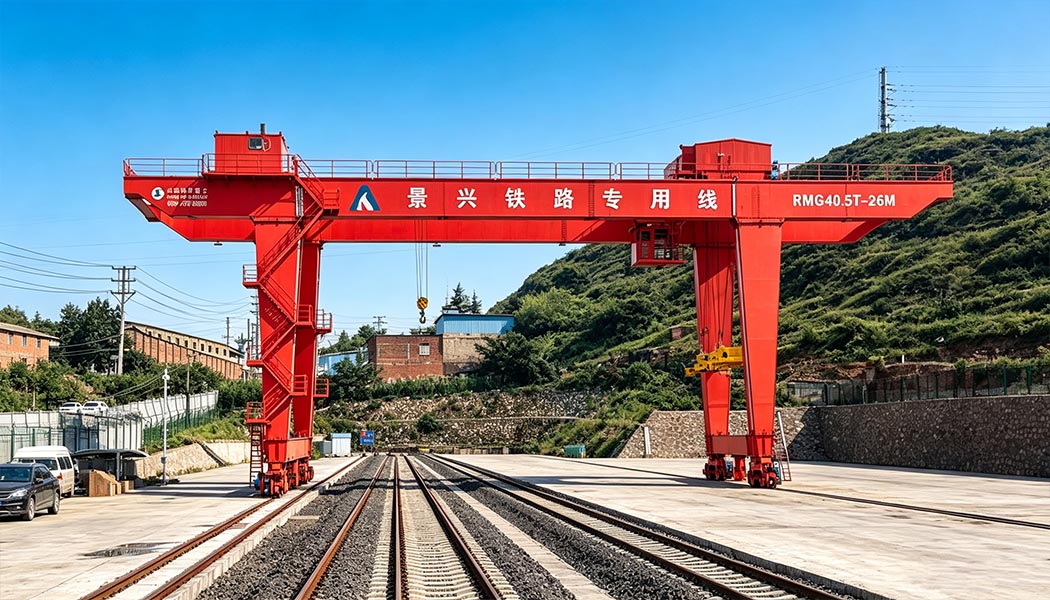

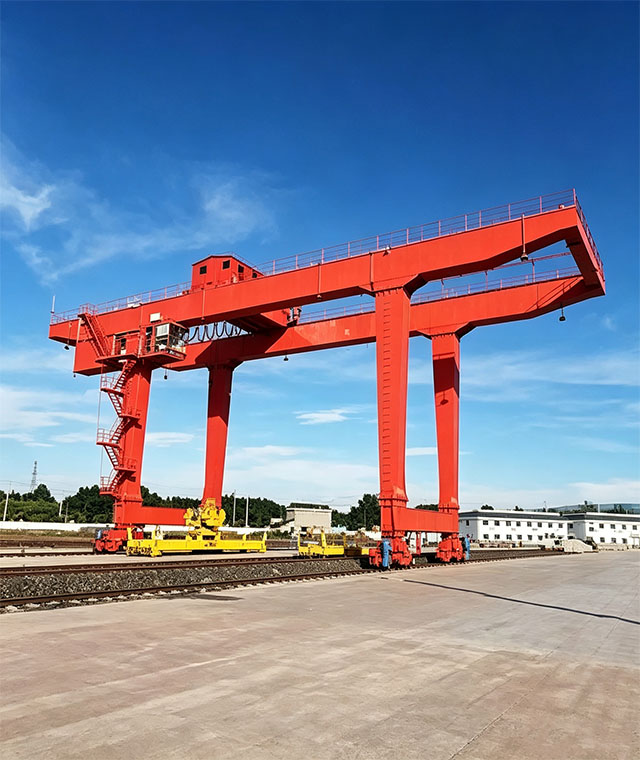

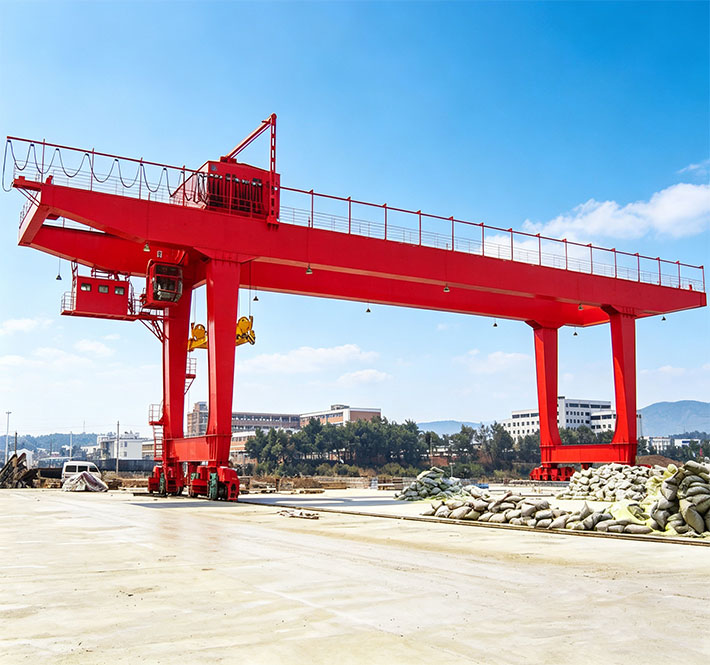

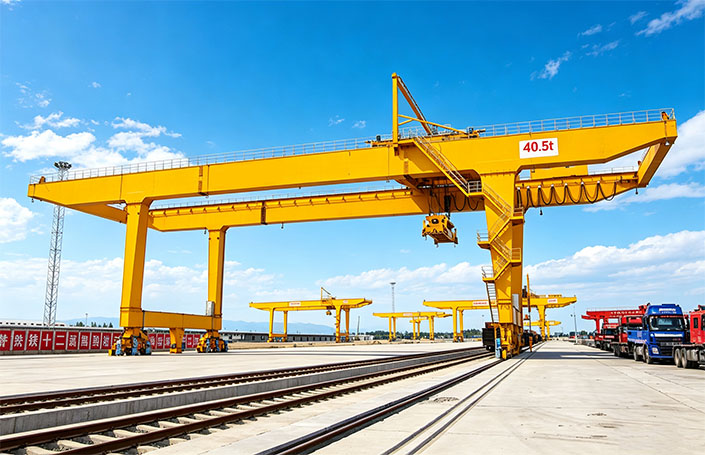

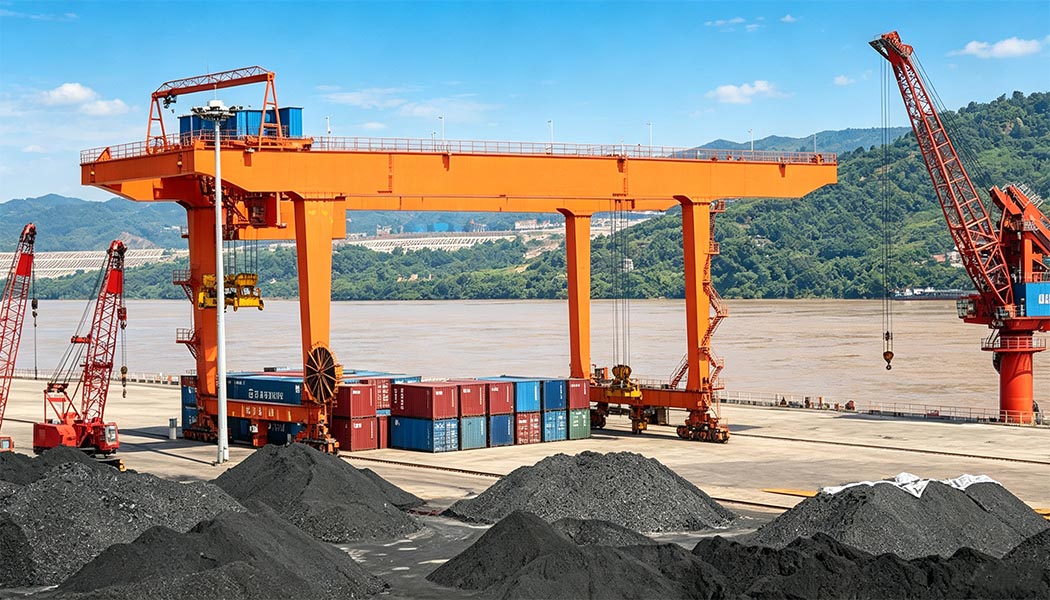

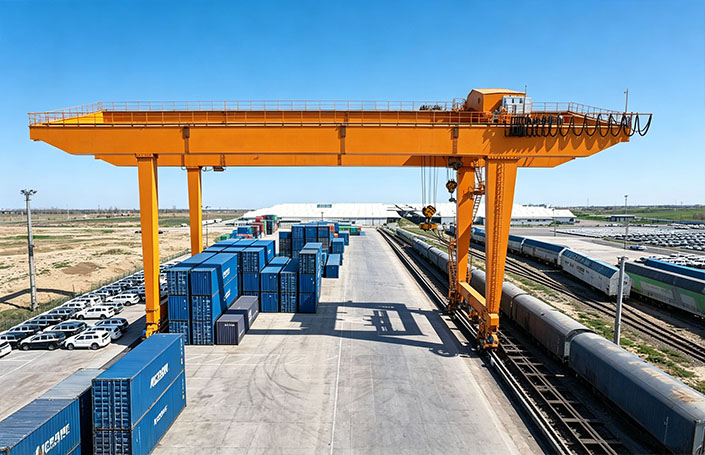

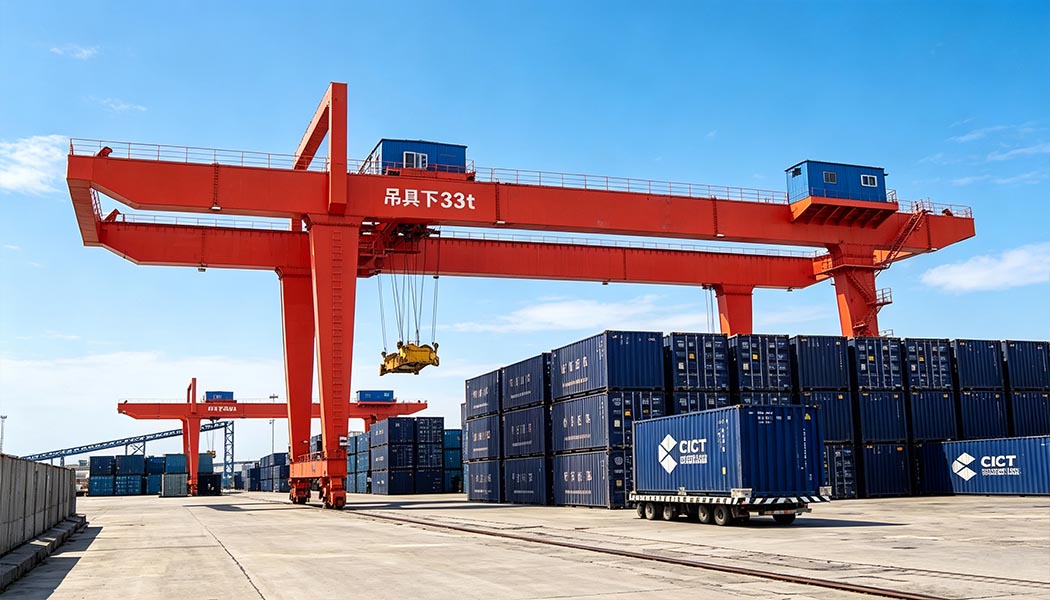

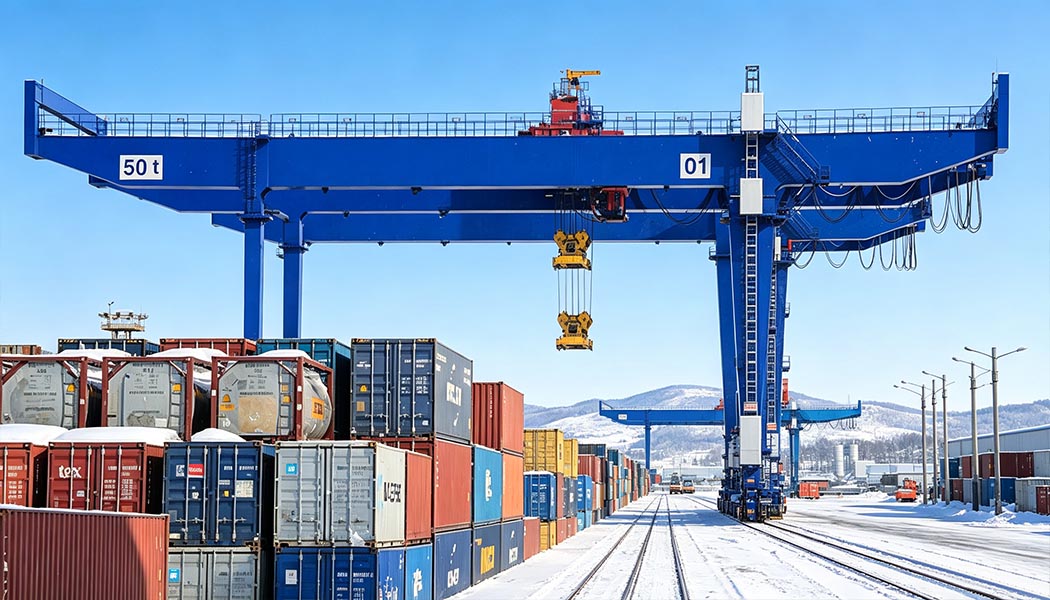

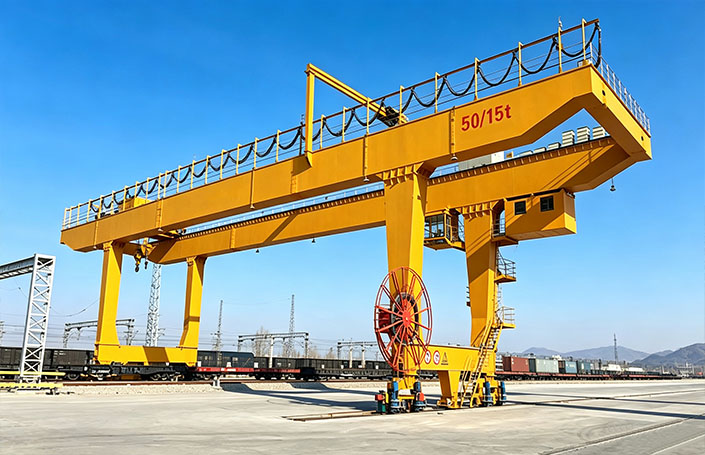

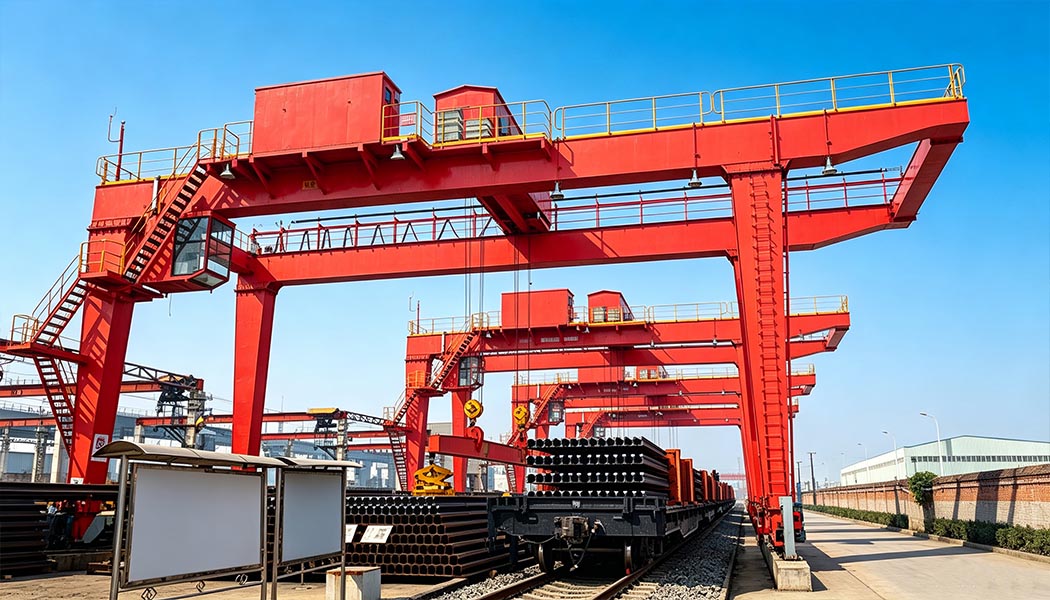

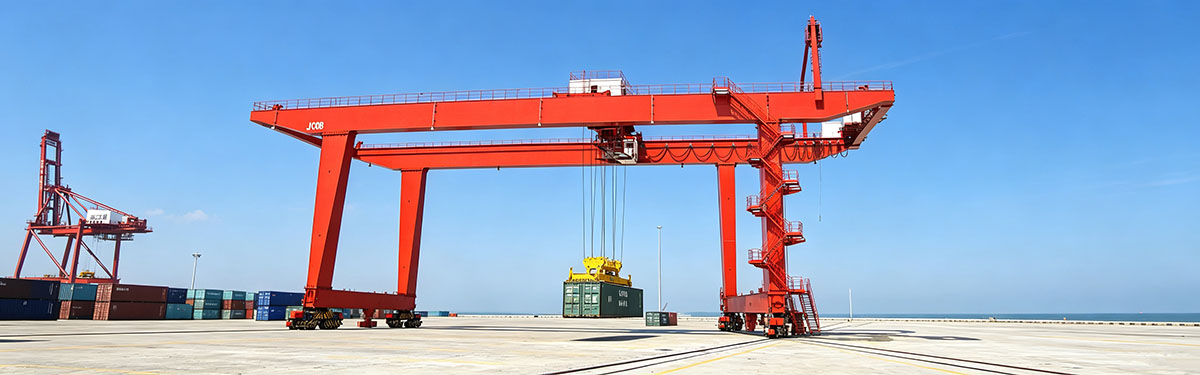

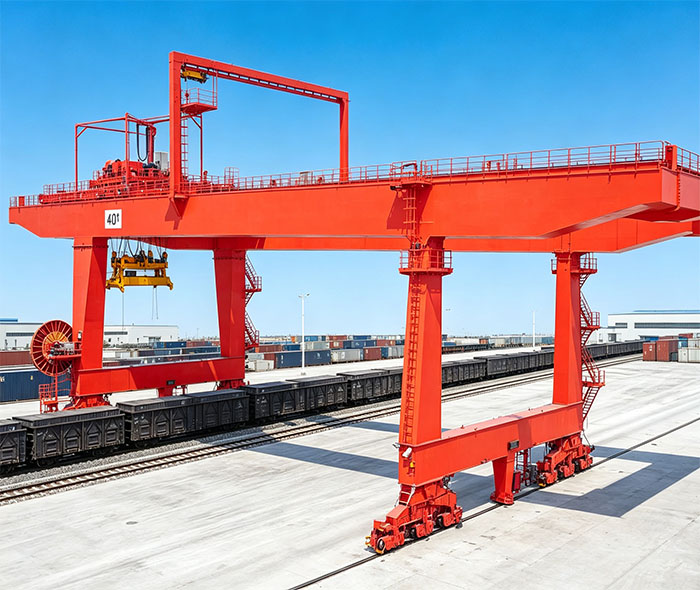

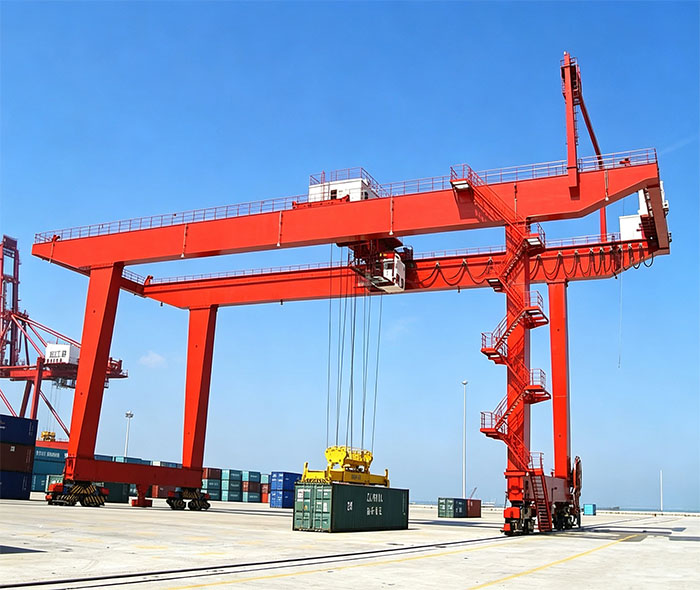

The RMG Crane (rail-mounted container gantry crane) is a highly efficient lifting device specially designed for container yards and is suitable for use in ports, logistics centers and other places. Its orbital design ensures stable operation and is particularly suitable for efficient container stacking and handling within a fixed area.
The lifting capacity of RMG cranes can be customized according to requirements, typically ranging from 30 tons to 50 tons, meeting the handling needs of various containers. It features a high lifting height and span, supports the stacking of multiple layers of containers, and is widely applicable for efficient operations in container yards. Electric or diesel drive can be selected according to the site conditions. The electric version offers lower operating costs and environmental advantages.
| Technical Parameter of RMG Crane | ||||||||
| Capacity (t) | 10 | 16 | 20/10 | 32/10 | 36/16 | 50/10 | ||
| Span (m) | 18~35 | 18~30 | 18~35 | 22 | 22~35 | 35 | ||
| Lifting Height (m) | Main Hook | 11.5 | 10.5, 12 | 10.5 | 11.5 | 11.5 | 12 | |
| Auxiliary Hook | / | / | 11 | 12 | 12 | 13 | ||
| Speed (m/min) | Main Hook | 8.5 | 7.9 | 7.2 | 7.5 | 7.8 | 6 | |
| Auxiliary Hook | / | / | 110.4 | 10.4 | 10.5 | 10.4 | ||
| Trolley Travelling | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 | ||
| Work Duty | A5 | |||||||
| Power Source | Three-phase AC. 127~480V 50/60Hz | |||||||
Note: The above data is only for reference. The RMG Crane can be customized based on customer requirements, such as lifting capacity, span and lifting height, etc.
Our RMG cranes are customized, so you should provide the following information:

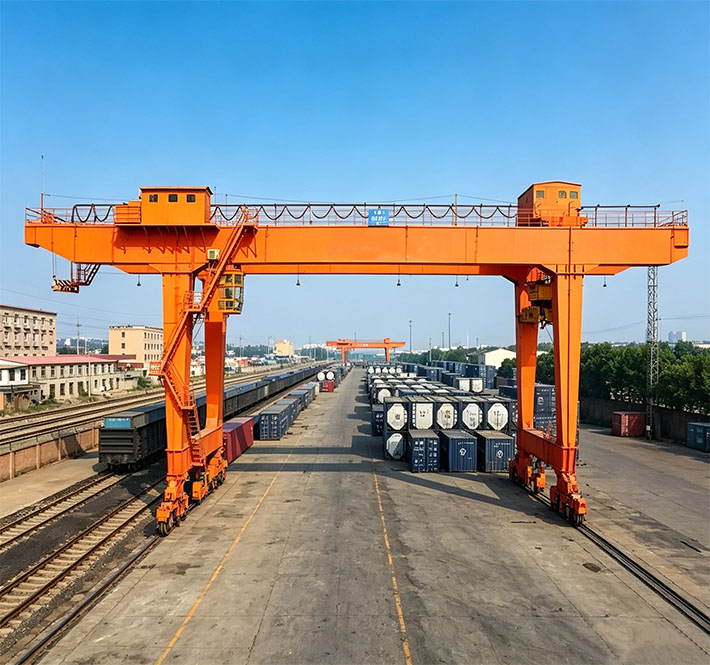

The maintenance cost of RMG cranes depends on their usage frequency, operating environment and the quality of maintenance. Regular inspection, lubrication, and component replacement are common maintenance tasks. The design and brand of the equipment can also affect the complexity and cost of maintenance.
The RMG Crane can adapt to various working environments, including high temperatures, cold conditions, marine environments and areas with strong wind speeds. Most RMG cranes have functions such as wind resistance and salt spray corrosion resistance, but in harsh environments, customized designs may be required based on actual conditions.

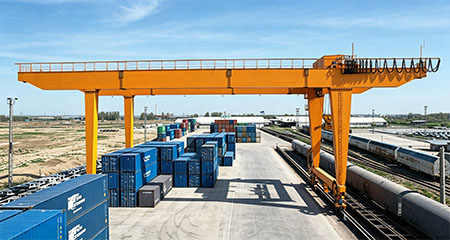

The RMG Crane was designed with multiple safety features in mind, such as an emergency stop button, overload protection. The combination of operator training and the safety functions of the equipment can ensure the high safety of the crane.
Yes, we can provide CE and other certifications.
12 months from the B/L date. Within 12 months warranty period: free parts provided (excludes man-made damage)
Around 80 working days for the general solution.
If you need, our engineer can go to your site to guide your installation & commissioning. This part cost is excluded in our equipment offer.
