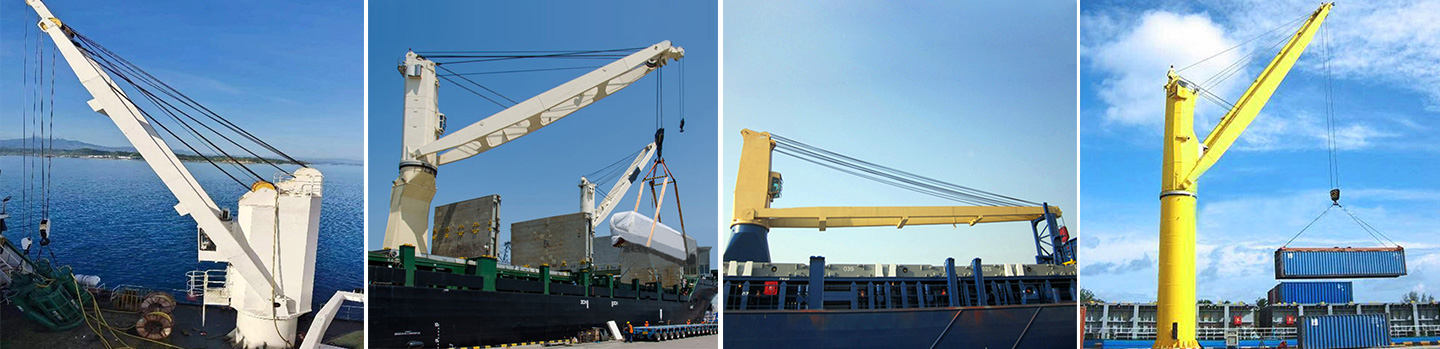

Reliable Ship Deck Crane Manufacturer

Drawing

Specification

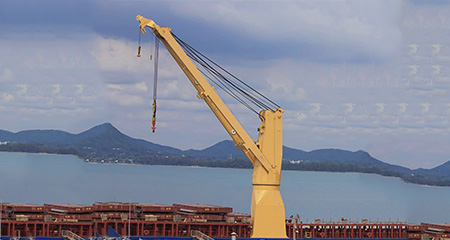

Safety Guarantee

Performance

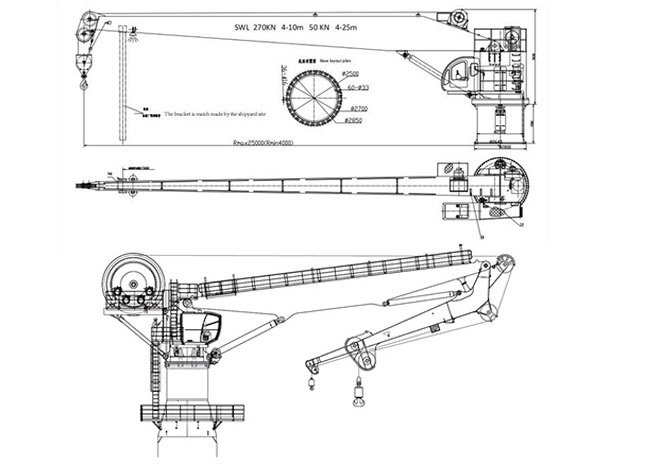

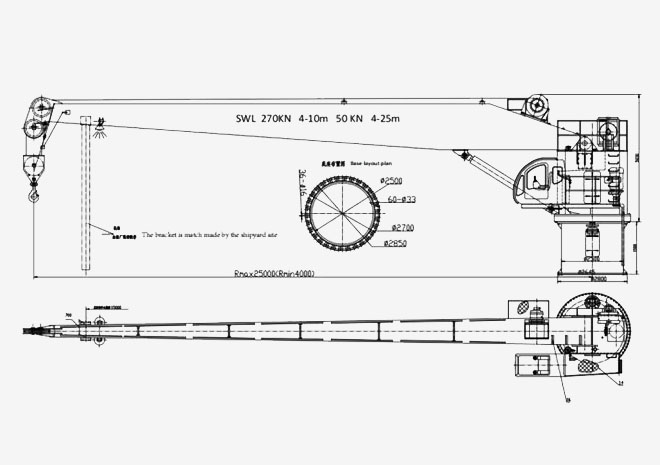

Drawing

We offer customized marine deck cranes. Haitai Crane utilizes advanced technology and design concepts to create tailored solutions that meet your lifting requirements. With Haitai Cranes, your ship cargo lifting will be more reliable!

Specification

Common Marine Deck Crane Specifications:

Lifting Capacity	Safe Working Load	Max. Working Radius	Min. Working Radius	Lifting Speed	Slewing Speed	Slewing Angle	Luffing Time	Lifting Height	Power
0.5T	5kN	5~12m	1.3~2.6m	15m/min	1r/min	360°	60s	30m	7.5kW
1T	10kN	6~12m	1.3~2.6m	15m/min	1r/min	360°	60s	30m	11kW
1.5T	15kN	6~14m	1.5~3.2m	15m/min	1r/min	360°	60s	30m	11kW
2T	20kN	8~16m	1.5~3.2m	15m/min	1r/min	360°	60s	30m	15kW
3T	30kN	8~18m	2.5~4.2m	15m/min	0.9r/min	360°	70s	30m	22kW
5T	50kN	10~20m	2.5~4.2m	15m/min	0.75r/min	360°	80s	30m	37kW
8T	80kN	12~20m	2.5~4.2m	15m/min	0.75r/min	360°	100s	30m	55kW
10T	100kN	12~20m	2.5~4.2m	13m/min	0.75r/min	360°	110s	30m	75kW
15T	150kN	12~22m	2.5~4.2m	13m/min	0.6r/min	360°	110s	30m	90kW
20T	200kN	16~25m	3.2~5.3m	13m/min	0.6r/min	360°	120s	35m	2X75kW
25T	250kN	20~30m	3.2~6.3m	12m/min	0.5r/min	360°	130s	40m	2X90kW
30T	300kN	22~30m	3.2~6.3m	12m/min	0.4r/min	360°	140s	40m	2X90kW

Safety Design

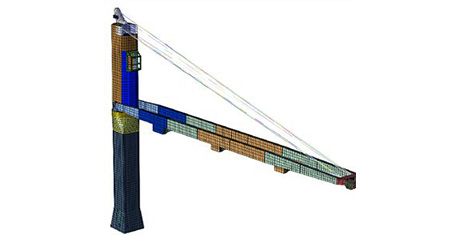

Using finite element analysis

Analyze the force of each part of the steel structure

More scientific, accurate and safe

Accurately simulate complex systems

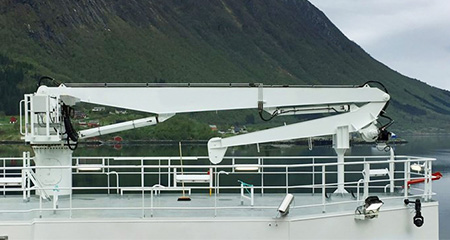

Protection Safety Devices

Overload Protection Device

Limit Switch

Hydraulic System Safety Valve

Windproof Device

Emergency Stop Device

Anti-overturning Device

Alarm System

Safety Lock Device

Anti-collision System

Protective Cover or Guardrail

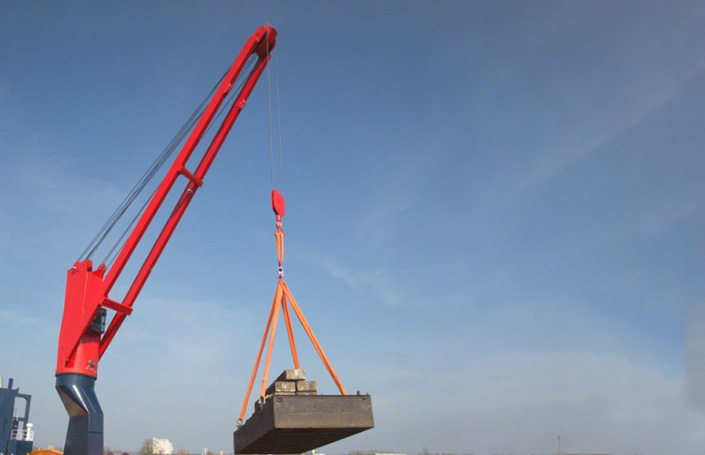

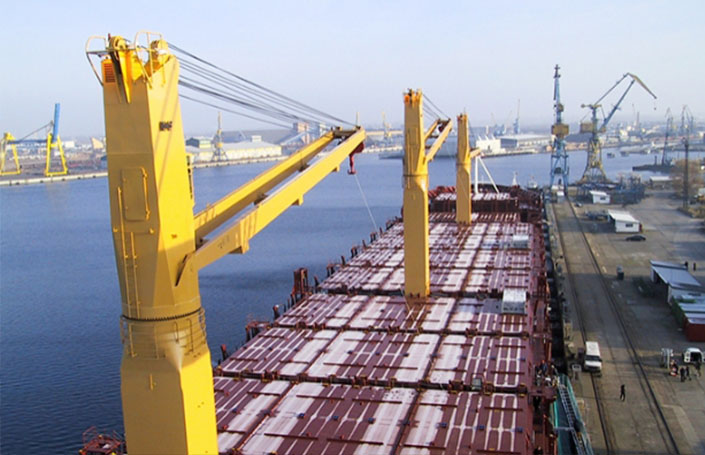

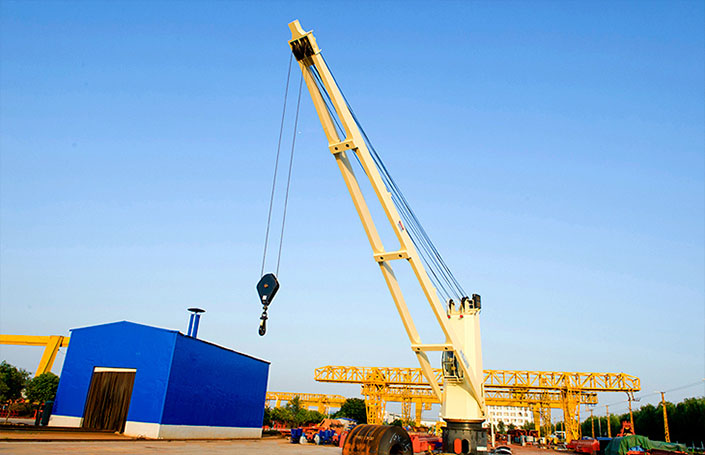

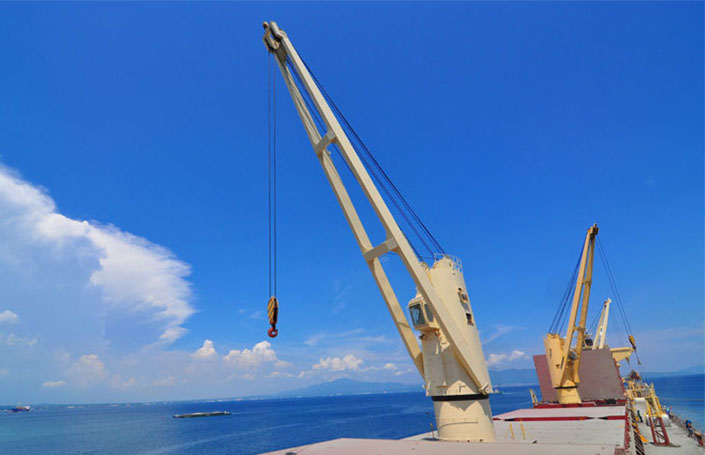

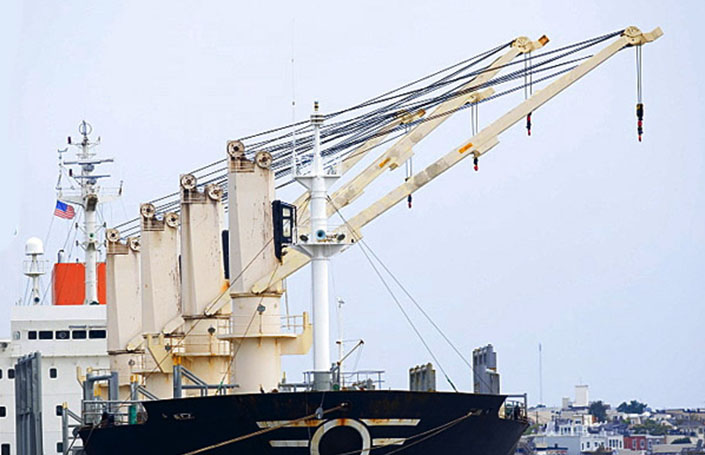

Performance

High carrying capacity

Adjustable lifting height

Smooth handling

Precise control

Well-adapted

Composite actions achievable

Efficiency and energy savings

High-level Security

Strong maneuverability

Feature

Customizable Equipment

Tailored solutions according to your actual needs, such as tonnage, working radius, lifting height, type of goods, site conditions, etc.

Higher Capacity

It is generally designed to be 3 to 60 tons, but there is higher tonnage.

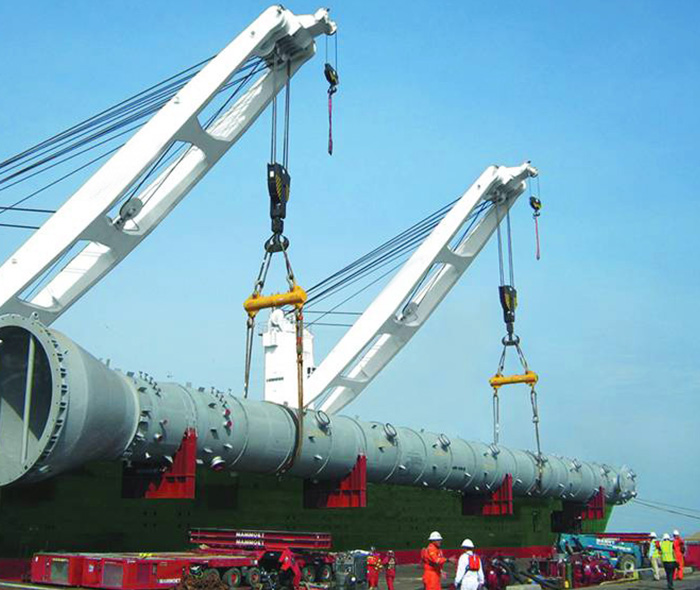

Two or More Collaborations

Enabling two or more deck cranes to work in series to move heavy objects in same directions.

Fixed Position

The deck crane is securely mounted on the deck to ensure safe operation.

360° Rotation Operation

When the base rotates, its operating range creates a circular area, allowing the lifting arm to move in a 360° rotation.

Hydraulic Drive

There are two driving modes for deck cranes: electric drive and hydraulic drive. People prefer the hydraulic drive mode due to its stronger moisture resistance and higher efficiency in continuous operation.

Variable Amplitude Load Technology

The amplitude mechanism enables the load to move smoothly and horizontally, allowing for necessary adjustments, improving operational efficiency and safety.

Easy to Maintenance

Some vulnerable parts are easy to replace, with multiple options available and relatively low maintenance costs.

Strong Corrosion Resistance

We adopt corrosion-resistant materials and anti-corrosion coatings that can adapt well to the Marine humid environment.

Multiple Arm Types for Your Choose

We offer a variety of arm types, including straight arms, folding arms, and telescopic arms, allowing you to select the most suitable option based on your specific needs.

Each arm type has its unique characteristics:

Straight Arm: This has a simple structure with a fixed length and angle, making it ideal for stationary work environments. Folding Arm: This occupies a small space and can be folded and expanded.
Telescopic Arm: This arm allows for flexible length adjustments, enabling it to extend or retract based on your requirements.

Certifications We Offer

Our ship deck lifting equipment meets international standards and have obtained a number of certificates such as CE, CCS, ABS, BV and others.

Spreader Option

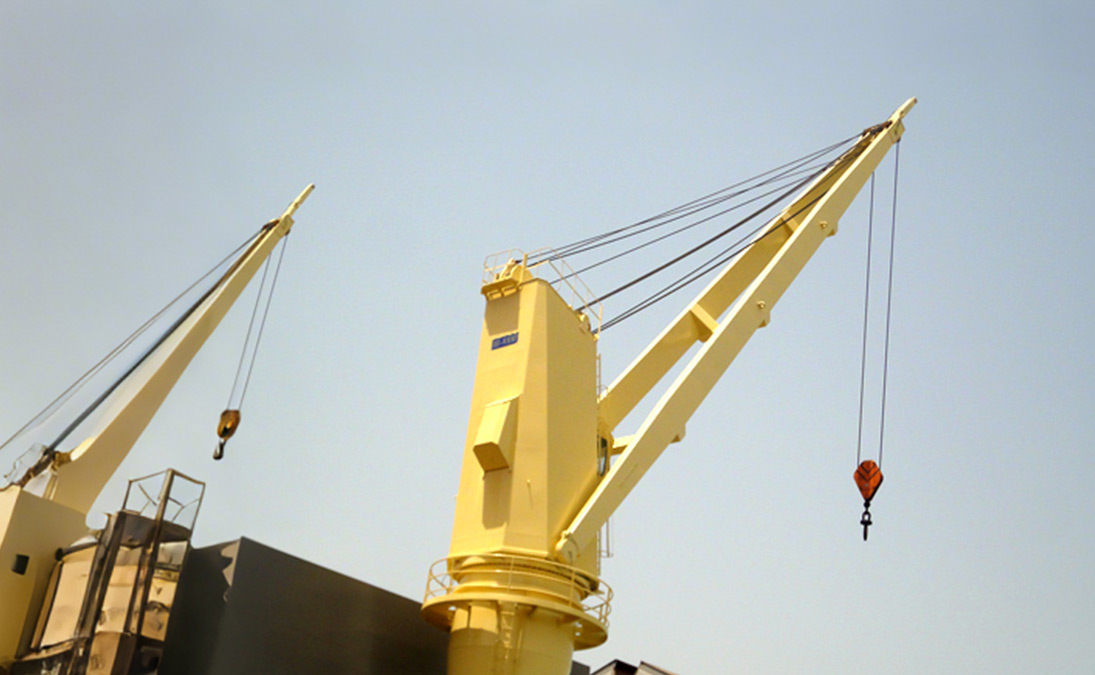

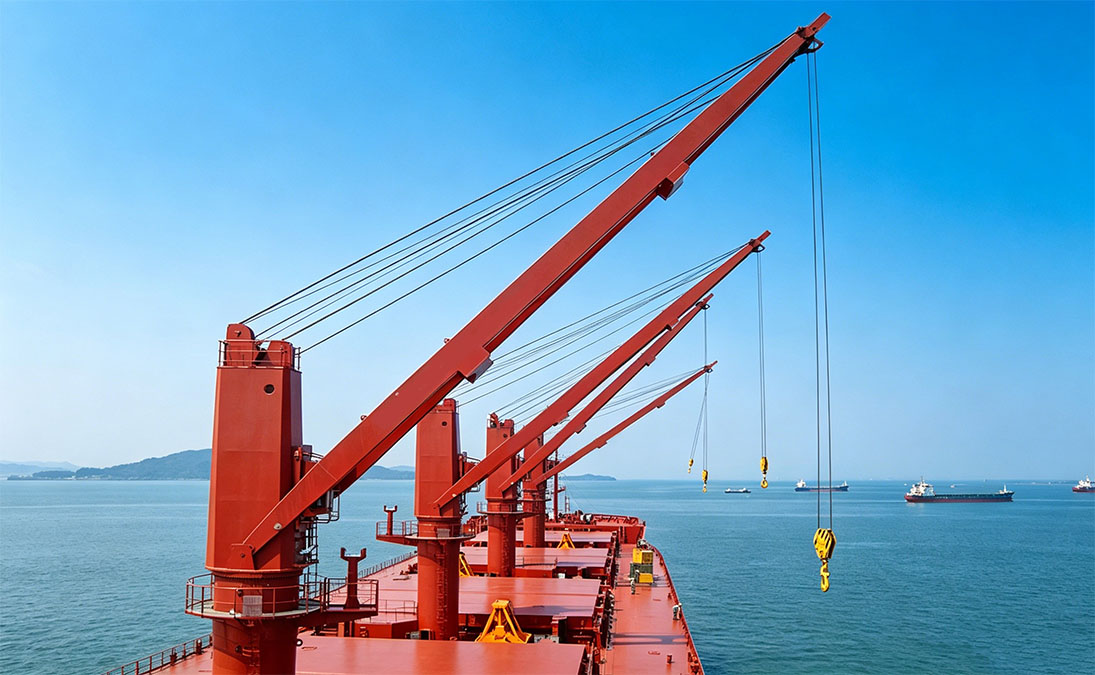

Hook

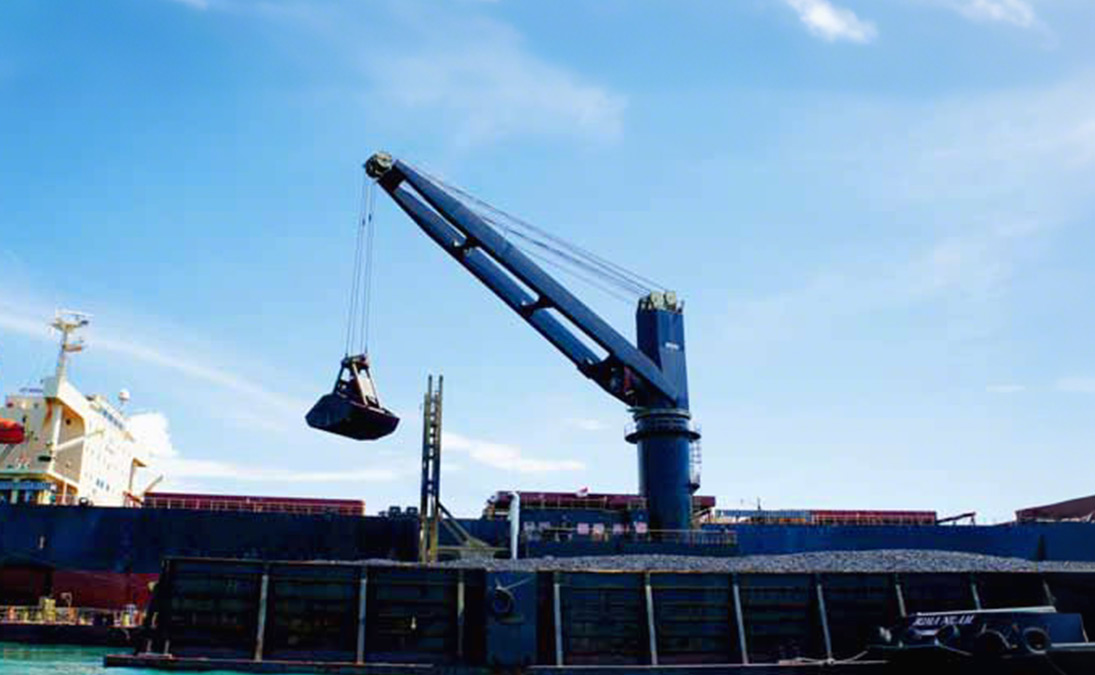

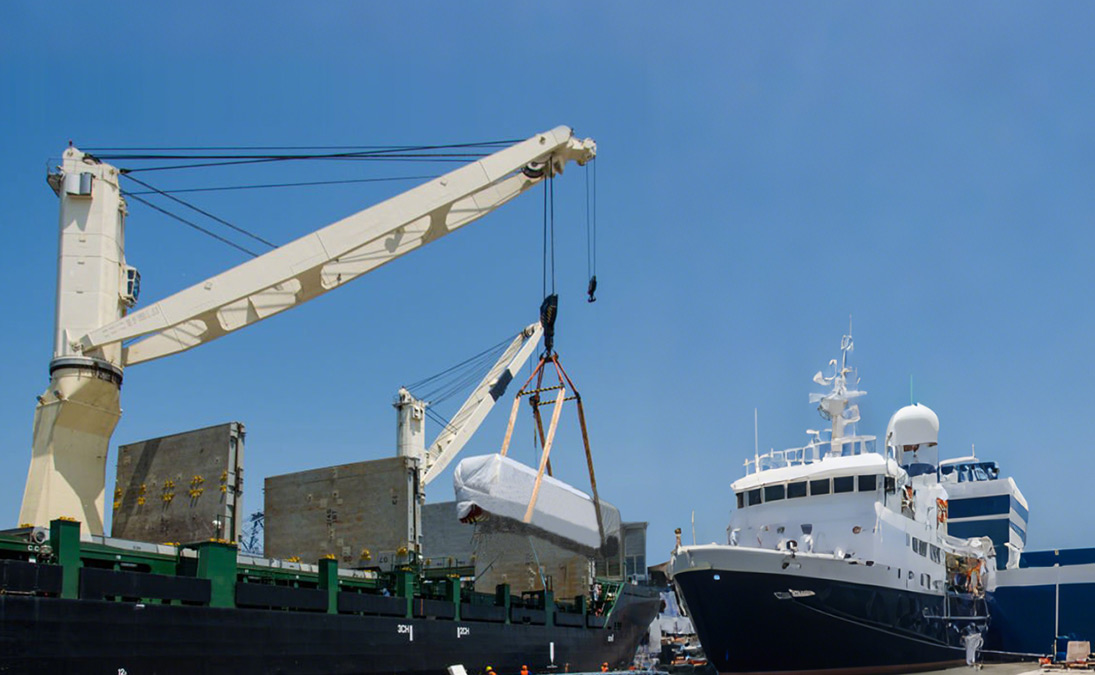

Grab Bucket

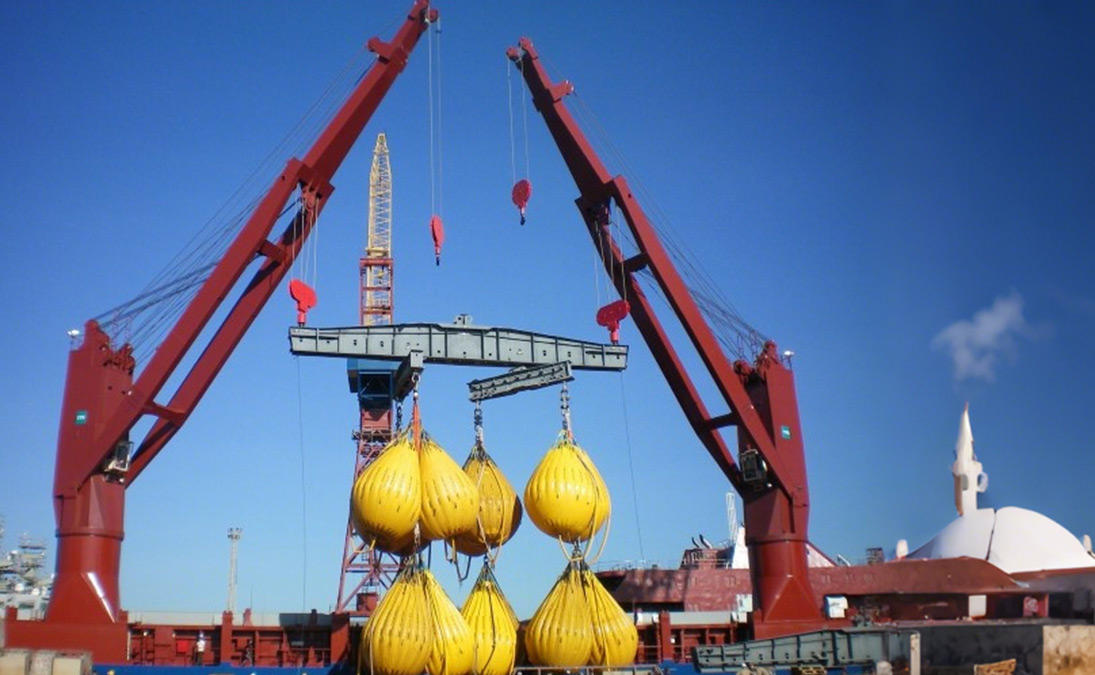

Soft Sling

Container Lifting Spreader

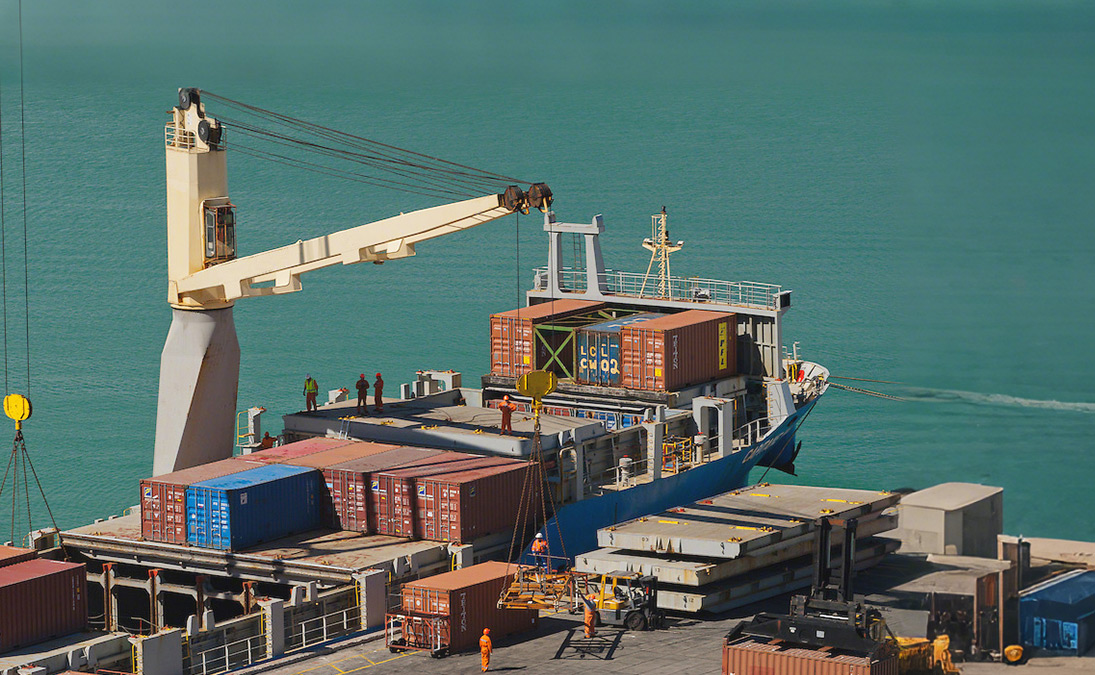

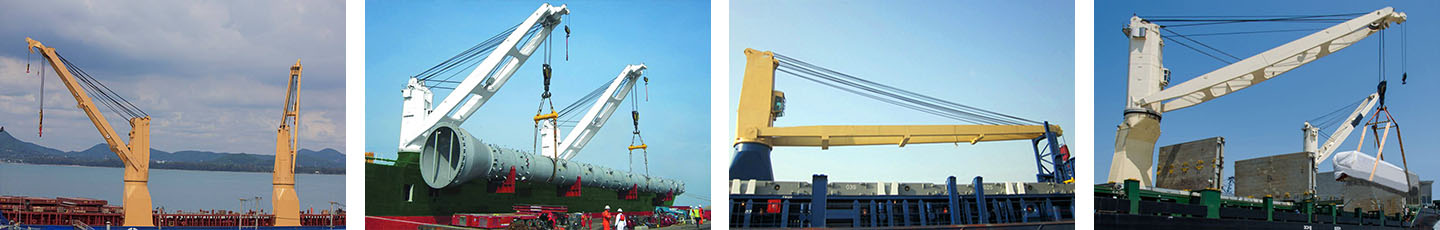

Various Lifting Devices are Used in Combination

Various Lifting Devices are Used in Combination

Advantage

Personalized Customized Design

Ship deck crane can be customized to suit ships of different tonnage, shape and size, to meet specific needs and requirements.

Factory Price

Factory direct economical price, no middleman difference, to help you minimize costs.

Quality Control and Supervision System

Establish quality inspection department and supervision mechanism, including raw material testing, supplier certification testing, production personnel skills testing, production process control mechanism, after-sales service feedback mechanism, etc. It is better to achieve a complete circle of quality control.
At the same time, we combine internal supervision with third-party supervision to ensure the effectiveness of the supervision mechanism. And we also invite customers to visit and supervise the site.

One-stop Service System

Pre-sale, upon receiving your inquiry, we will reply to your questions as soon as possible and provide a timely quotation.
On-sale, we'll keep track of the details, design details, production details, etc.
After-sale, we will arrange professional engineers to guide the installation through online and offline ways. And we will visit regularly to solve relevant problems timely.

Certifications

At present, we have more than 30 patents, and we obtain certifications such as quality, environment and safety.
GB/T19001-2016/ISO9001:2015; GB/T24001-2016/ISO14001:2015; GB/T45001-2020/ISO45001:2018, ESC CE, CCS, ABS, BV, RINA and so on.

Rich Experience and Lots of Project Cases

We are a professional deck crane manufacturer. Our company has a strong research team that includes over 20 senior engineers and technical personnel, and we employ more than 400 staff members. With 13 years of production experience, we have exported our products to over 40 countries and have numerous project cases available for reference.

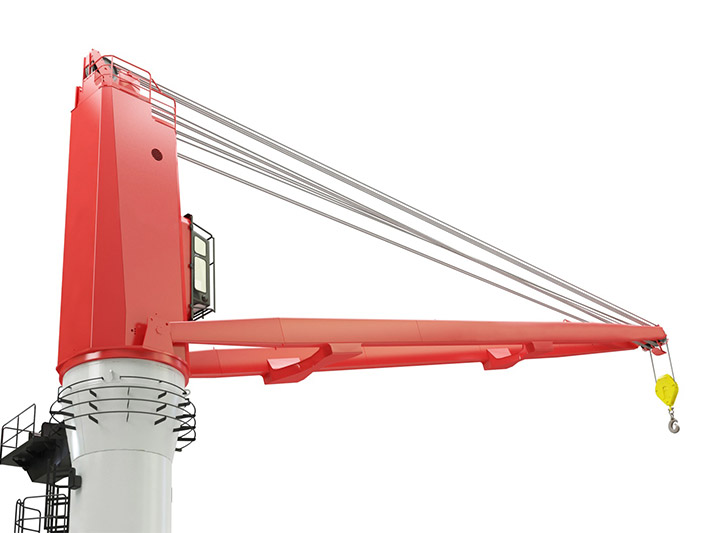

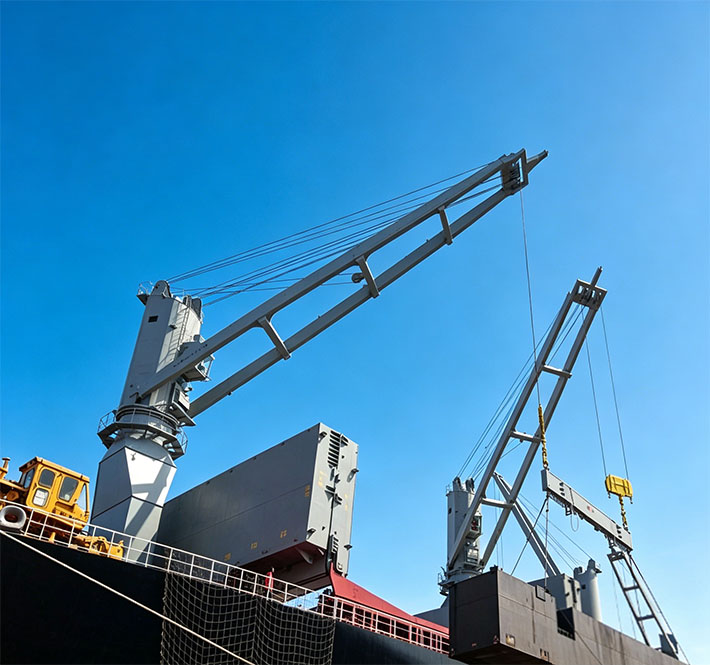

Details

Exquisite Surface Treatment Process

The surface treatment of deck cranes should go through processes such as polishing, rust removal and painting to ensure compliance with standard production specifications.

Welding Details

The interface of the structure adopts mature welding technology to prevent cracks and slag inclusion. We will conduct flaw detection on the welding parts to ensure that the weld is tight and strong.

High-performance Materials and Anti-corrosion Treatment

We use high-strength metal materials which have the functions of weather resistance and corrosion resistance, and use epoxy zinc-rich primer and polyurethane coating to provide long-term corrosion resistance.

Testing and Acceptance

We will carry out a strict acceptance procedure for the equipment. We perform static, no-load and overload functional tests, and provide a full set of documentation for the equipment, such as operation manual, maintenance manual, inspection report, tripartite report, etc.

Compact and Anti-vibration Structure

Due to the limited space and frequent shaking of ships, we use lightweight and high-strength materials (such as aluminum alloy or special steel), which is compact, and the joints are reinforced to reduce vibration damage.

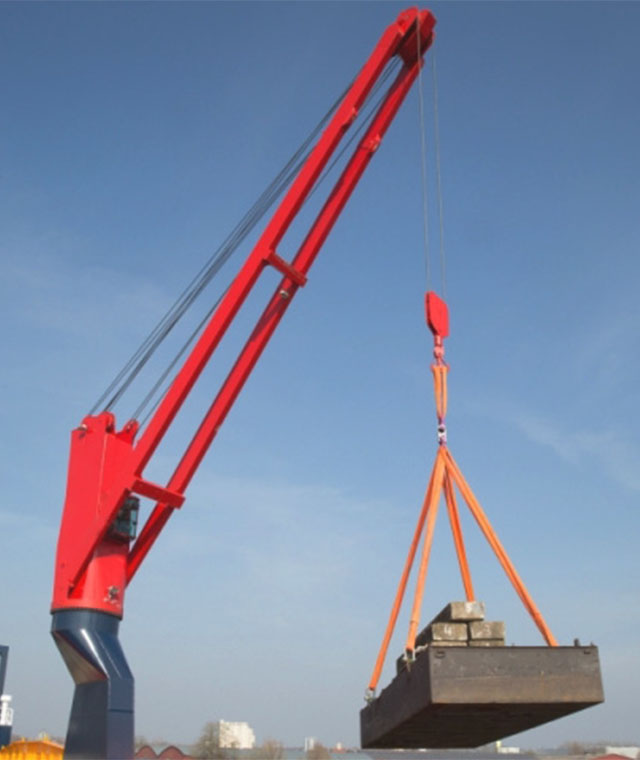

FAQ

Can you provide the deck crane with telescopic/foldable boom?

Yes, we can provide marine crane of telescopic arm, folding arm or straight arm.

Can you provide CCS or BV certificate?

Yes, we already have their support in many projects.

What is the delivery time for hydraulic deck crane?

The delivery cycle of deck crane is generally 50 to 60 days, with 15 days of factory commissioning and testing time. We follow strict production standards and testing standards to produce high quality products for you.

Can you guide the installation and commissioning?

Yes, we will provide you with the installation manual firstly. And we can complete the installation service in two ways. We guide equipment installation with online video. And if you need, we will send engineers to the site to guide the crane installation and commissioning and training.

Do you do the loading test & commissioning before delivery?

Yes, our product will undergo pre-assembly and factory testing before delivery to confirm its performance and functionality. We will provide video with you.

How long is your warranty?

12 months from the B/L date, the free parts are provided (excludes man-made damage). We will provide customers with free wearing parts to reduce customer maintenance costs in later use.

Do you have the video of your crane’s working site?

Yes, if you have need, we will provide you with relevant video.

Can the arm/boom of your crane rotate?

Yes, we can provide the rotate boom

Can we visit your factory?

Warmly welcome to you any time, we will show you around our factory.

What countries did you sale your crane to?

Our equipment has been exported to the United States, Canada, Chile, Mexico, Malaysia, Thailand, Vietnam, Philippines, Myanmar, Indonesia, Singapore, Pakistan, India, Kazakhstan, Mongolia, Saudi Arabia, The United Arab Emirates, Israel, Germany, Romania, Russia, Poland, Nigeria, Egypt, Angola. Spain, Czech Republic, Singapore, etc.

Customize Your Lifting Solutions

Please refer to the following tips

1. The product you need:

2. What will the product be used for:

3.Product specs: (lifting capacity, span, lifting height)

4.Project introduction: (project working site, project stage, etc)

Tips: After you submit the quotation, our sales will contact you in the first time to provide professional answers and further support, provide you with the best solution, and ensure timely follow-up. or send us an email viainfo@haitaicrane.com .

Deck Crane

What is a Deck Crane?

Projects

50 Ton Marine Travel Lift

10 ton European Bridge Crane

150 Ton Marine Travel Lift

25 Tons Double Girder Gantry Crane

30 Ton Marine Travel Lift

100 Ton Marine Travel Lift

High quality gantry crane manufacturer selected for you

Reliable Ship Deck Crane Manufacturer

Drawing

Specification

Safety Design

Protection Safety Devices

Performance

Feature

Certifications We Offer

Spreader Option

Application

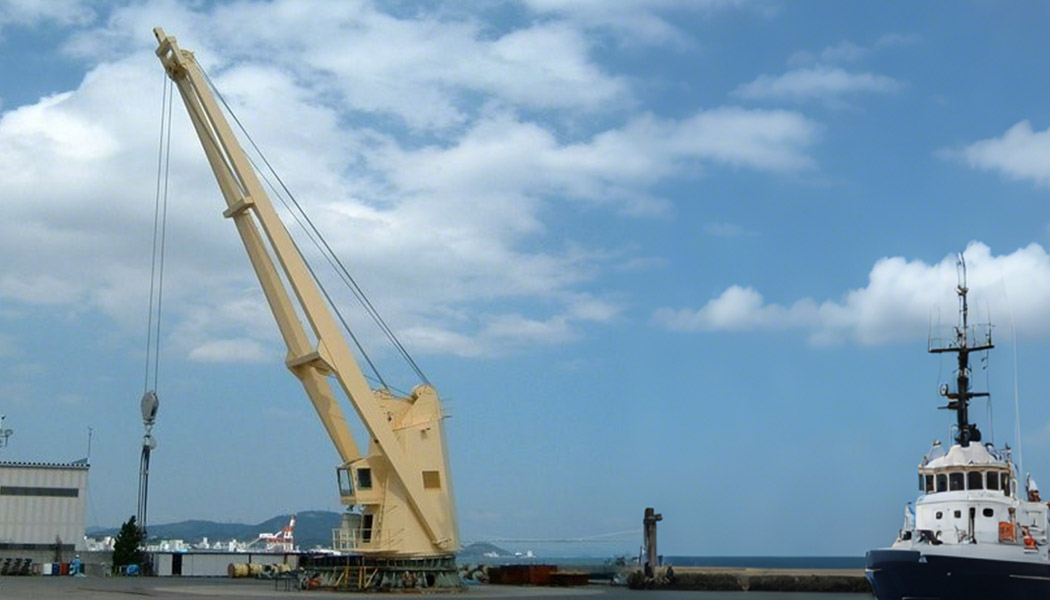

Ship’s Deck

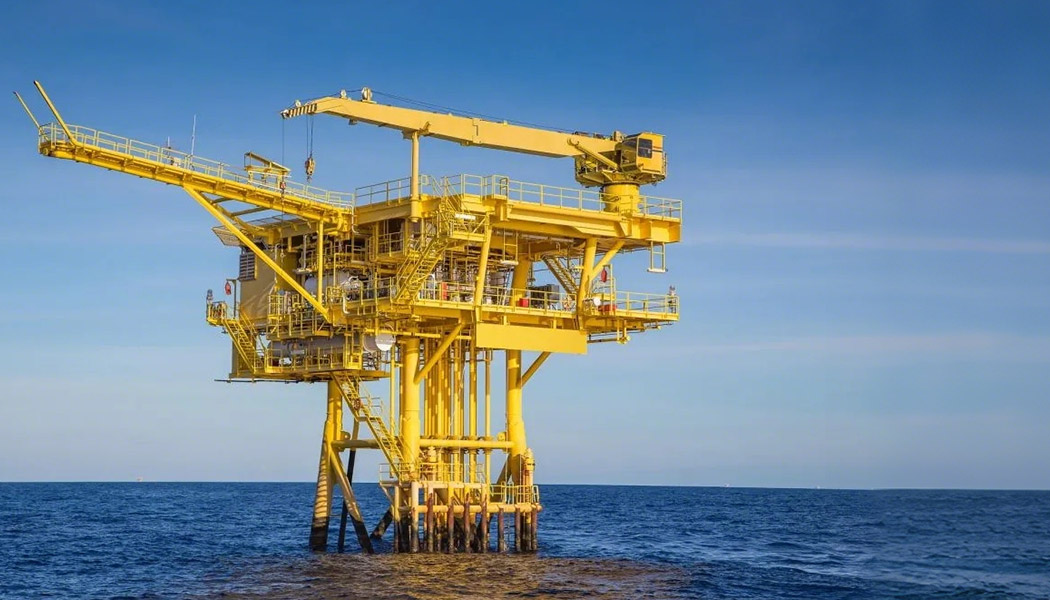

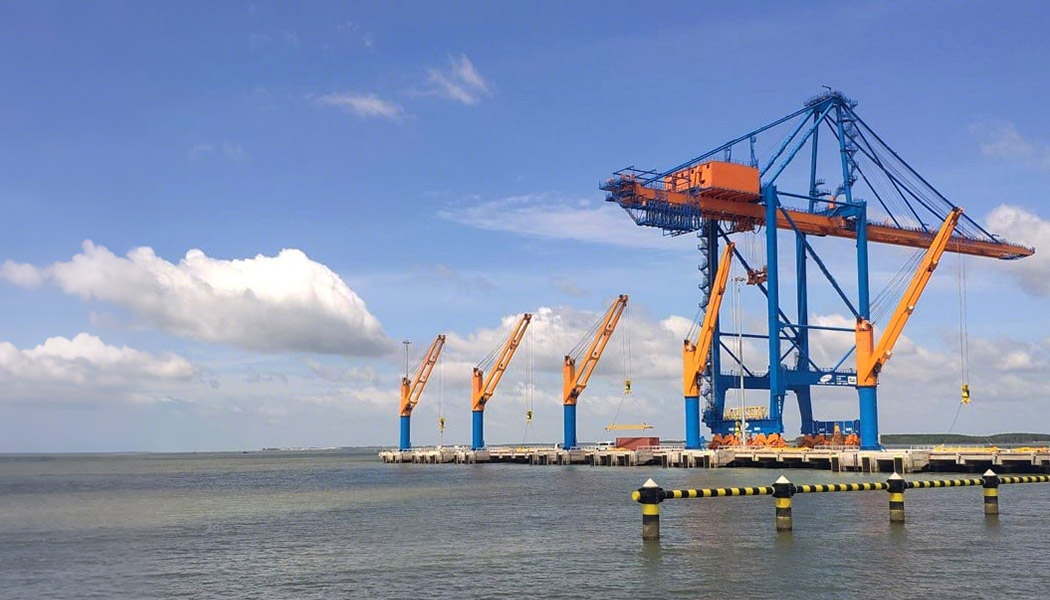

Offshore Platform

Port and Pier

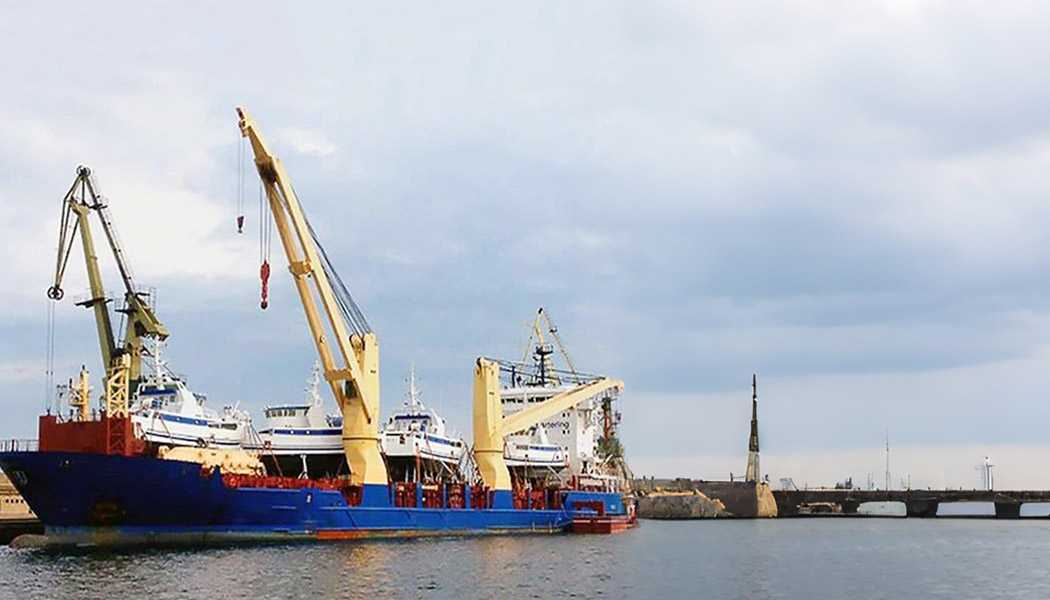

Construction Site
