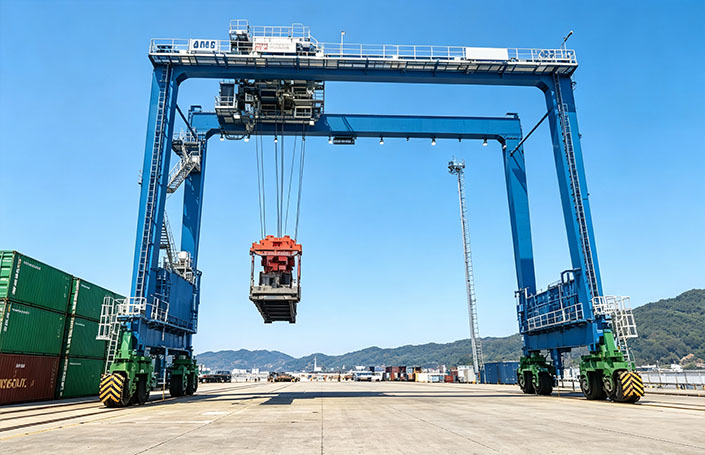

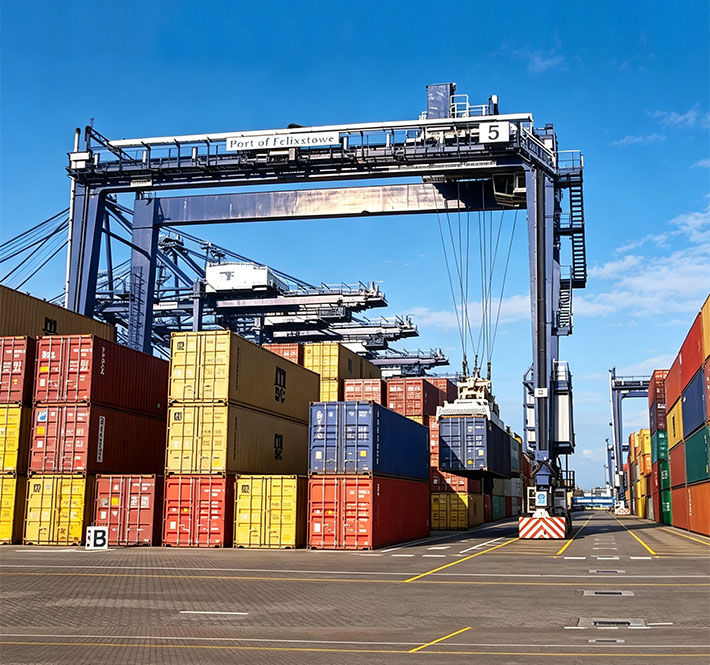

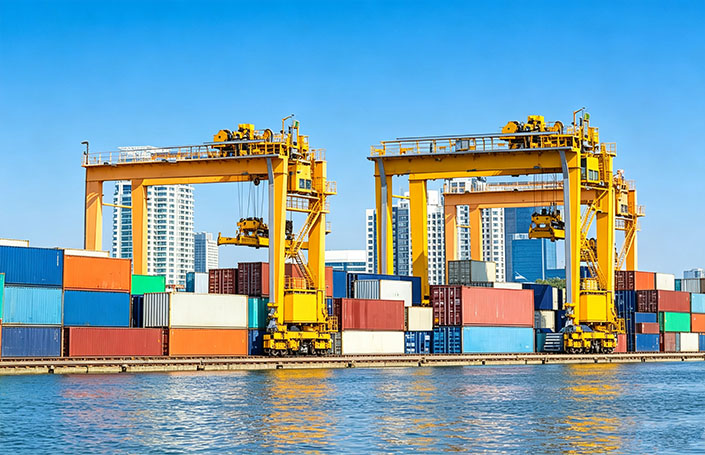

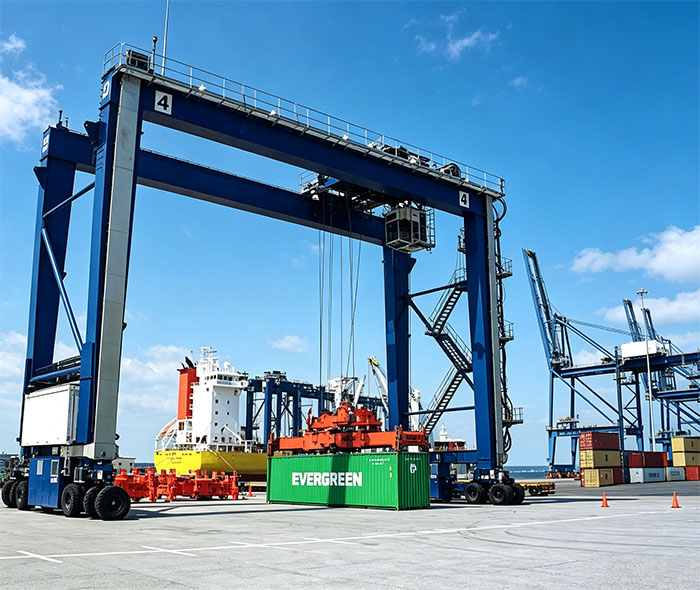

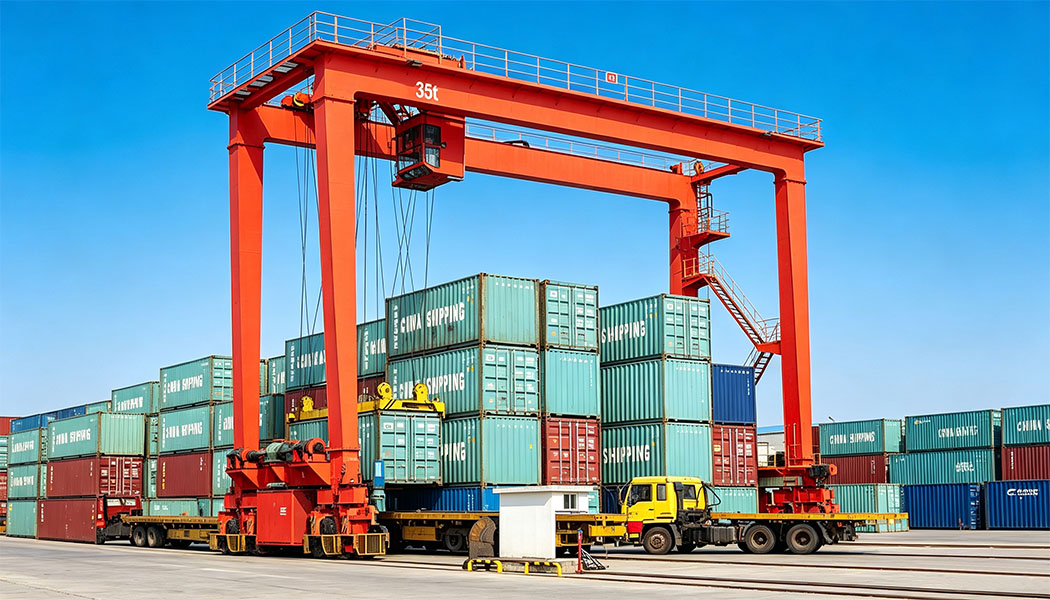

RTG Crane is an efficient, flexible and reliable lifting equipment, specially designed for the port and logistics industries. Our RTG Crane can provide custom tonnages ranging from 30 tons to 50 tons to meet the needs of different customers. It adopts an electrical control system, featuring extremely high lifting capacity and stability, and is capable of easily handling all kinds of complex operations. Whether it is an airport terminal or a freight station, RTG Cranes can significantly enhance operational efficiency and reduce operational time.

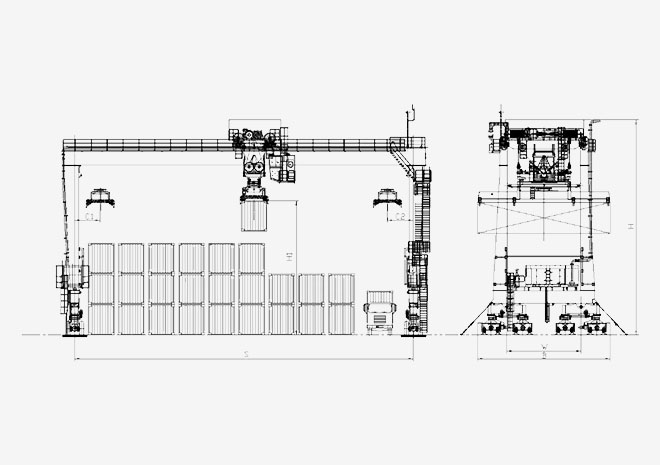

| Technical Parameter of RTG Crane | ||
| Capacity (under spreader) (t) | 35, 40 | 40 |
| Span (m) | 23.47 | 23.47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Lifting Speed (m/min) | 13/26,23/52 | 12/18,18/28 |
| Cross Travel Speed (m/min) | 50,70 | 24 |
| Long Travel Speed (m/min) | Full Load-90, Without Load-130 | Full Load-20, Without Load-40 |
| Work Duty | A7, A8 | A6, A7 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20′,40′,45′ | 20′,40′,45′ |
| Spreader Rotating Angle | ±5° | ±5° |
| Max. Wheel Load (kN) | 310 | 310 |
| Total Rating (kW) | 150,230 | 110,150 |
| Power Supply | Electric, Diesel engine, Electric-Diesel drive | |
Note: The above data is only for reference. The RTG Crane can be customized based on customer requirements, such as lifting capacity, span and lifting height, etc.
Yes, we can provide CE and other certifications.

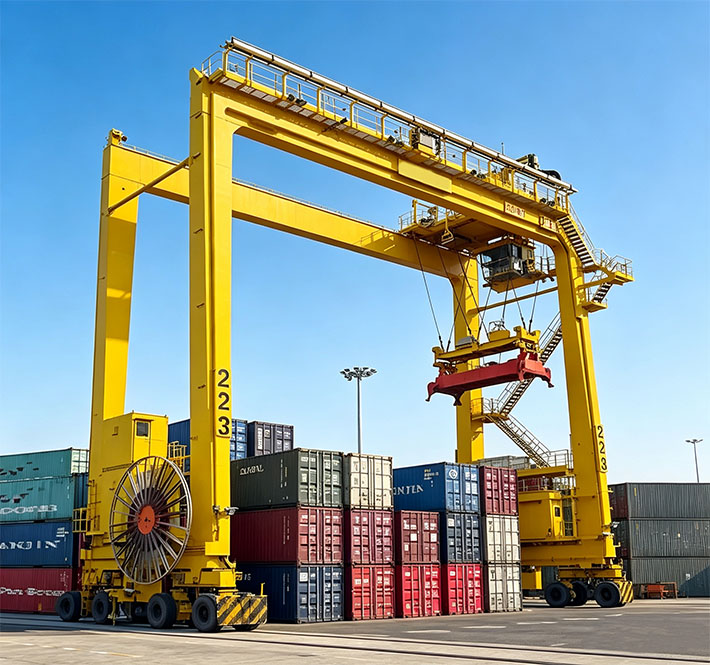

The maintenance frequency of RTG Crane depends on the usage intensity and the specific design of the equipment. RTG Crane needs regular inspection and maintenance, such as checking the tires, lubrication system, hydraulic system, braking system, etc. It is generally recommended to conduct a comprehensive inspection once a month or every quarter, while some key components may need to be replaced or maintained annually.

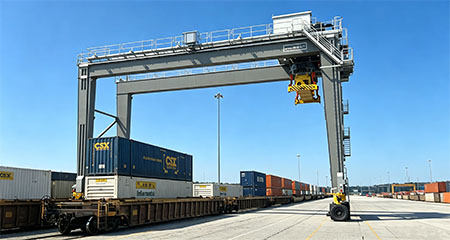

RTG Cranes are usually equipped with a variety of safety functions, such as overload protection, anti-collision systems, emergency stop buttons, limit switches, etc., thereby improving the safety and reliability of operation.

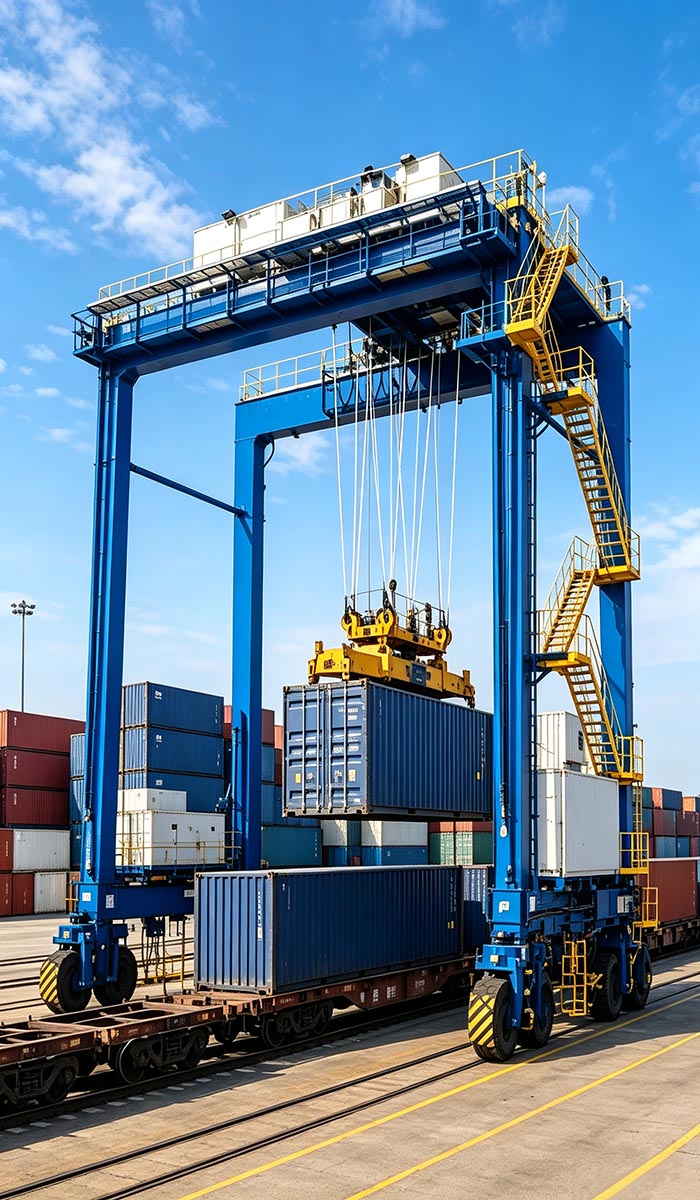

When choosing the appropriate RTG Crane configuration, you should consider the following factors: the size and space of the site, the weight and height requirements of the container or goods, the load capacity of the crane, the lifting height, span and stacking capacity, as well as the energy demand (electric or diesel). In addition, operation speed, fuel efficiency and maintenance convenience are also key factors that need to be considered.
12 months from the B/L date. Within 12 months warranty period: free parts provided (excludes man-made damage)
Around 80 working days for the general solution.
If you need, our engineer can go to your site to guide your installation & commissioning. This part cost is excluded in our equipment offer.
The electric RTG Crane is powered by an external power source and is suitable for places with stable power supply. It is also more environmentally friendly and has less noise.
The diesel RTG Crane relies on diesel engines and is suitable for areas without a stable power supply. The diesel version of the RTG Crane is usually more suitable for outdoor and long-term operations, but it may incur higher fuel and emission costs.
