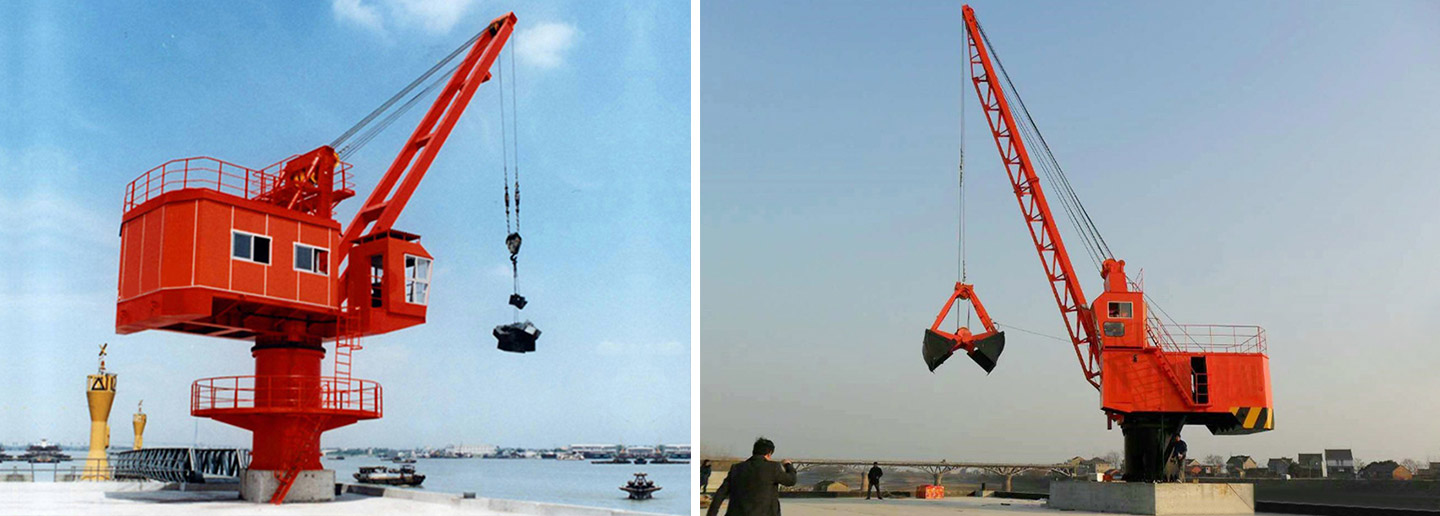

The single jib portal crane is a type of mobile portal crane, portal jib crane with a single horizontal jib supported by a vertical mast or column at one end. The portal jib crane operates on rails or tracks, allowing it to move horizontally along a defined path while lifting and lowering loads using a hoisting mechanism. The mobile portal crane is typically designed for operations where space is limited but significant lifting capacity is required. The portal jib crane has the characteristics of simpler design, limited movement, and is best suitable for lighter loads.
As port crane manufacturers, Haitai Heavy Industry is committed to the design, development and production of high-performance lifting equipment to meet the needs of various industries around the world for heavy lifting. It can also provide customized solutions to ensure the performance and stability of the crane and adapt to different operating environments. Haitai Crane has also obtained international certification and standard certification, ensuring that its products comply with global industry norms, guaranteeing high quality and reliability, and winning wide trust and praise from customers.

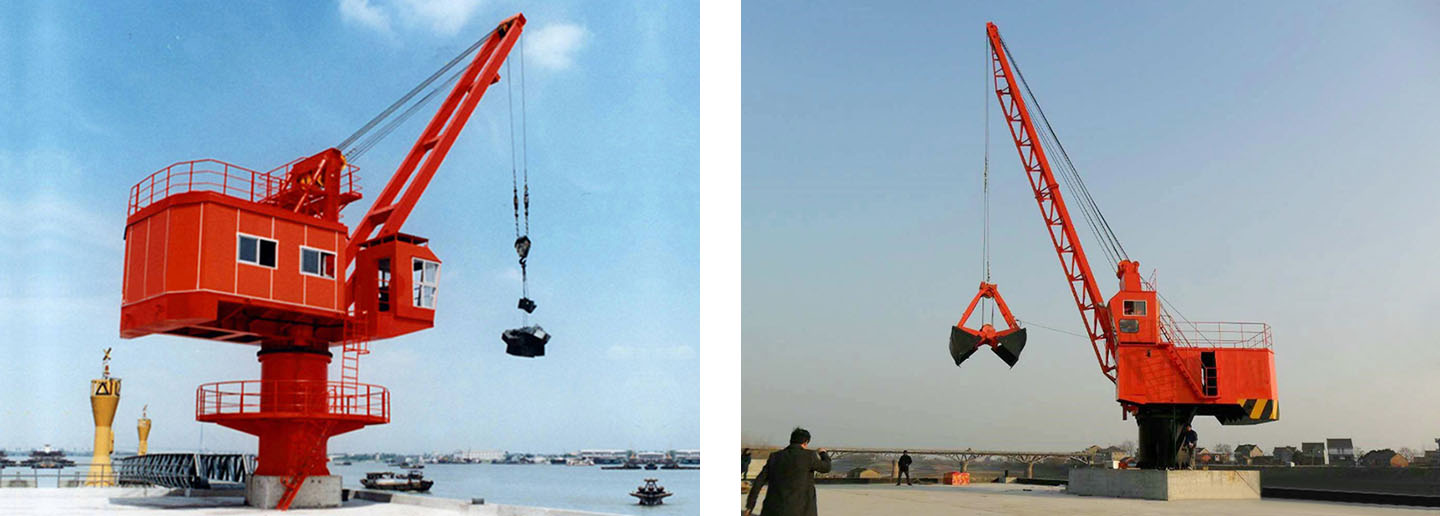

Fixed Type Portal Jib Crane

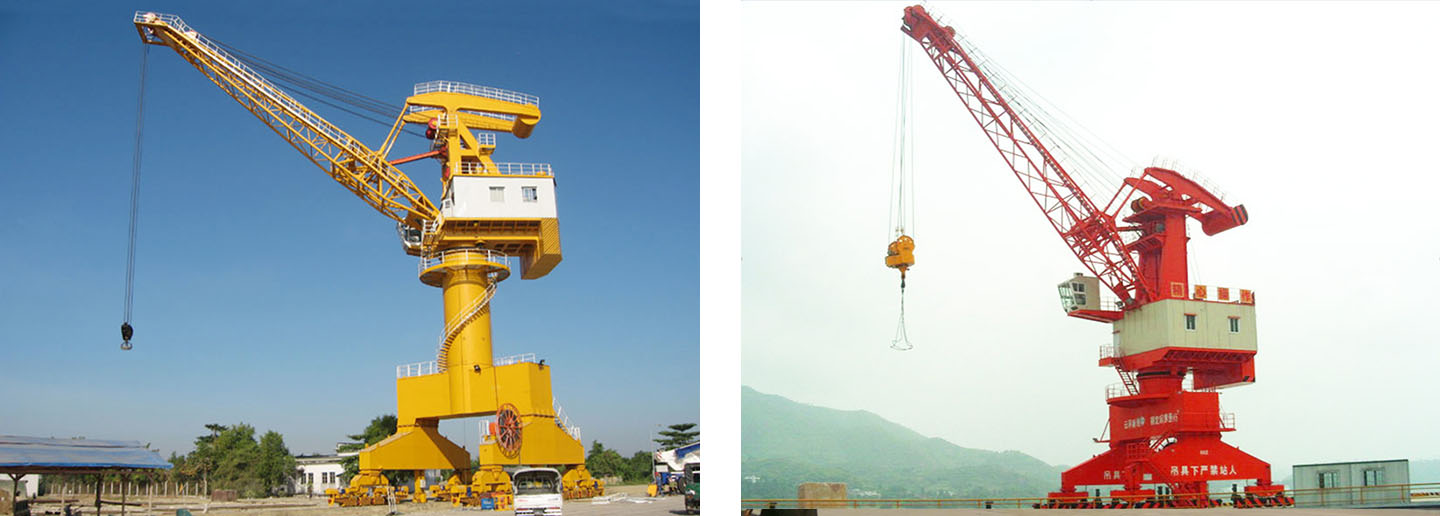

Rail Mounted Portal Jib Crane
| Model | MQ518 | MQ1030 | MQ1625 | MQ2519 | MQ2525 | MQ4019 | |
| Capacity | 5T | 10T | 16T | 25T | 25T | 40T | |
| Working Radius | Max | 18m | 30m | 25m | 19m | 25m | 19m |
| Min | 8m | 8.5m | 10m | 10m | 9m | 9m | |
| Lifting Height | Above Rail | 12m | 25m | 16m | 16m | 16m | 18m |
| Below Rail | 13.5m | 15m | 15m | 15m | 12m | 15m | |
| Working Speed | Lifting Speed | 40m/min | 60m/min | 35m/min | 23m/min | 28.4m/min | 17.3m/min |
| Luffing Speed | 30m/min | 50m/min | 21m/min | 21m/min | 15.5m/min | 15.5m/min | |
| Slewing Speed | 1.32r/min | 1.5r/min | 1.2r/min | 1.2r/min | 1.03r/min | 1. 03r/min | |
| Travelling Speed | 25m/min | 25m/min | 16.5m/min | 16.5m/min | 18.2m/min | 18.2m/min | |
| Max Wheel Pressure | 190KN | 230KN | 200KN | 200KN | 230KN | 230KN | |
| Gauge | 7.5m | 10.5m | 10.5m | 10.5m | 10.5m | 10.5m | |
| Basal Spur | 7.5m | 10.5m | 10.5m | 10.5m | 10.5m | 10.5m | |
| Recommended Track | 43kg | QU70 | QU70 | QU70 | QU80 | QU80 | |
| Installed Capacity | / | / | / | 216.8KW | 262KW | 262KW | |
| Power Supply | 3-Phase AC 50HZ 380V | ||||||
Note: The above data is only for refence. The portal crane can be customized based on client request, such as lifting capacity, working radius and lifting height, etc.
We need to learn something about the portal crane in order to provide you design and offer.
It is based on the portal crane capacity and quantity. Generally, one set portal crane delivery time around 4 months.
12 months warranty since BL date.
Yes, we can. If your side needs us to do the installation, we could send our professional engineers to do the work. Alternatively, if our engineers can work with our installation team, the installation will save a lot of time. Contact us for a suitable installation solution.
Yes, our portal crane can support the diesel engine or hybrid power system. Choose according to your actual needs.
Yes, our portal cranes have obtained ISO 9001, CE and other certificates.
Yes, the portal crane can be customized based on your actual needs such as special spreader and others.
Yes, we can supply the spare parts.
Regarding the portal crane maintenance, we have the following options:
