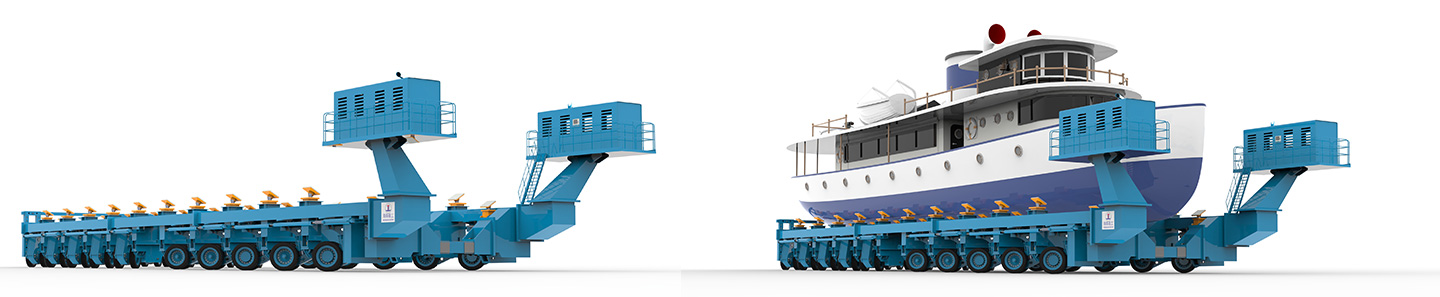

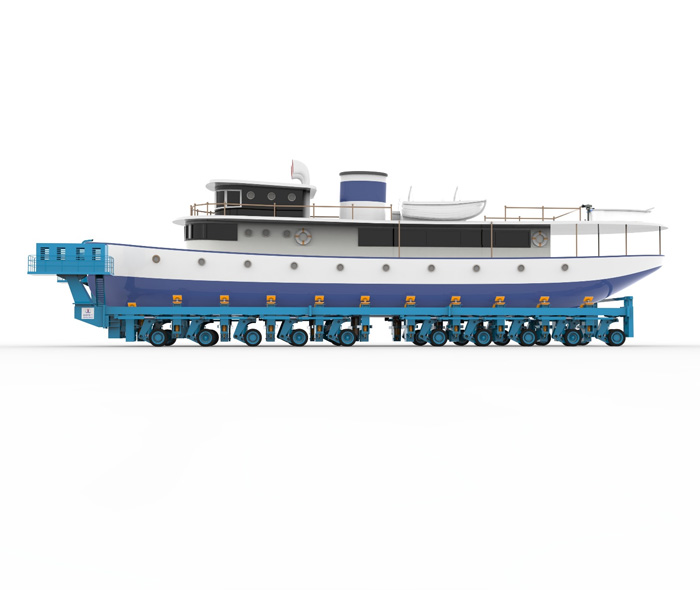

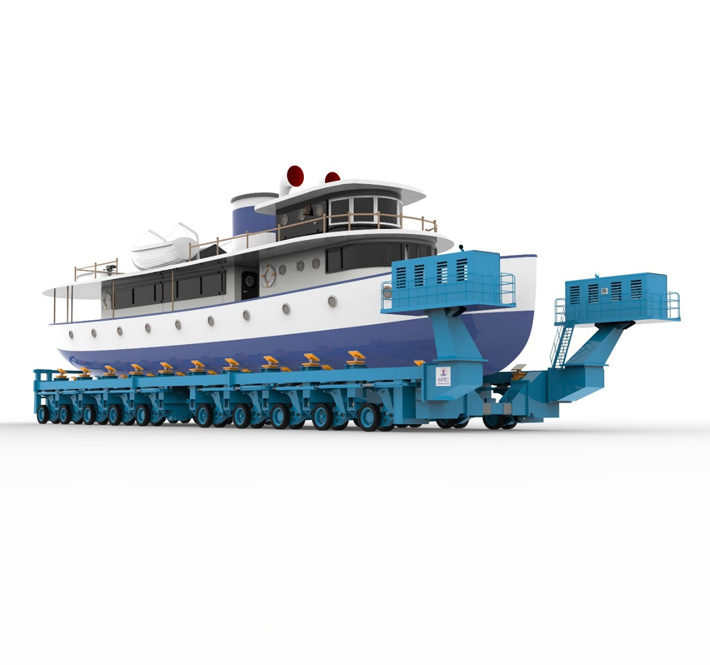

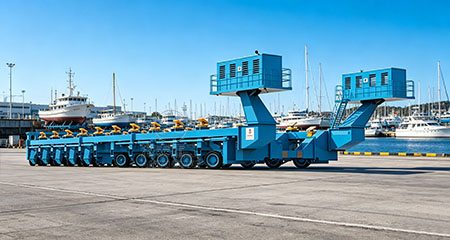

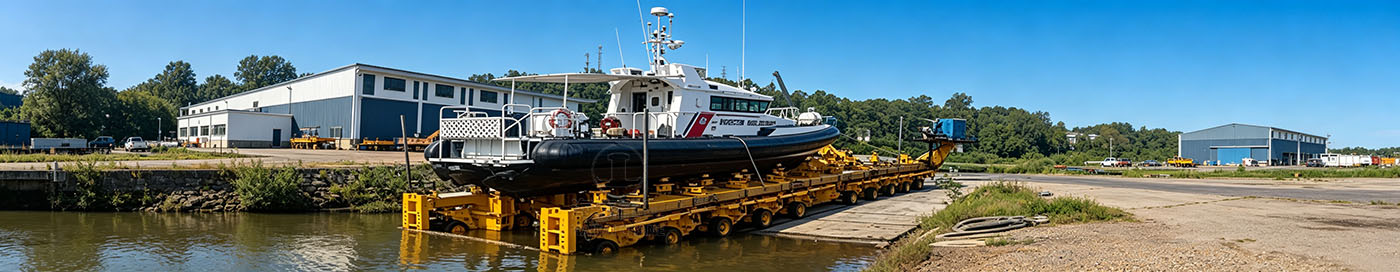

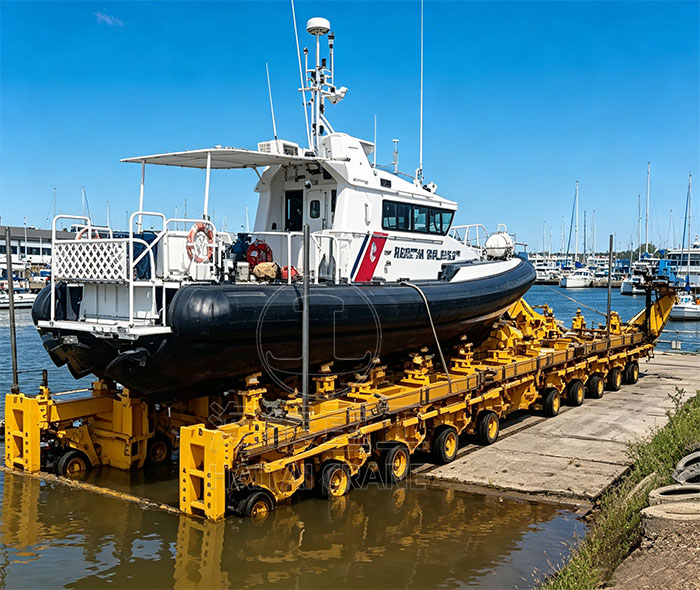

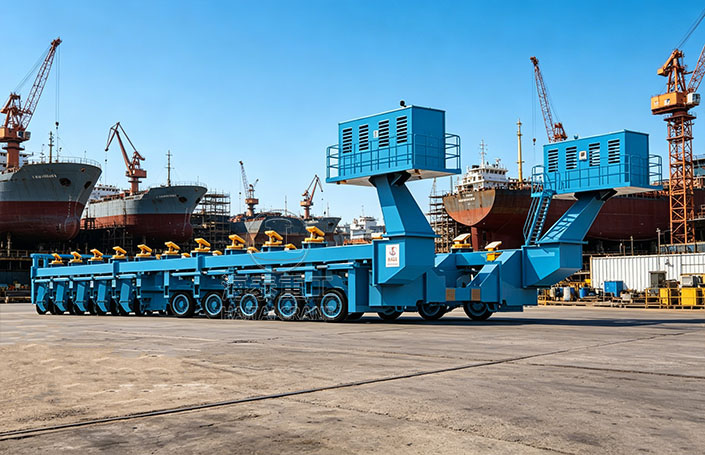

Boat Trailer is a specialized vehicle designed to transport boats and yachts over land and facilitate their launch into the water. The boat trailer is equipped with a robust frame, wheels, and launch mechanisms that allow for smooth and easy transport, whether you’re traveling to a marina or between locations. In addition to its land transport capabilities, the boat trailer is also designed to launch vessels into the water, eliminating the need for a crane or additional equipment.

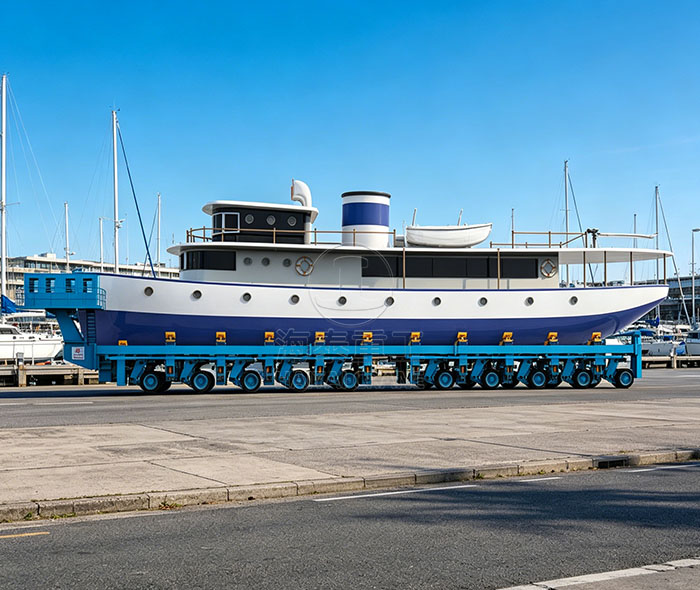

Our boat trailer is the ultimate solution for transporting and launching your vessel with ease. Whether you’re moving a small boat or a large yacht, this versatile boat trailer is built to handle both. Designed for convenience, it allows for smooth transportation over land and effortless launching into the water. Engineered with durability and reliability in mind, the boat trailer ensures that your vessel is securely transported to your destination or ready to be launched without hassle.
| Load Capacity | 100T |
| Running Speed on Flat Ground | 0-2 km/hr |
| Ramp Running Speed | 0-0.8 km/hr |

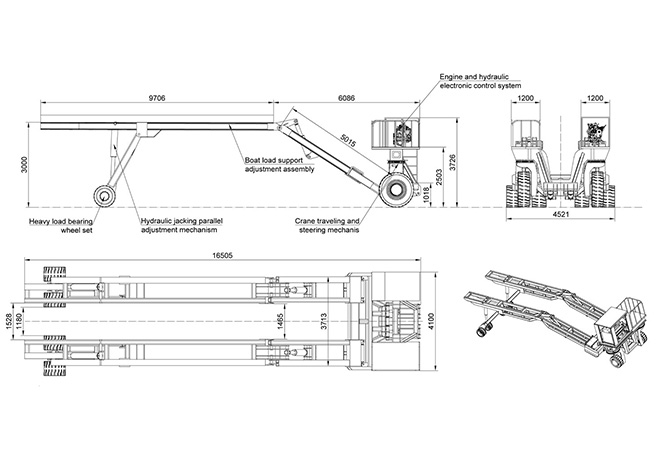

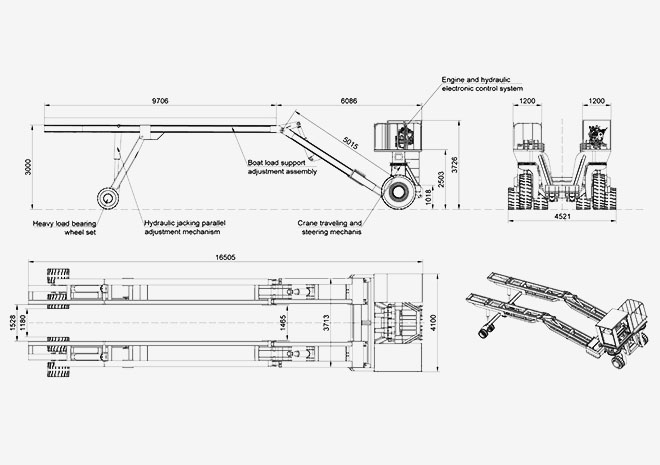

| Outer Width | 4521 mm |
| Working Class | A3 |
| Tire Diameter/Number | ~1340mm/6 pieces |
| Ground Pressure | ≤15 bars |
| Climbing Degree | 10% |

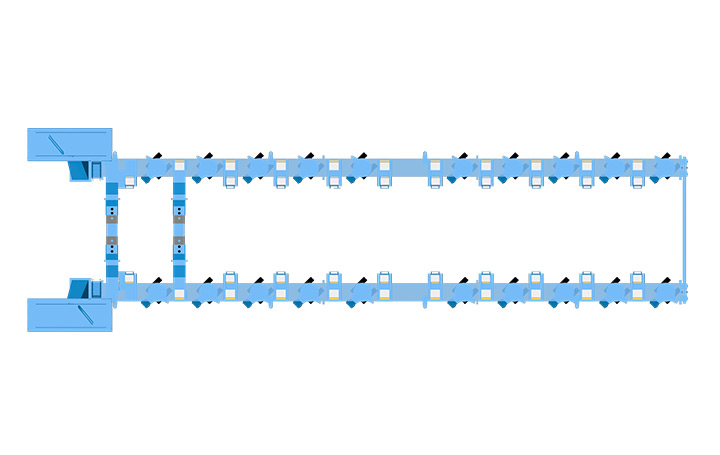

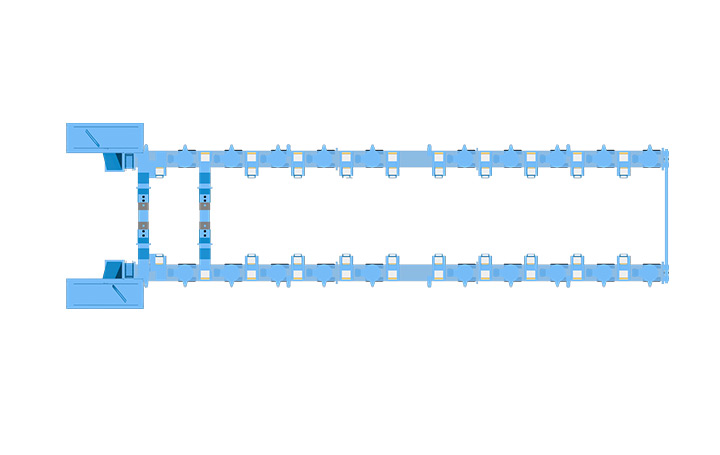

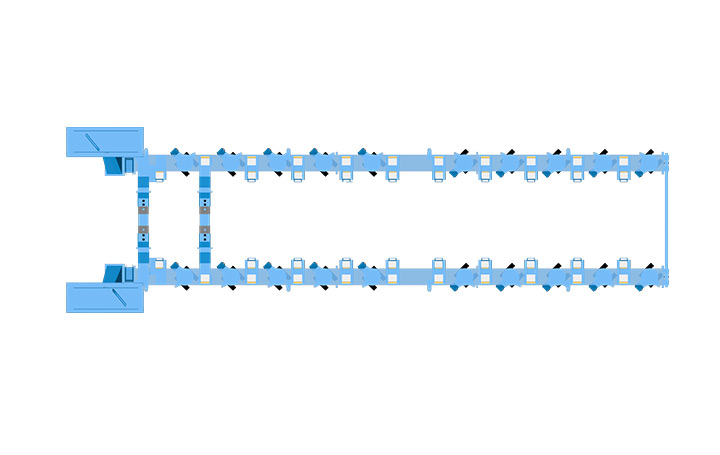

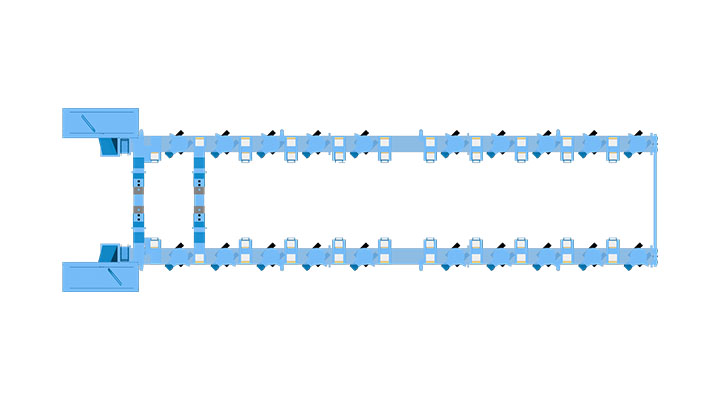

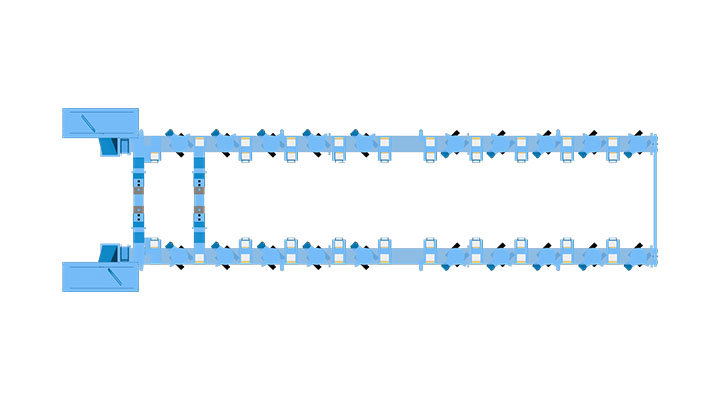

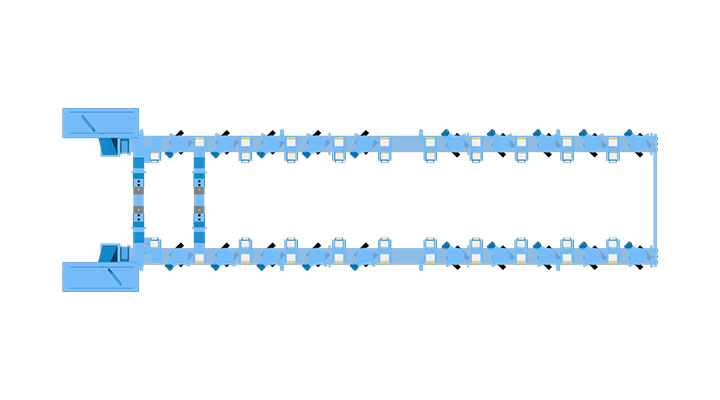

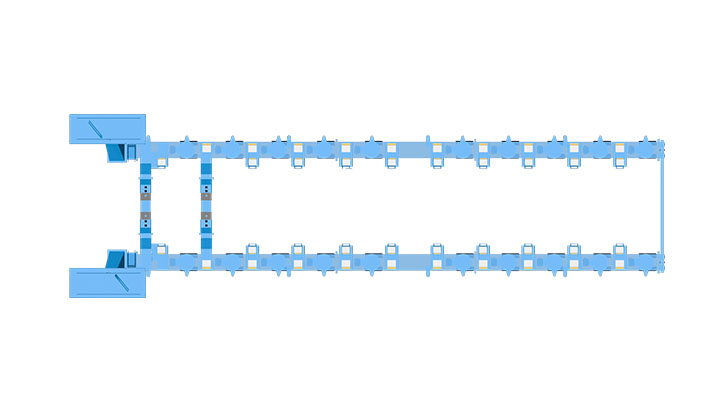

| Steering Mode | Go Straight, Turn Left/Right |
| Driving Form | Own Power, Hydraulic Drive |
| Operation Method | Remote Operation |
| Whole Machine Power | ~220 kW (Diesel Engine) |
| Adapt to the Ground | Solid Concrete Floor |
| Wading Depth | ≤2m |
Note: The above data is only for reference. The boat trailer can be customized based on customer requirements, such as load capacity, steering modes, etc.

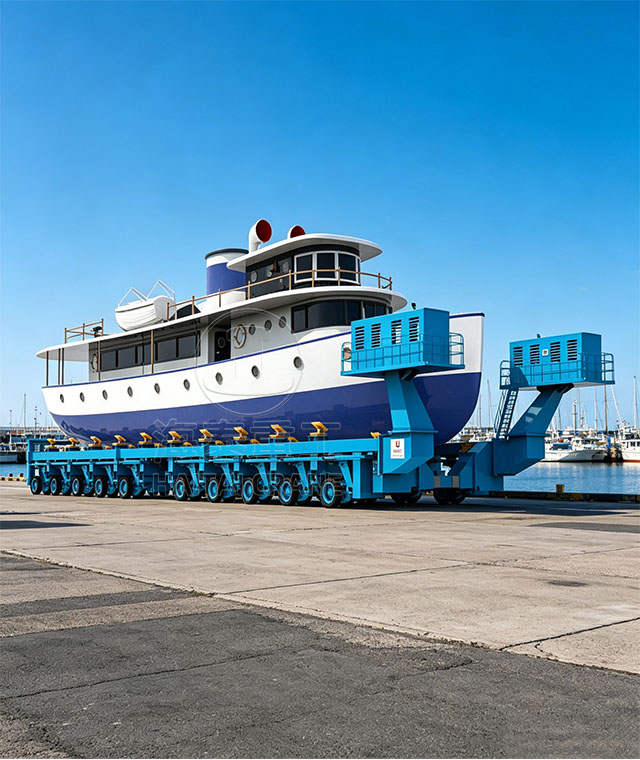

When choosing a boat trailer, first make sure that its length and width can accommodate your yacht. The maximum load-bearing capacity of the boat trailer must be greater than or equal to the self-weight of the yacht. When making a specific choice, it is recommended to select the appropriate boat trailer based on the length, width and weight of the yacht.

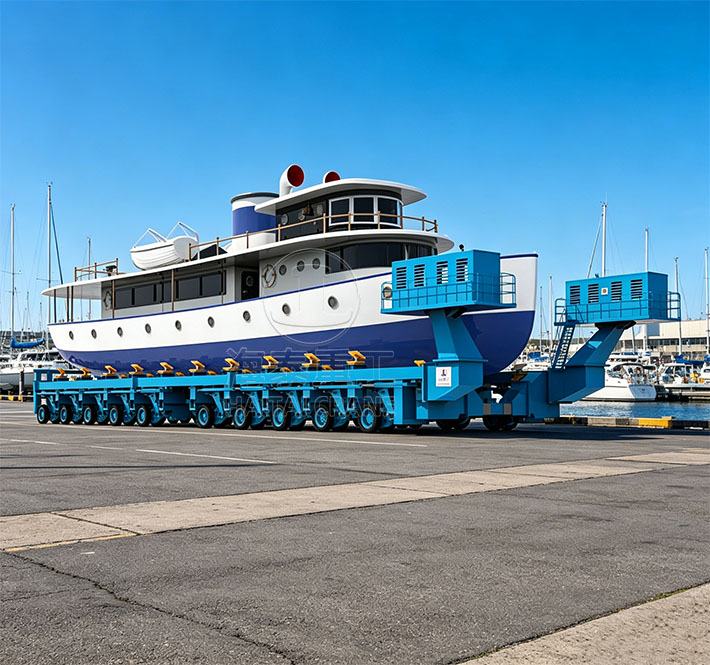

Regularly inspect the tires, brakes, lights and other components of the boat trailer. Especially after use at the seaside, the boat trailer needs to be rinsed with fresh water to remove salt and prevent corrosion. Check the axle every six months or annually to ensure that all parts are well lubricated.
Yes, we have gained them for many projects already. Our cranes comply with ISO 9001 quality management system certification, and have passed CE, ABS, BV and other international certifications to ensure the safety and reliability of equipment.
12 months from the B/L date. Within 12 months warranty period: free parts provided (excludes man-made damage).
The delivery time will be around 80 working days for the general solution.
Yes, warmly welcome to visit our factory any time.
