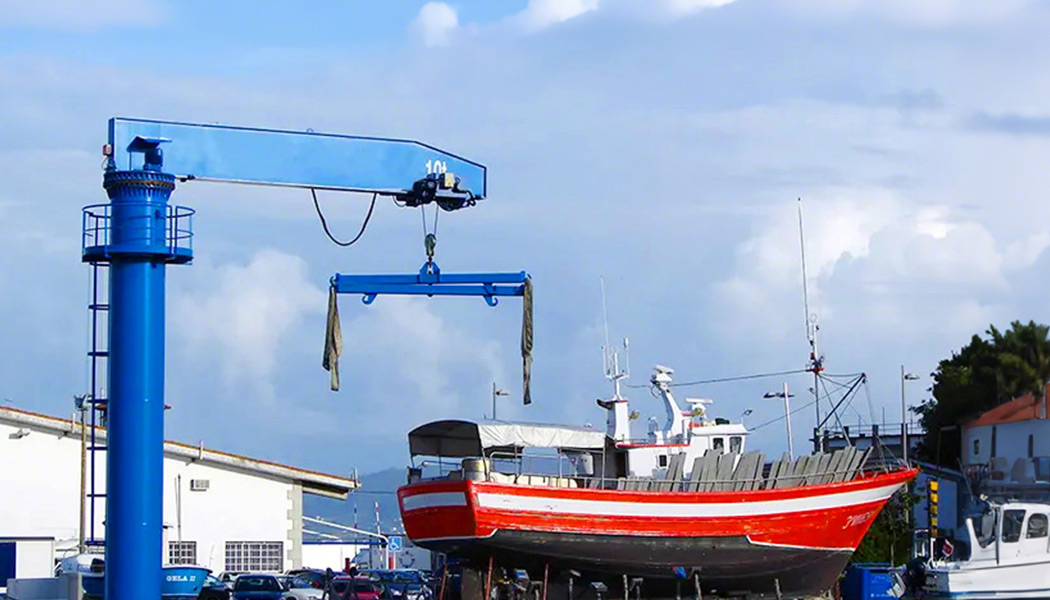

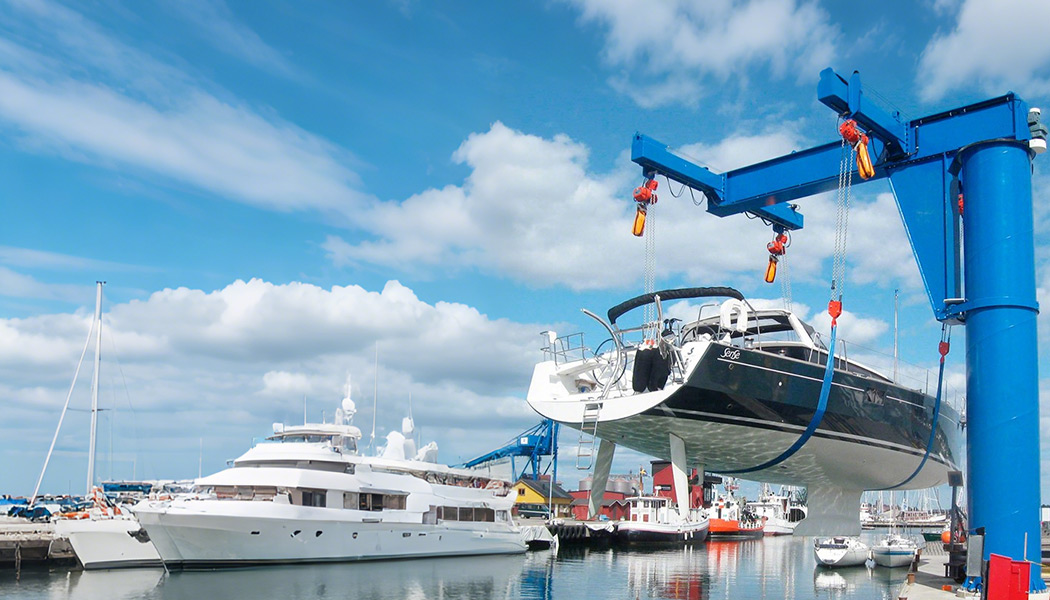

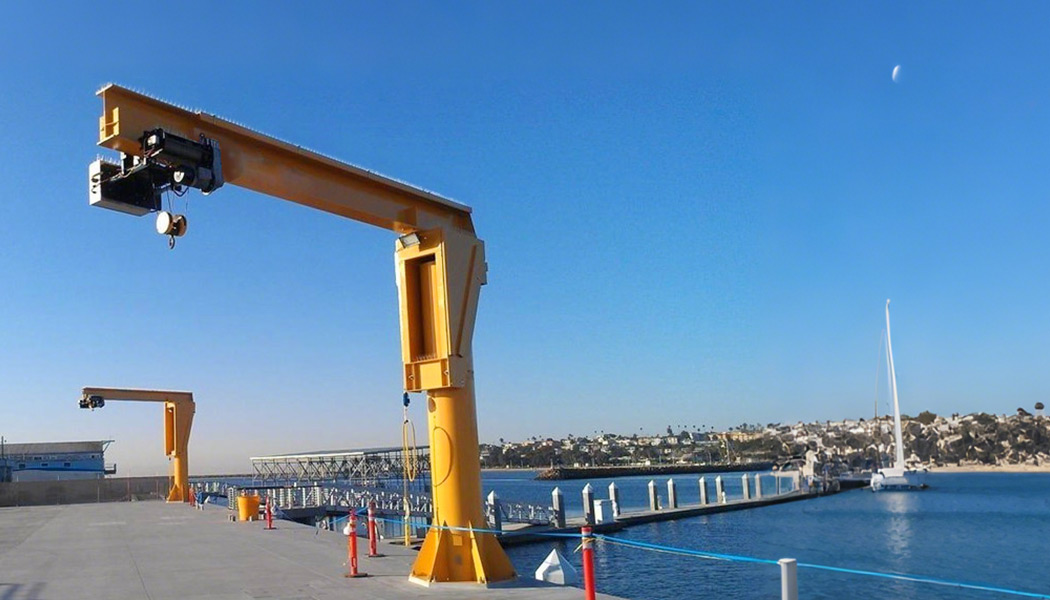

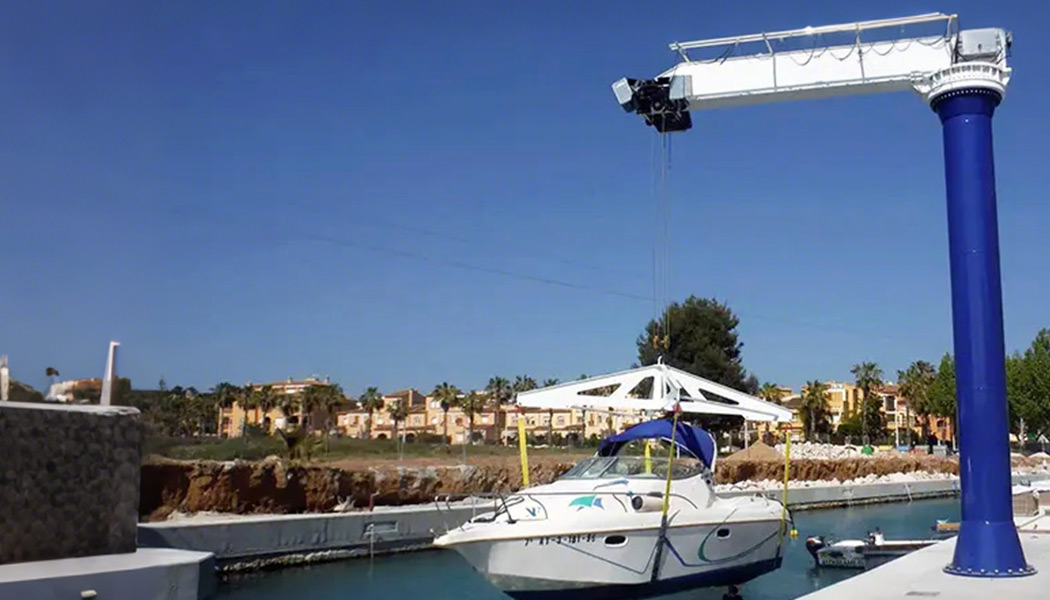

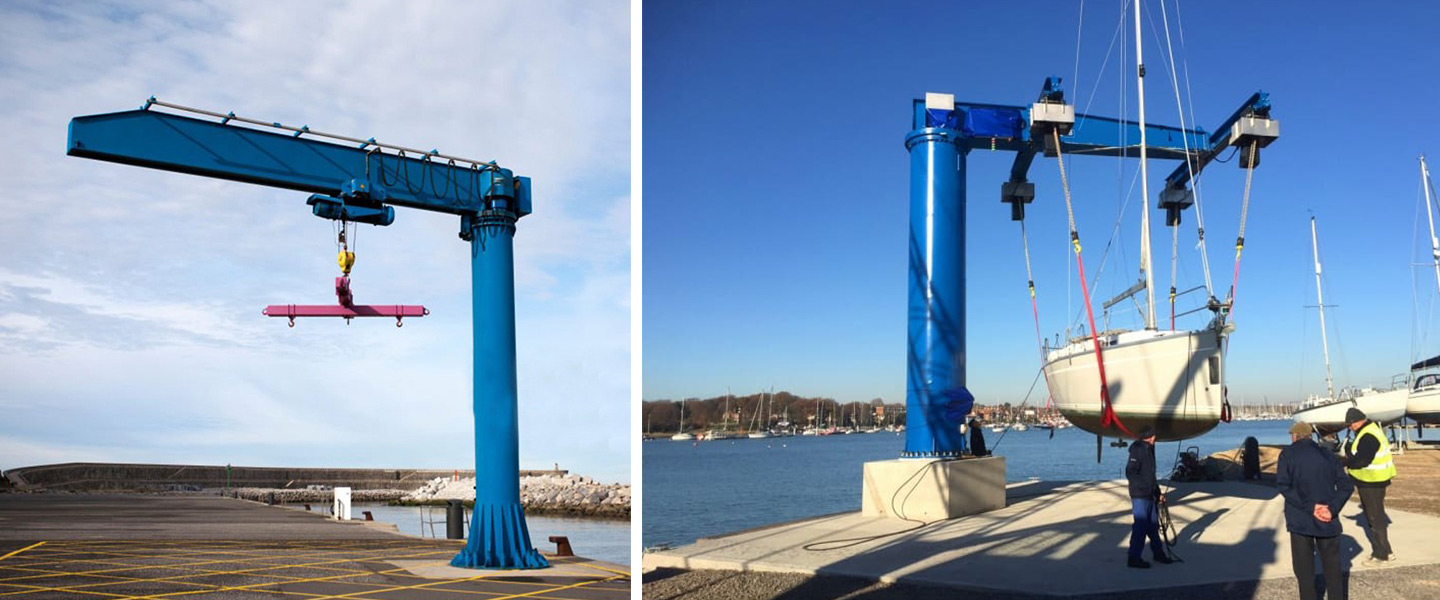

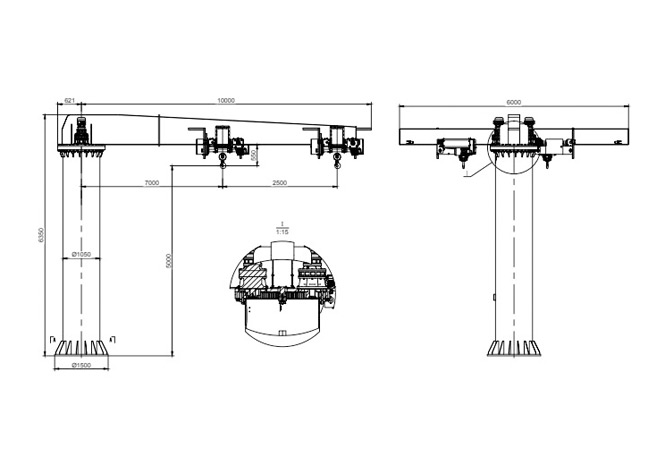

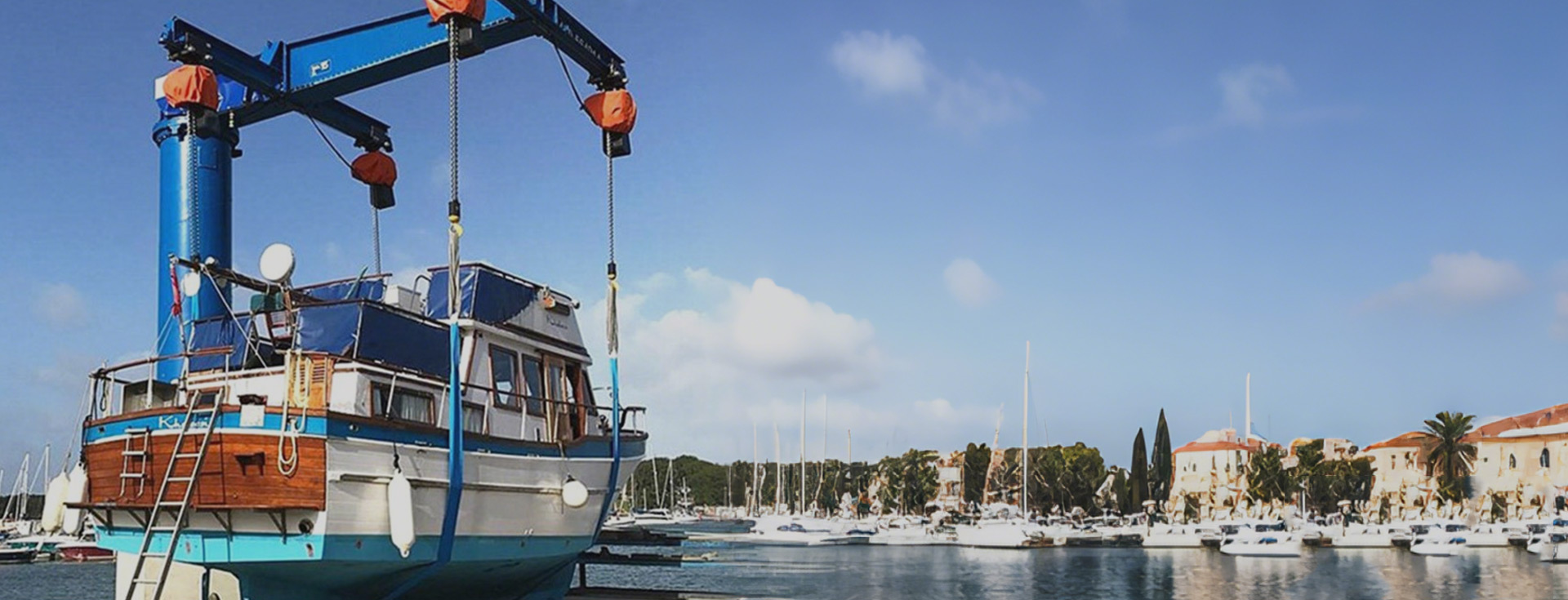

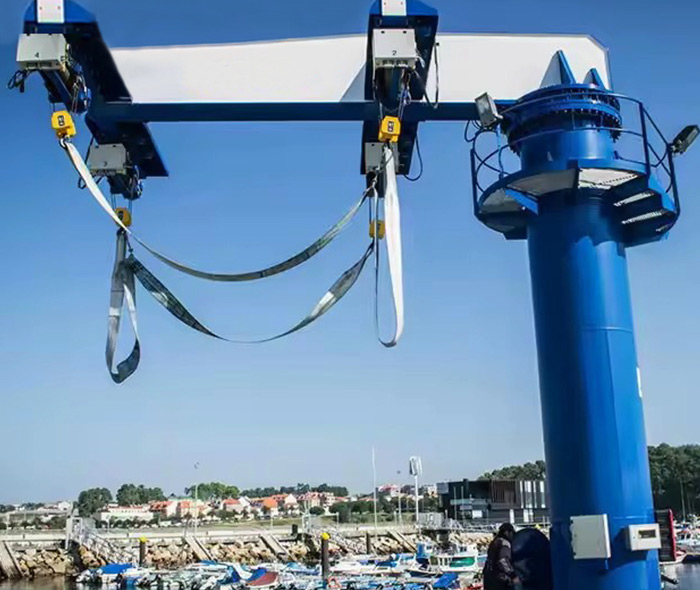

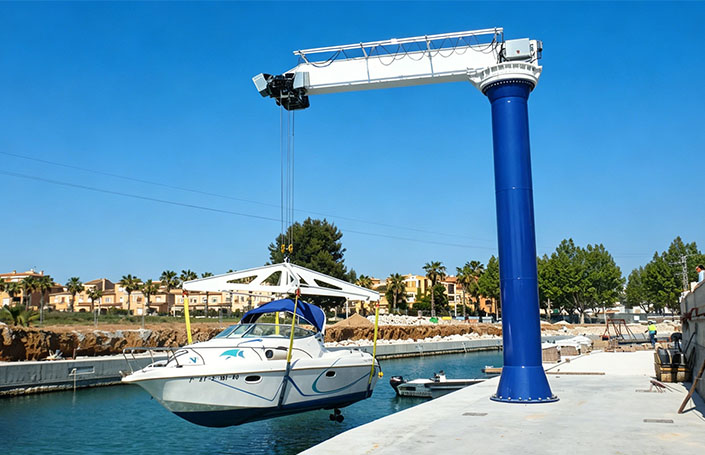

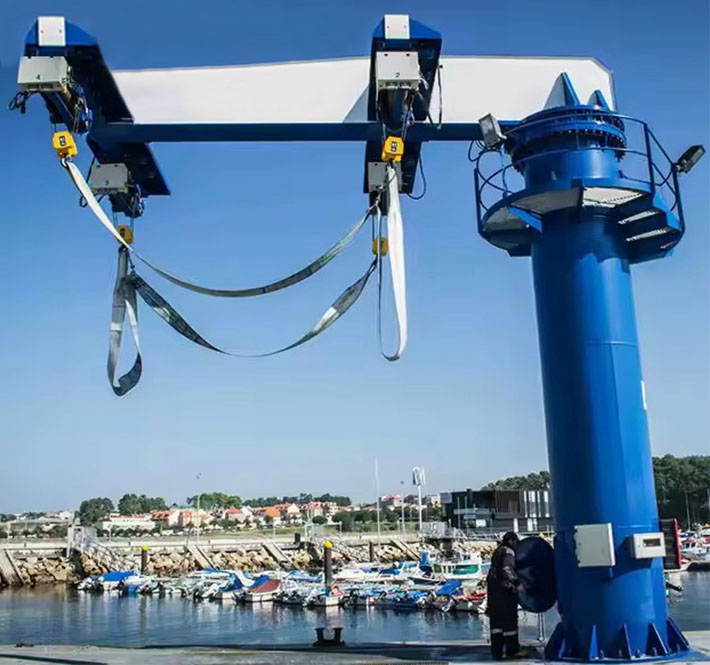

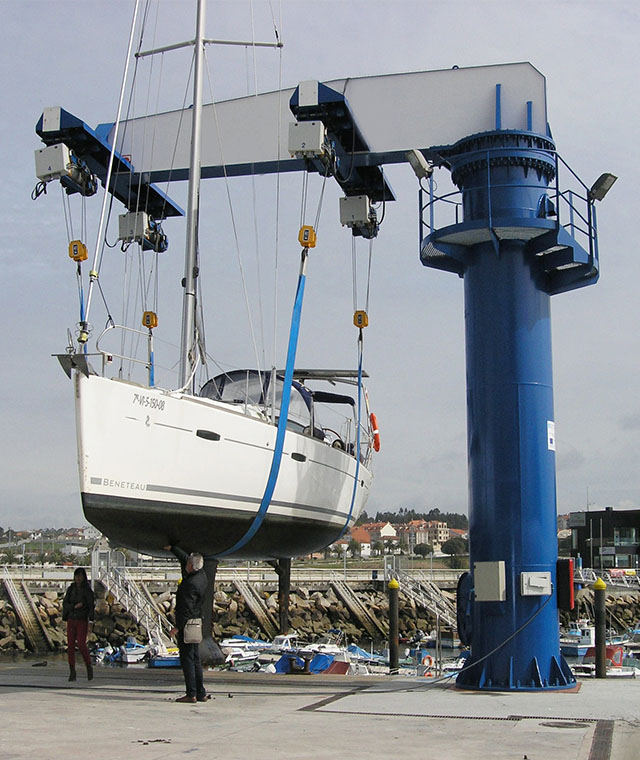

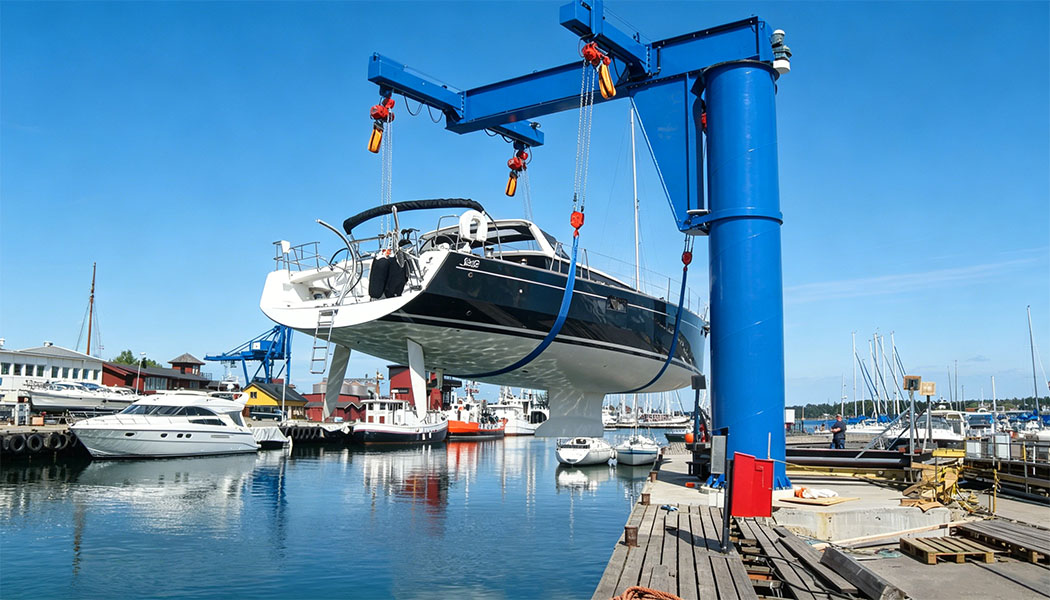

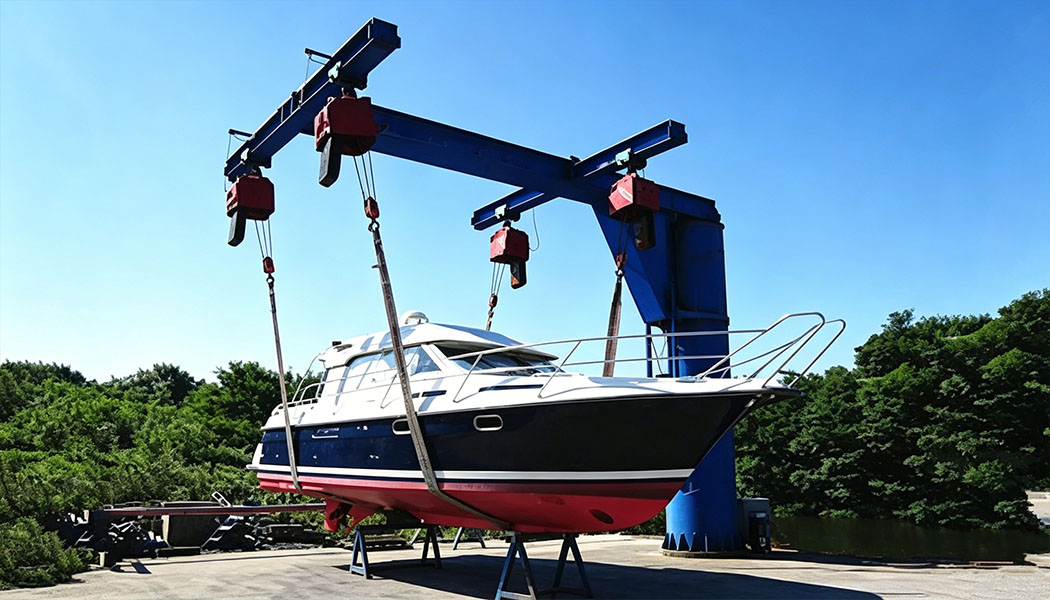

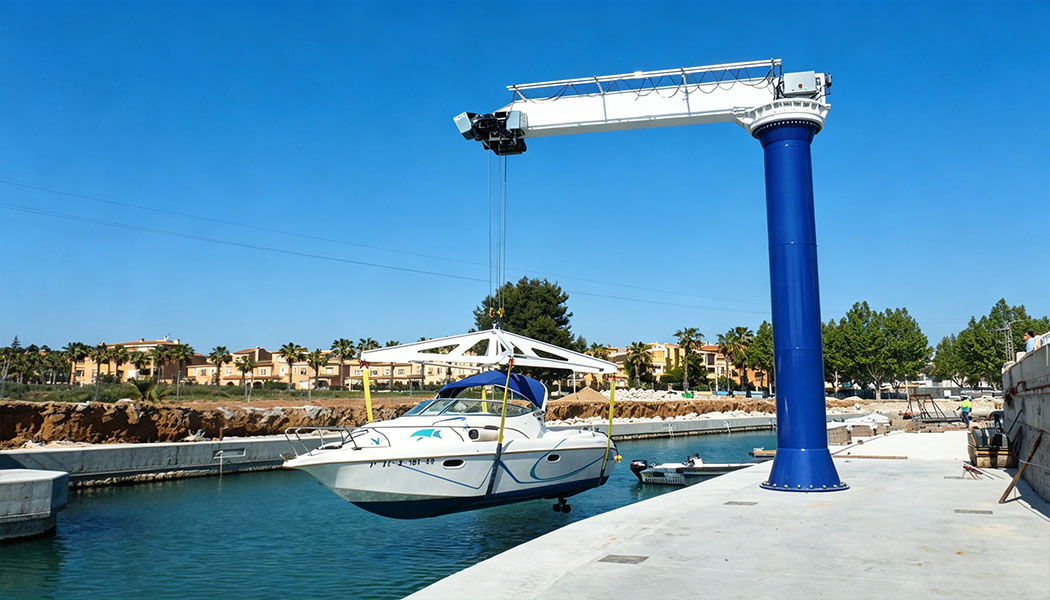

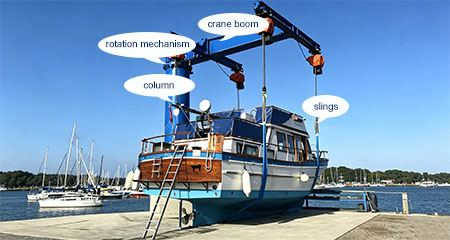

The boat jib crane is primarily utilized for lifting ships ashore and launching them, including the column, rotary arm, drive device, and electric hoist, and its customizable tonnage ranges from 3 tons to 50 tons. That is ideal choice for you to lift small-tonnage vessels.
The marine boat jib crane has the ability to rotate 360 degrees, and its working range can extend up to 10 meters. The crane boasts the advantages of being lightweight, economical, and durable for your plan.
| Capacity | 15t | 20t | 30t | 40t | 50t |
| Rotation | 360°/request | 360°/request | 360°/request | 360°/request | 360°/request |
| Crane boom length | 7.5m | 8.2m | 9.1m | 10m | 11.3m |
| Sling adjustment | 2.6-4 | 2.8-4.5 | 3.5-5 | 3.2-5.5 | 3.3-5.8 |
| Lifting speed | 1-3.5m/min | 1-3.5m/min | 1-3.5m/min | 1-3.5m/min | 1-3.5m/min |
| Rotation speed | 0.2rpm | 0.2rpm | 0.22rpm | 0.3rpm | 0.35rpm |
| power | 400v，40A | 400v，60A | 400v，63A | 400v，63A | 400v，63A |
| Control system | remote | remote | remote | remote | remote |
You need give us the following parameters:
The boat jib crane features a simple jib structure and takes up little space, works with a fixed range. Generally, the lifting capacity of a cantilever boat jib crane is below 50 tons, and it is not intended for ship transportation. Nevertheless, it is more cost-efficient.

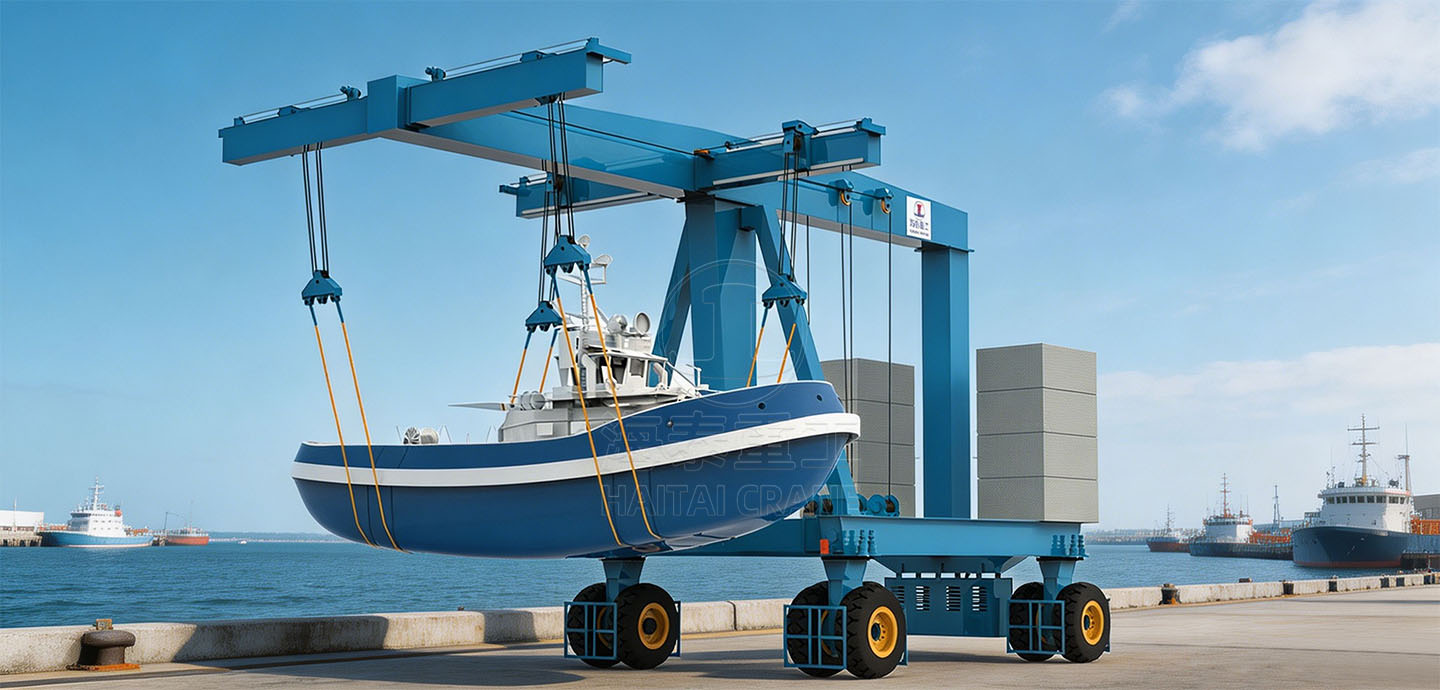

On the other hand, the travel lift has a stable structure and a larger lifting capacity, varying from 20 tons to 1500 tons. That enables it to be suitable for transporting ships over long distances. The travel lift has a broader range of applications, yet its price is higher than that of the marine boat jib crane.
The delivery cycle typically takes 60 to 80 days, including 20 days for factory commissioning tests. We adhere to strict production and testing standards to ensure high-quality products for you.
Yes, we will send you the product video for your reference
The marine boat jib crane & its parts are guaranteed for 12 months from the B/L date.
Within 12 months warranty period, the free parts are provided (excludes man-made damage).
There are two ways:
a. Remote online guidance for free at any time.
We provide online remote guidance through video tools to guide the on-site assembly and commissioning of the boat jib crane, and we answer relevant questions for you.
b. On-site guidance for you
Haitai Crane will send engineers to customer’s site to guide the installation and commissioning. The cost details will be list in our quotation.
It is necessary that we provide full set guidance documents such as installation plan, electrical drawing, hydraulic drawing, operation manual and so on.
