1-1200Ton Gantry Crane | Custom Industrial Lifting Equipment

What is a Gantry Crane?

A gantry crane refers to a broad category of products rather than a single specific one. There are multiple types of gantry cranes, among which the most commonly seen are single-beam and double-beam gantry cranes, shipbuilding gantry cranes, rubber-tired gantry cranes, hatch cover gantry cranes, container gantry cranes, and rail-mounted gantry cranes. Moreover, the appearances of these different gantry cranes can vary considerably.

The gantry crane plays a vital role in the manufacturing industry and makes significant contributions to material handling. We are a professional gantry crane manufacturer with over 13 years of experience, catering to customers in more than 60 countries across the globe. Our company has obtained numerous qualifications and certifications, thus winning the trust of many clients. Should you be interested in purchasing a gantry crane, please feel free to contact us. We will customize the most suitable gantry crane to meet your specific requirements.

Gantry Crane Types We Supply

Shipbuilding Gantry Crane

Customized Capacity: 30-900t
Span: 20-160m
Lifting Height: 10-95m
Lifting Speed: 0.5-5m/min
Travelling Speed: 2-30m/min

Chat Now

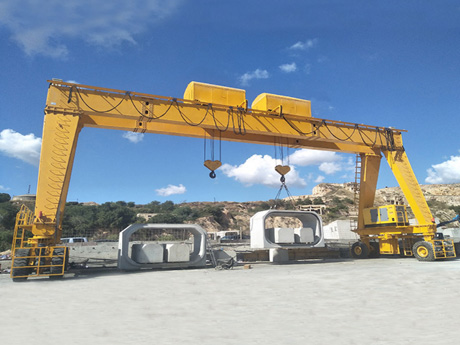

Rubber Tyre Gantry Crane

Capacity: 10-900 tons
Span: 5-50m
Lifting Height: 5-30m
Lifting Speed: 0-4m/min
Crane Speed: 0-60m/min

Chat Now

Single Girder Gantry Crane

Capacity: 1-30t
Span Length: 3-35m
Lifting Height: 6-20m
Work Duty: A3, A4, A5
Crane Control Mode: wireless remote control, cabin control

Chat Now

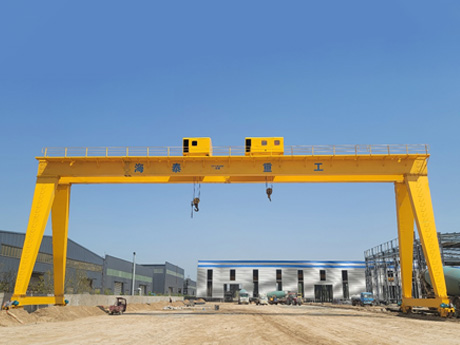

Double Girder Gantry Crane

Capacity: 10-1000t
Span Length: 18-35m
Lifting Height: 6-18m
Work Duty: A3-A7
Crane Control Mode: wireless remote control, cabin control

Chat Now

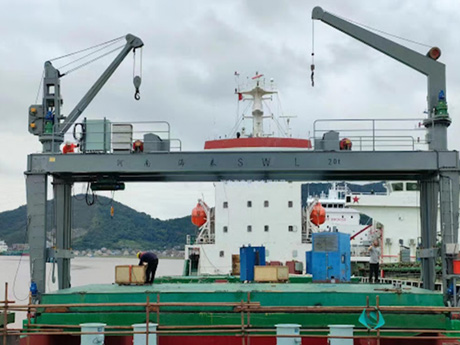

Hatch Cover Gantry Crane

Customized Capacity: 10-40t
Span: 10-35m
Height: 2-10m

Chat Now

Specification

Technical Parameter of Gantry Cranes
Types	Portable Gantry Crane	Hatch Cover Gantry Crane	Single Girder Gantry Crane	Double Girder Gantry Crane	Shipbuilding Gantry Crane	Rubber Tyred Gantry Crane	Travel Lift
Capacity (t)	0.5-15	3-35	5-100	5-600	30-900	10-900t	30-1200
Span (m)	2-15	10-35	5-40	5-60	10-60	5-45m	5-30
Lifting Height (m)	1-5	1-8	5-15	5-30	5-50	5-15	5-15
Lifting Speed (m/min)	0.9		0.9	0.9	0.7	0.7	3.5
Trolley Speed (m/min)	0-6		0-6	0-5	0-5	0-6	0-9
Crane Speed (m/min)	0-9		0-9	0-9	0-9	0-9	28

Project Solutions for Our Clients

Haitai Heavy Industry is committed to providing high-quality, high-performance marine crane and cost-effective lifting solutions for global customers. Our marine cranes are widely used in construction, mines, ports, energy and other fields. With technological innovation and strict quality management system, Haitai Heavy Industry has always adhered to the concept of "safety, efficiency and environmental protection", and injected a steady stream of power for the development of the industry. Choose Haitai Heavy Industry to help your project steadily advance towards a successful future!

Certifications We Offer

Our gantry cranes meet international standards and have obtained a number of certificates such as CE, CCS, ABS, BV and others.

High quality gantry crane manufacturer selected for you

Your needs, we customize --- submit a quote, create your own gantry crane solution,

Customized

Video

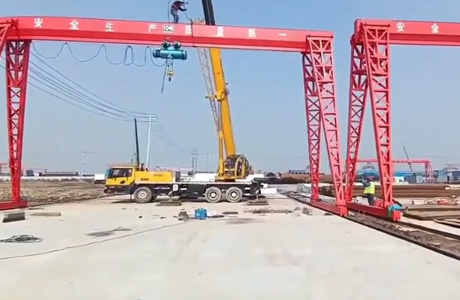

Single Girder Gantry Crane Installation

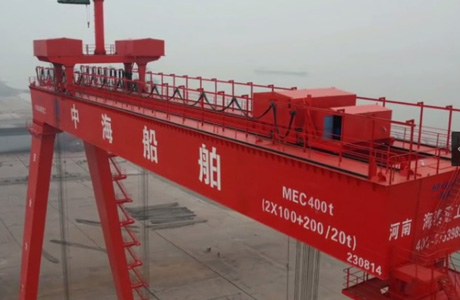

400T Shipbuilding Gantry Crane

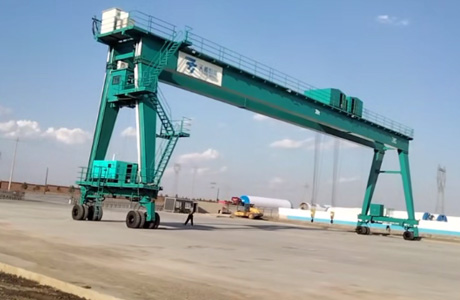

Rubber Tyred Gantry Crane Site Commissioning

Application

Gantry crane is widely used in various industries, helping to solve numerous problems for people and shortening the product manufacturing process. If you're interested in it, feel free to reach out for more information!

Indoor Workshop

Steelmaking Industry

Port Logistics

Shipbuilding Industry

Other Material Handling

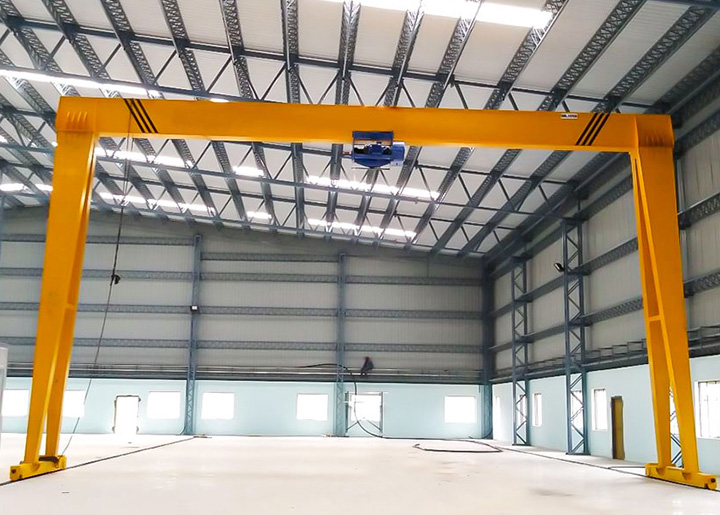

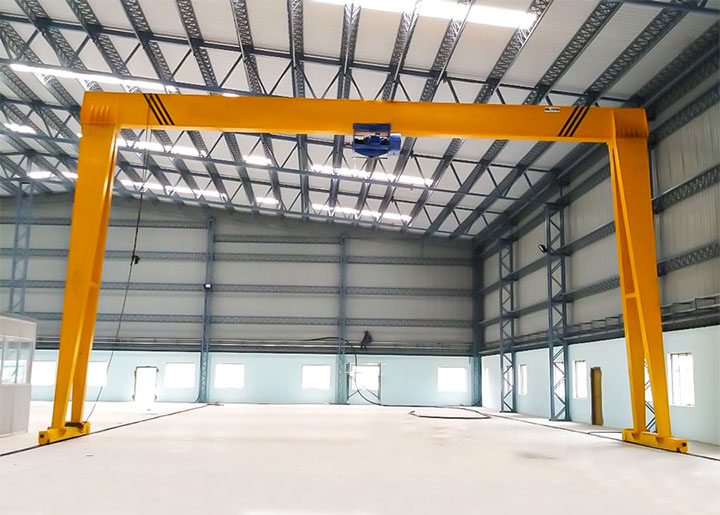

Indoor Workshop

The gantry crane applied in workshops usually has a tonnage ranging from 1 to 20 tons. It is frequently used for lifting mechanical parts, pallets, packing cases as well as raw materials.

CLICK TO SEE MORE

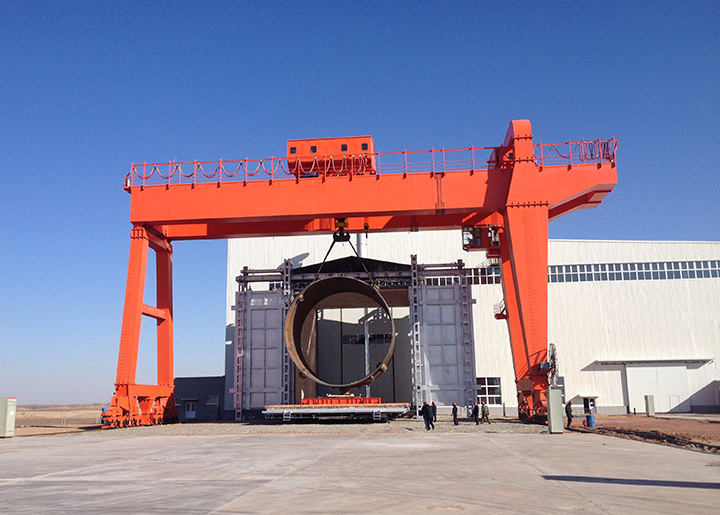

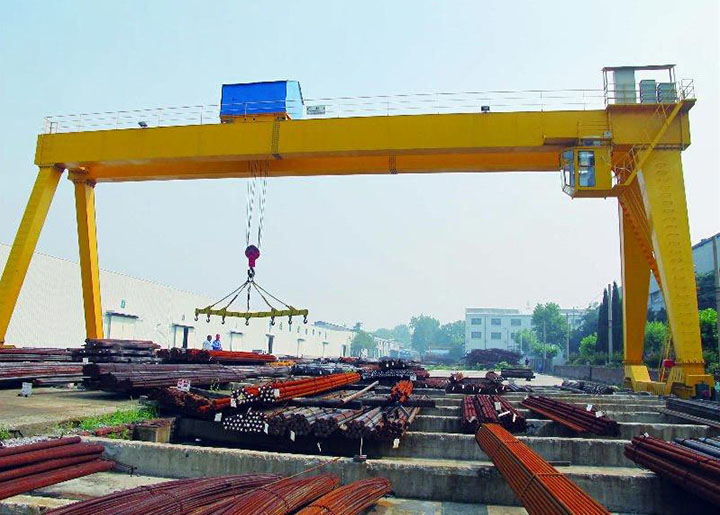

Steelmaking Industry

In the large steel manufacturing industry, the gantry crane often plays a prominent role. Heavy steel materials are frequently piled up in the factory yard, and the gantry crane is employed to lift, store and handle these materials. It can effortlessly lift the steel and load it onto trucks for transportation.

CLICK TO SEE MORE

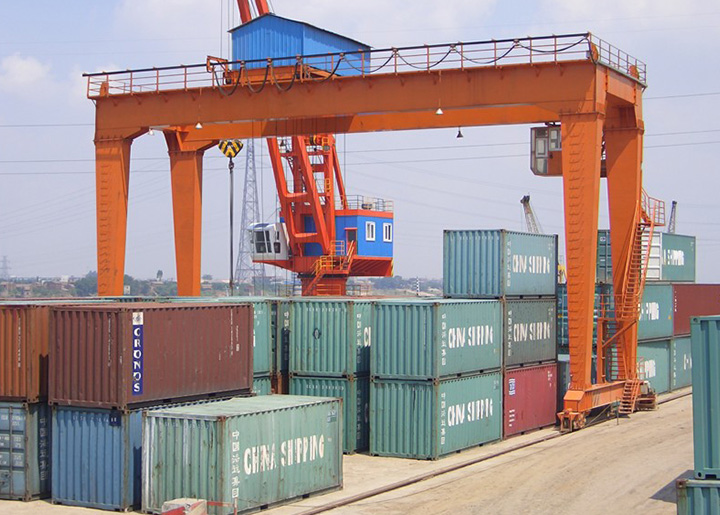

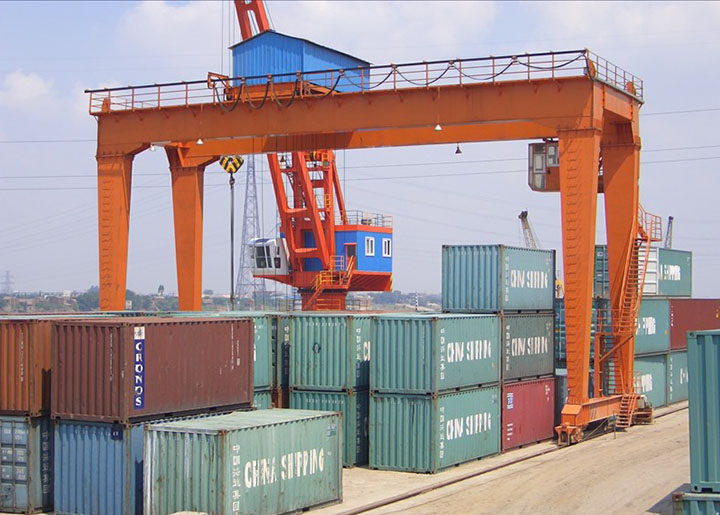

Port Logistics

There are diverse types of goods in dock logistics. The most common ones include containers, machinery equipment, building materials and bulk goods. Gantry cranes are highly effective in accomplishing lifting tasks.

CLICK TO SEE MORE

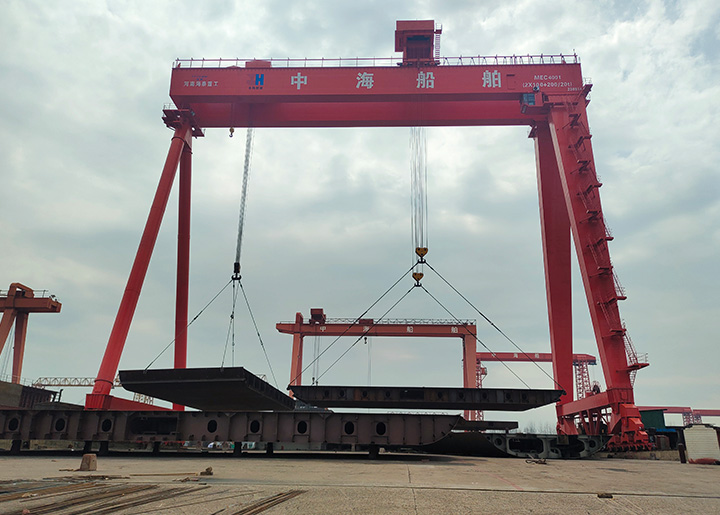

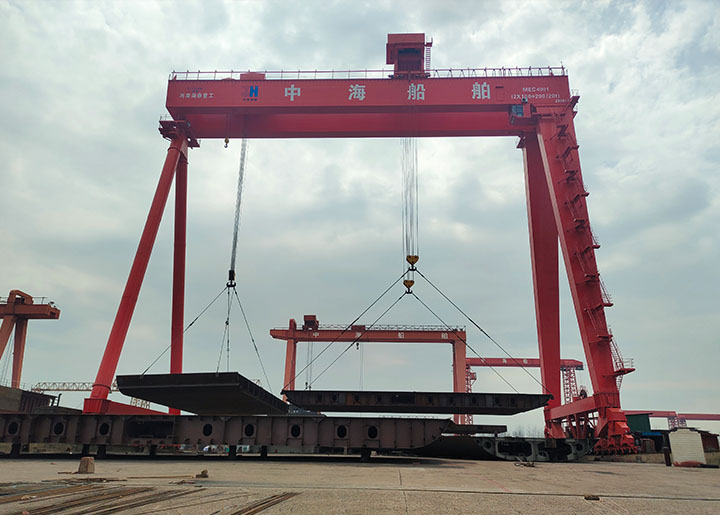

Shipbuilding Industry

In shipbuilding, gantry cranes are often utilized as they can lift weights ranging from tens to hundreds of tons. In the shipbuilding industry, gantry cranes mainly play a role in lifting a variety of heavy components and materials required for hull construction, maintenance as well as transportation.

CLICK TO SEE MORE

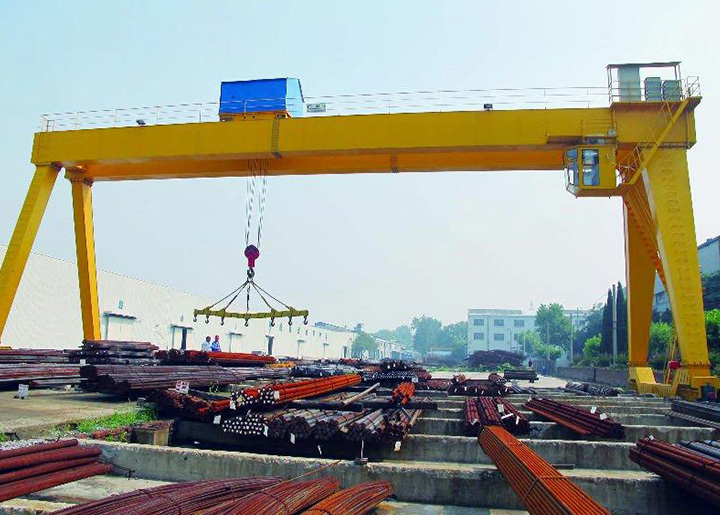

Other Material Handling

The gantry crane can be used in various industries, including mining, quarrying, wood handling, municipal engineering, and housing construction.

CLICK TO SEE MORE

Advantages of Haitai Gantry Crane

High-quality Manufacturing Process

Haitai adopts advanced technology and high-quality raw materials to ensure that each gantry crane has high performance and a long service life.

Customized Design

We provide customized solutions based on customer demands, with flexible designs to meet the needs of different fields and working environments.

High Safety Performance

Haitai strictly adheres to international safety standards and is equipped with multiple safety protection systems, such as overload protection, limit switches, and anti-collision devices.

Efficient After-sales Service

We provide installation, commissioning, operation training, as well as regular maintenance and repair services for the equipment to ensure its long-term efficient operation.

Energy Conservation and Environmental Protection

The gantry crane adopts energy-saving design and high-efficiency motors, reducing energy consumption and meeting modern environmental protection standards.

Technological Innovation

Haitai continuously conducts technological research and development, innovative design and intelligent transformation to enhance the utilization efficiency and operational convenience of its equipment.

High Cost Performance

Under the premise of ensuring quality, we offer competitive prices to help customers reduce their overall procurement costs.

Gantry Crane Price: The Factors You Need to Know

The price of gantry cranes is influenced by a variety of factors, including their structural type (single girder or double girder), lifting capacity, lifting height, working environment, materials used, control system and safety configuration, etc. In addition, brand reputation, production techniques, transportation and installation costs, fluctuations in market demand, and environmental protection requirements also play a crucial role in price formation. When choosing a suitable gantry crane, one should not only consider the price but also pay attention to its performance, quality and after-sales service to ensure high efficiency and safety in long-term use.

The Types and Structures of Gantry Cranes

Single Girder Gantry Crane VS. Double Girder Gantry Crane:

The double-girder structure is usually more expensive due to its stronger load-bearing capacity and wider application range.

Customized Design:

If customers need to customize the size, function or configuration of the crane according to specific requirements, the price will also increase.

Lifting Capacity and Working Range

Lifting Capacity:

The greater the load capacity, the more complex the materials and structures used will be, and the price will also be correspondingly higher.

Lifting Height and Span:

The greater the lifting height and span, the more robust the structure needs to be, and the price will also increase accordingly.

Materials and Processes

The Materials Used:

High-strength steel and wear-resistant materials will increase manufacturing costs, thereby affecting prices.

Manufacturing Process:

The complexity and quality of processes such as precision machining, high-quality welding and surface treatment will directly affect the price.

Electrical System and Control System

Control System:

If traditional manual or simple electrical control systems are adopted, the price is relatively low. This kind of system usually requires manual operation and is suitable for simple lifting operations. If equipped with more advanced control systems, such as PLC, wireless remote control, etc. The intelligent control system can enhance the working efficiency, accuracy and safety of cranes, and the price will naturally be higher.

Brand and Configuration:

The brand and technical level differences of electrical components (such as frequency converters, control cabinets, etc.) will also directly affect the price.

Safety Performance

Safety Protection Devices:

The configuration of multiple safety devices such as overload protection, anti-collision systems, and limit switches will affect the overall price.

Compliance with Standards:

Meeting international standards (such as CE, ISO, etc.) or special safety certification requirements will cause the price to increase.

Transportation and Installation

Transportation Distance and Method:

If the customer is far from the production plant, the transportation cost and installation cost will increase relatively, leading to an overall price rise.

Installation Complexity:

When the installation environment is complex, special equipment or technical support is required, the cost will also increase.

The Reputation of the Brand and Manufacturer

Brand Influence:

Well-known brands usually offer higher quality assurance and services, but at relatively higher prices.

After-sales Service and Warranty Period:

A long-term warranty and comprehensive after-sales service are also part of the price.

Market Demand and Supply Chain Conditions

Market Demand Fluctuations:

If the demand is large or raw materials are in short supply, prices may rise.

Supply Chain Stability:

The relationship between material procurement and suppliers, as well as the global economic situation, may also affect prices.

Manufacturing Location and Labor Costs

Production Region:

Labor costs, production efficiency, and local tax policies in different regions all affect prices.

Production Batch:

When purchasing in large quantities, the price of a single piece of equipment may be relatively lower.

Environmental Protection and Energy Conservation Requirements

Energy-saving Design

Energy-saving designs adopted to reduce energy consumption and enhance efficiency, such as the use of high-efficiency motors and control systems, may lead to an increase in equipment prices.

Environmental Protection Standards:

Meeting specific environmental protection requirements, such as reducing noise and emissions, may also increase costs.

The price of gantry cranes is influenced by multiple factors. When making a choice, a comprehensive consideration should be given based on actual needs, budget and long-term usage value. If there are more detailed requirements, you can further communicate with the supplier for quotations based on these factors.

Customize Your Lifting Solutions

Please refer to the following tips

1. The product you need:

2. What will the product be used for:

3.Product specs: (lifting capacity, span, lifting height)

4.Project introduction: (project working site, project stage, etc)

Tips: After you submit the quotation, our sales will contact you in the first time to provide professional answers and further support, provide you with the best solution, and ensure timely follow-up. or send us an email viainfo@haitaicrane.com .

FAQ

What is the load-bearing capacity of the gantry crane?

The load-bearing capacity of gantry cranes is usually customized according to the customer's requirements. Common load-bearing capacities range from 1 ton to 100 tons, but larger or smaller load-bearing capacities can also be designed according to actual requirements. The selection of load-bearing capacity needs to take into account the working environment and the required hoisting weight.

Is the gantry crane suitable for outdoor use?

Yes, gantry cranes are often used for outdoor operations, especially in construction sites, docks, warehouses and other places. For outdoor use, gantry cranes need to have features such as wind and rain resistance, and the electrical system and control system usually need to be equipped with protective measures to ensure the stable operation of the equipment in harsh environments.

Does the working environment of a gantry crane have an impact on the equipment?

Yes, the working environment of the gantry crane will affect the selection of equipment. For instance, cranes made of special materials or treated for anti-corrosion are required in harsh environments such as high or low temperatures, humidity or corrosive conditions. In addition, working conditions (such as frequent lifting or long-term continuous operation) also require the selection of an appropriate electrical system and structure based on the load requirements.

How can the safety of gantry cranes be guaranteed?

Gantry cranes are usually equipped with multiple safety devices, such as overload protection, limit switches, anti-collision systems, emergency stop buttons, etc. In addition, the electrical system will integrate multiple safety protection functions, such as short-circuit protection, overload protection, grounding protection, etc., to ensure the safe operation of the equipment under any working conditions.

Is the maintenance and upkeep of gantry cranes complicated?

The maintenance of gantry cranes is relatively simple, but regular inspection and upkeep are required. Common maintenance work includes lubrication, inspection of the electrical system, inspection of the mechanical parts of the crane (such as steel wire ropes, hooks, etc.), cleaning of the control system and inspection of safety devices. It is recommended to conduct regular inspections based on usage frequency and working environment to maintain the best working condition of the equipment.

How to determine the appropriate model of gantry crane?

When choosing the appropriate model of gantry crane, multiple factors need to be considered, including the working environment, lifting capacity, lifting height, span, frequency of use, and special requirements (such as anti-corrosion, wind resistance, etc.). It is best to communicate in detail with the manufacturer or supplier before purchasing, providing work requirements and conditions to help select the most suitable model.

How long is the service life of a gantry crane?

The service life of a gantry crane generally depends on its design, materials, frequency of use and maintenance conditions. Under normal circumstances, if used properly and maintained regularly, the service life of a gantry crane can reach 20 years or even longer.

How long does it take to install a gantry crane?

The installation time of a gantry crane depends on its scale and complexity. Under normal circumstances, the installation of a standard model may take several days to a week. For custom models or large equipment, the installation time may be longer. During the installation process, we will dispatch technicians for guidance and commissioning.

Does the gantry crane comply with national or international standards?

Yes, all of our gantry cranes comply with national or international standards such as ISO and CE. We provide relevant certifications and test reports to ensure that the equipment meets quality and safety requirements.

How to deal with faults or problems of gantry cranes?

If the gantry crane malfunctions, it is recommended to stop using it immediately and contact our after-sales service team for inspection and repair. We offer regular maintenance services and troubleshooting.
