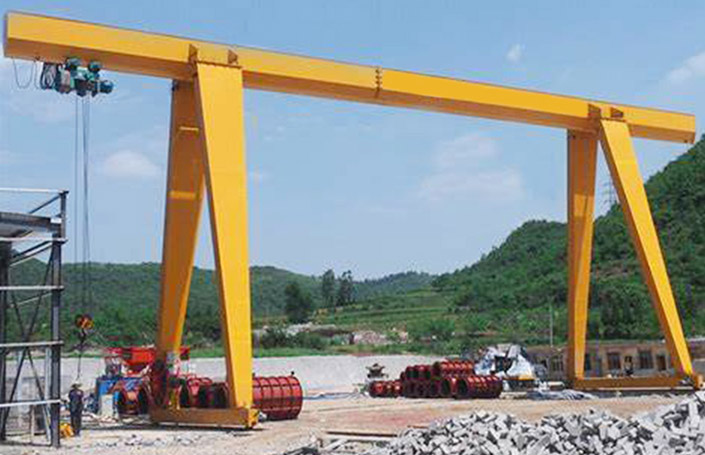

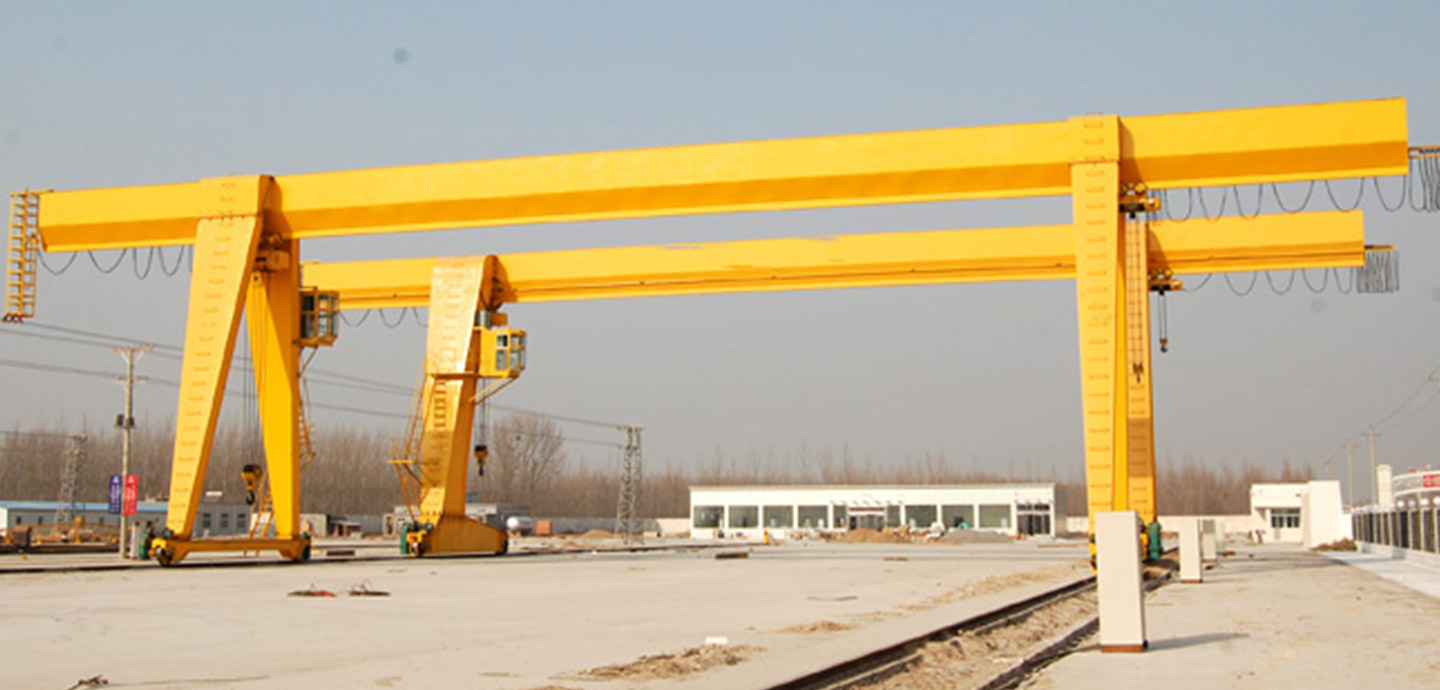

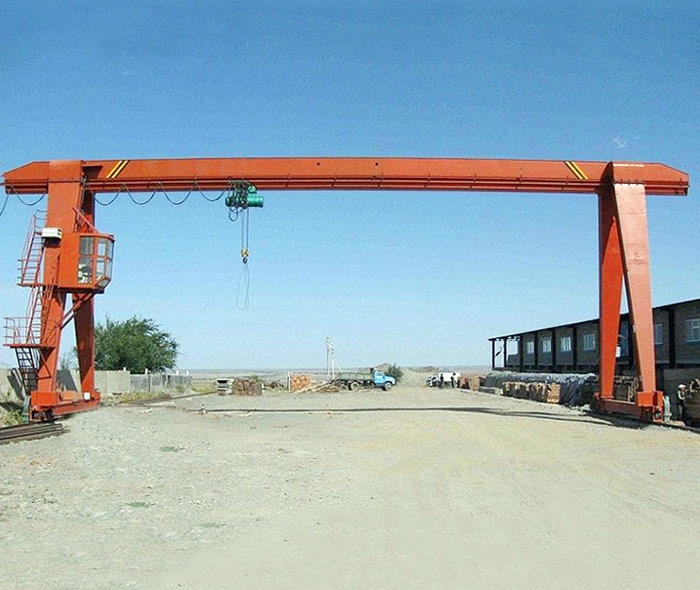

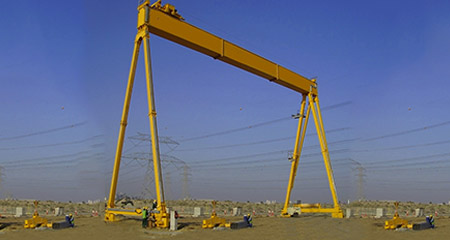

Single girder gantry crane is a commonly used to material lifting equipment, which features a single horizontal girder and supported by vertical legs. When it is working, it runs along the tracks or the railway system.
That is a cost-effective and efficient lifting solution for small tonnage within 30ton, designed for stability and durability. Our gantry crane ensures smooth operation and high performance.
| Technical Parameter of Single Girder Gantry Crane | ||||||
| Capacity (t) | 3 | 5 | 10 | 16 | 20 | 32 |
| Span (m) | 5~35 or customized | 5~35 or customized | 5~35 or customized | 5~35 or customized | 5~35or customized | 5~35or customized |
| Lifting Height (m) | 6~30 or customized | 6~30 or customized | 6~30 or customized | 6~30 or customized | 6~30 or customized | 6~24 or customized |
| Lifting Speed (m/min) | 0.8 | 0.8 | 0.7 | 0.42 | 0.42 | 0.3 |
| Trolley Speed (m/min) | 20 | 20 | 20 | 18 | 14 | 16 |
| Crane Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 |
| Work Duty | A3-A4 | A3-A4 | A3-A4 | A3-A4 | A3-A4 | A3-A4 |
| Track Type | P24 | P24/P30 | P24/P30 | P24/P30/P38 | P30/P38 | P30/P38 |
You should provide the load capacity, lifting height, span, etc. If you can share more project details, it’s will better for us to provide the design and offer soon.

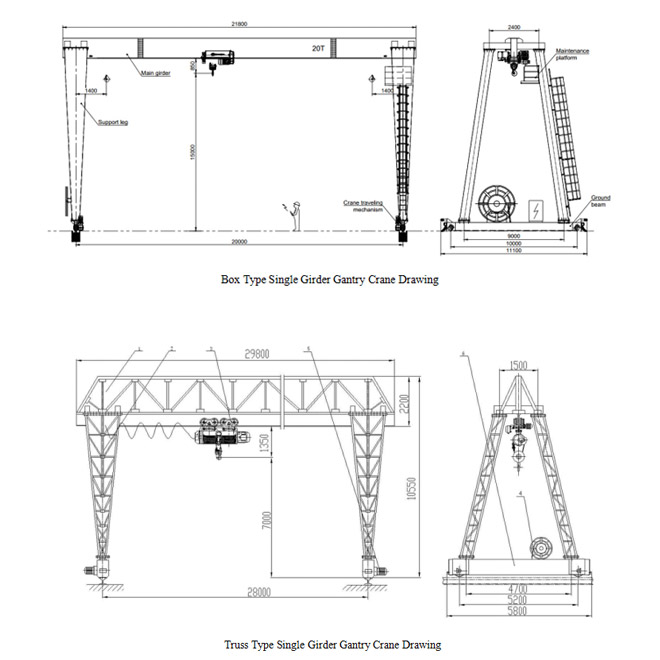

First of all, from the structure, we can supply the single girder gantry crane, double girder gantry crane, and truss type gantry crane, box girder gantry crane.
Second, if take the configuration into consideration, we can supply you the European type gantry crane, and China brand gantry crane.
Normally, we will provide the most appropriate gantry crane solutions and quotations according to the customer’s technical requirements, use site, and budget, etc.
Generally, for capacities under 10 tons, we recommend single-girder gantry cranes, which are more economical and practical. If you have higher performance requirements for gantry cranes, such as higher speed, double-girder gantry cranes are better.
Different technical requirements, different prices.
It depends on the site situation, such as how many workers will attend to the installation work? How many hours the site workers work per day? Under normal circumstances, 15 days is okay for finishing one set installation.
Yes, we will send engineers to guide the crane installation, commissioning, and training, either online or on-site.
Yes, we had provided customers with numerous of European gantry cranes. Our European-type gantry crane has been exported to 20 countries.
Standard Export Package. All the parts will be delivered by containers and the electrical parts will in packed into wooden box.
All the crane and parts are guaranteed for 12 months from the B/L date.
Rail length will be decided according to your travelling length. The rail type will be decided according to the weight of gantry crane and lifting cargo. Don’t worry, after our design for you, we will list our rail type in our drawing for you.
Generally, it’s 380V, 50Hz, 3 Phases. You can inform us your local industrial voltage and we can customize for you.
According to different lifting material, we can provide different spreader, such as lifting beam, hook, grab and so on.
We can provide Pendant Control, Cabin Control or Remote Control. You can choose what you need.
We can also customize for you according to RAL color card. And if you need, we can put your logo on the gantry crane.
